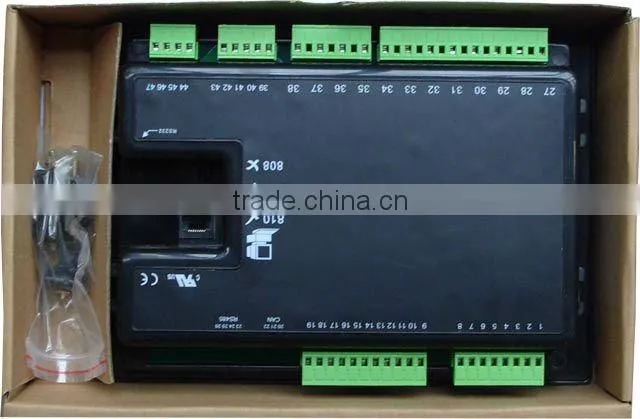

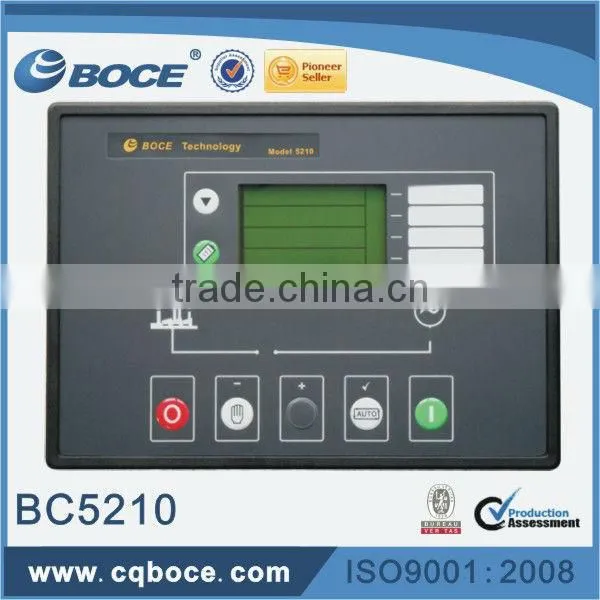

Generator Controller Board 5210
The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.
Main features:
micro-computer control;
automatically activated, the shutdown;
real-time display unit operating status and parameters;
visualization of the police state of graphics and logo;
quick information display unit;
LED and LCD alarm instructions;
Programmable relay output for a variety of models
Control features:
emergency parking control
automatic car plate
start delay control
local manually start / shutdown
remote automatic start / shutdown
start the motor from the automatic control
pre-warm, pre-controlled oil
Heating machine,Speeding up or down,Idle / Run Control
cold machine, Parking for electricity
ATS switch control
Protection:
lubricants to protect lower
charger fail rechargeable
emergency generating units down
generating units of public alarm
Over-voltage generators, pressure for a long time, and overload protection
high cooling water temperature protection
engine overspeed protection
failure of the engine shutdown
start the engine failure
Display data:
Speed of Generator
Battery Voltage
Oil Pressure of Engine
Water Temperature of Engine
generating unit output frequency of exchange
Operating Time of Generator Set
Load-phase AC current
Exchange phase Voltage
Alarm instructions:
stability in the light of public alarm, indicating the red;
public warning lights flashing red display, said there is fault shutdown.
Allocation method:
controller through the front panel configuration parameters.
The installation of opening size:
220*160mm
| Name | Model No |
| Generator controller | GC30D |
| Generator controller | BC118 |
| Generator controller | BC168 |
| Generator controller | BC180 |
| Generator controller | DC20D |
| Generator controller | DC40D |
| Generator controller | BC501K |
| Generator controller | BC520A |
| Generator controller | BC3000 |
| Generator controller | BC5110 |
| Generator controller | BC5110- |
| Generator controller | BC5120 |
| Generator controller | BC5210 |
| Generator controller | BC5220 |
| Generator controller | BC701MS |
| Generator controller | BC701K-AS |
| Generator controller | BC702MS-HC |
| Generator controller | BC702AS-HC |
| Generator controller | BC703 |
| Generator controller | BC704 |
| Generator controller | BC705 |
| Generator controller | BC710 |
| Generator controller | BC720 |
| USB | P810 |
| Step Speed controller | ESM3012 |
| Actuator | ASM5676 |
| Actuator | ASM5654 |
| Engine Control Box | BX341 |
| Engine Control Box | BX40 |
| Generator set Control Box | BX5XXX ORIGINAL VERSION |
| Engine interface card | EIM630-465/466 |
