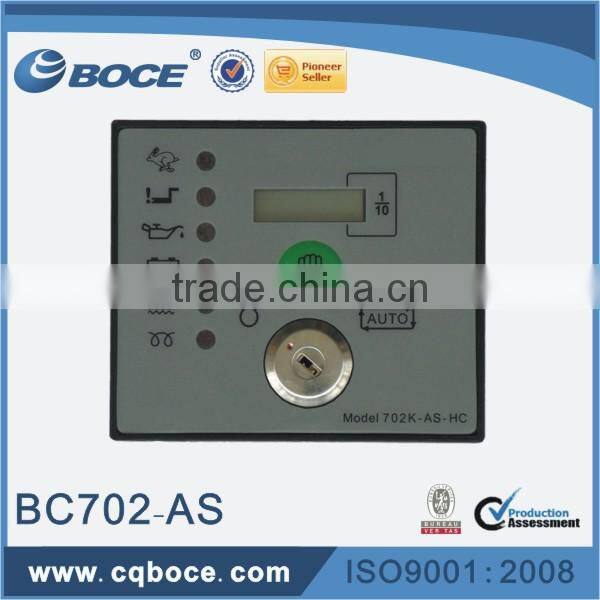

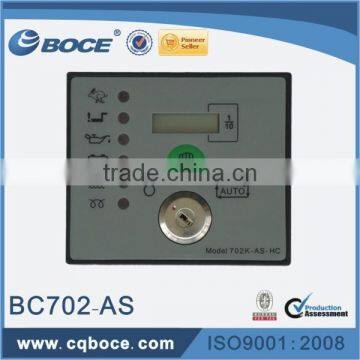

electronic controller 702 AS
electronic controller 702 AS
Brief Introduction:

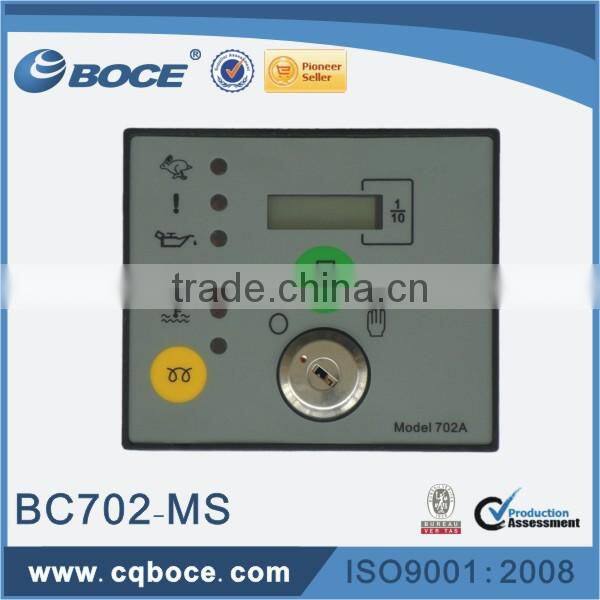

The Model 702 is a Manual Engine Control Module designed to control the engine via a key switch and pushbuttons on the front panel. The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the engine failure by LED, giving true, first-up fault annunciation.
SPECIFICATION :
DC Supply:
8 to 35 V Continuous.
Cranking Dropouts:
Able to survive voltage dips during cranking. This is achieved without the need for internal batteries.
Alternator Input Range:
15 - 305 V AC RMS (+20%)
Alternator Input Frequency:
50 - 60 Hz at rated engine speed.(Minimum 75V AC)
Overspeed: nominal frequency +14%(+24% Overshoot)
Start Output:
Solid State 1.2A negative grounding terminal
Run Output:
Solid State 1.2A negative grounding terminal
Pre-heat Output:
Solid State1.2A negative grounding terminal
Dimensions:
72mm X 72mm X 38mm
(2.83” x 2.83” x 2.5”) (Excluding Keyswitch) Cut-out 68mm x 68mm (2.68” x 2.68”)
Operating Temperature Range: -30 to +70°C
Installation:
Front panel mounting via suitable cutout.Retaining clips supplied. Cable connections via screw clamp typeterminals
Calibration:
Speed trip setting switch accessible from rear of module.
Gross Weight: 0.3kg
We provide other models of generator controllers:
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-DS(PC) |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC) |
| 23 | Generator controller | BC720(PC) |
