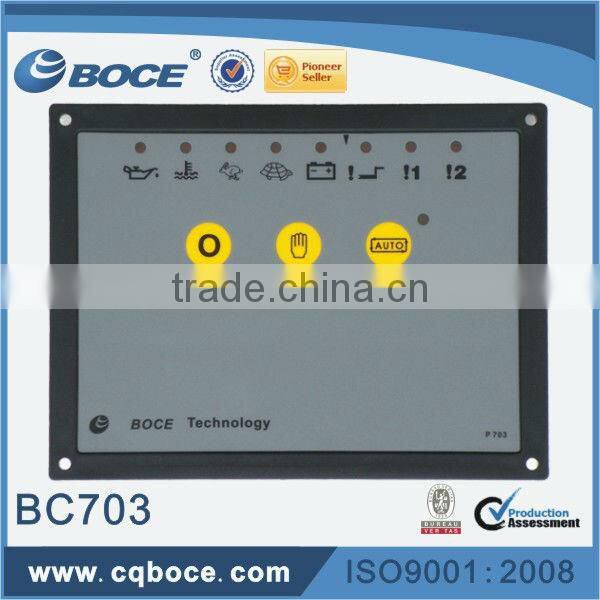

Electrical Generator Controller 703
Electrical Generator Controller 703
1.Main Features:
Automatic shutdown when fault conditions are detected
Manual start
Engine pre-heat
Engine monitoring and protection features
Protected solid state (PSS) outputs
Front panel mounting
Front panel programming
Remote start
LED indicators
Configurable timers
Configurable outputs
2.Benefits:
Transfers between mains (utility) and generator power
On-site module configuration to match user requirements
Multiple engine parameters are monitored simultaneously
3.Specifications:
DC Supply: |
8 Volts to 35 Volts DC Continuous. |
Cranking Dropouts: |
Able to survive 0 Volts for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 Volts. This is achieved without the need for internal batteries. |
Max. Current: |
Operating 50mA |
|
Standby 10mA |
Alternator Input Range: |
75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%) |
Alternator Input Frequency: |
50 - 60 Hz at rated engine speed (Minimum: 75V AC Ph-N) (Crank Disconnect from 15V Ph-N @ 20Hz) |
Overspeed +14% (+24% overshoot) | |
Underspeed –20% | |
Start Output: |
1.2 Amp DC at supply voltage. |
Fuel Output: |
1.2 Amp DC at supply voltage. |
Auxiliary Outputs: |
1.2 Amp DC at supply voltage. |
Dimensions: |
125mm x 165mm x 28 mm |
Charge Fail: |
12 Volts = 8 Volts CF 24 Volts = 16 Volts CF |
Operating Temperature Range: |
-30 °C to + 70°C |
Applicable Standards: |
Compliant with BS EN 60950 Low Voltage Directive |
Compliant with BS EN 50081-2: 1992 EMC Directive | |
Compliant with BS EN 61000-6-4: 2000 EMC Directive |
We provide other models of generator controllers:
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-DS(PC) |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC) |
| 23 | Generator controller | BC720(PC) |
