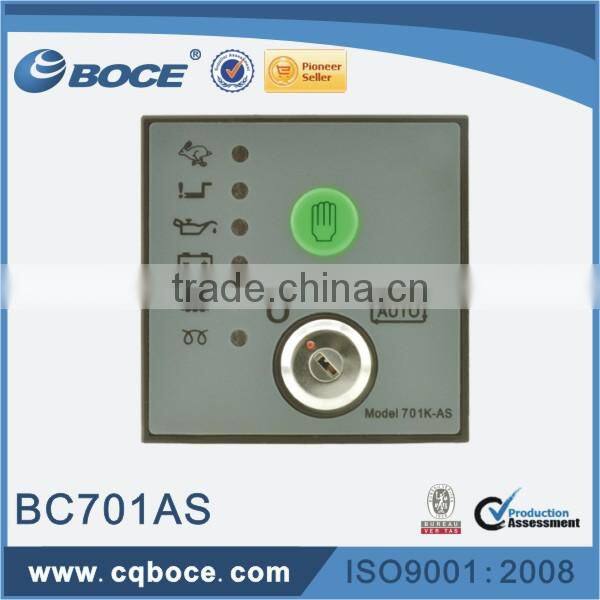

Generator Controller 701AS
Application Range of 701
1, It is used for Diesel,Gas Generator set which are started by battery charger.
2, Power Range: 10KW above
SPECIFICATION :
DC Supply: 8 to 35 V Continuous.
Cranking Dropouts: Able to survive voltage dips during cranking. This is achieved without the need for internal batteries.
Alternator Input Range: 15 - 305 V AC RMS (+20%)
Alternator Input Frequency: 50 - 60 Hz at rated engine speed.(Minimum 75V AC) Overspeed: nominal frequency +14%(+24% Overshoot)
Start Output: Solid State 1.2A negative grounding terminal
Run Output: Solid State 1.2A negative grounding terminal
Pre-heat Output: Solid State1.2A negative grounding terminal
Dimensions: 72mm X 72mm X 38mm (2.83” x 2.83” x 2.5”) (Excluding Keyswitch) Cut-out 68mm x 68mm (2.68” x 2.68”)
Operating Temperature Range: -30 to +70°C
Installation: Front panel mounting via suitable cutout.Retaining clips supplied. Cable connections via screw clamp type terminals
Calibration: Speed trip setting switch accessible from rear of module.
Besides, we provide many other models of generator controllers
| Generator controller | ||
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-(PC Connector) |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC Connector) |
| 23 | Generator controller | BC720(PC Connector) |
| 24 | USB | P810 |
| 25 | Step Speed controller | ESM3012 |
| 26 | Actuator | ASM5676 |
| 27 | Actuator | ASM5654 |
| 28 | Engine Control Box | BX341 |
| 29 | Engine Control Box | BX40 |
| 30 | Generator set Control Box | BX5XXX ORIGINAL VERSION |
| 31 | Engine interface card | EIM630-465/466 |
