720 Controller
The BC 720 automatic mains failure module has been primarily designed to monitor the mains (utility) supply, starting the generator automatically should it fall out of limits, transferring the load automatically to the generator. Once the mains (utility) has returned the load is automatically transferred back to the mains (utility) and the generator cooled down before it stops. If required the generator can be started and stopped manually.
The BC 720 module monitors the mains (utility) supply indicating the status of the mains via an LED. Additionally the module monitors the engine, indicating that the generator is running via an LED. An LCD display is used to indicate further status and alarm conditions. When a fault is detected the generator is automatically shut down, giving a true first up fault condition.
Using the module’s front panel configuration editor it is possible to alter selective operational sequences, timers and alarm trips. Comprehensive configuration and monitoring is also available using the 700 series PC configuration software for Windows™.

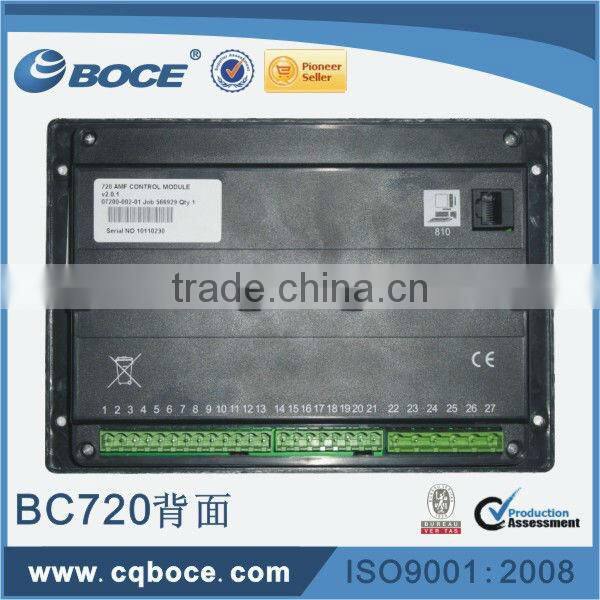

The module is housed in a fully enclosed robust plastic case for front panel mounting, offering a high IP rating of 56 with the optional gasket. Connections to the module are via locking plug and sockets.
FEATURES
• PC configurable
• Digital and analogue inputs
• Digital outputs
• Automatic mains (utility) supply monitoring
• Automatic shutdown or warning when fault conditions are detected
• Front panel programming
• Tamper proof engine hours counter
• Remote start
• LED indicators
• Configurable timers
• Configurable outputs
• Configurable inputs
• Back-lit character/icon LCD display
BENEFITS
• Transfer between mains (utility) and generator power
• On-site module configuration and remote configuration (Max 100 Meters) using PC software
• User-friendly set-up and button layout
• Multiple engine parameters are monitored simultaneously
• License free PC software
OPERATION

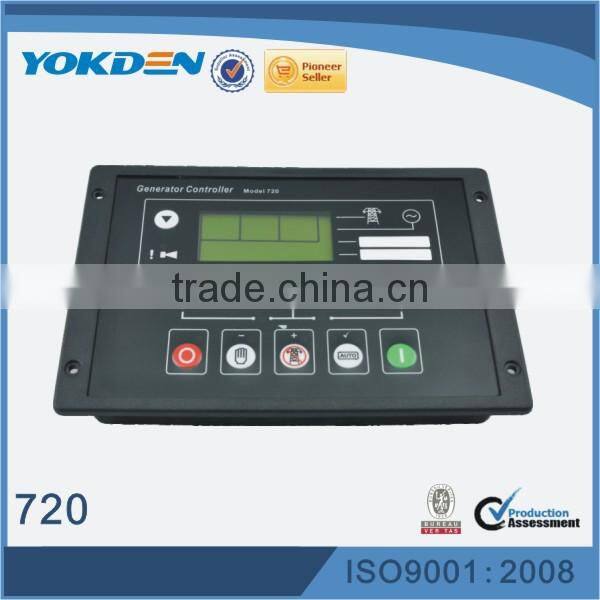

The module is operated using the front STOP/RESET, MANUAL, AUTO, TEST and START push buttons.
An additional push button next to the LCD display is used to scroll through the modules’ metering displays.
Specifications:
DC SUPPLY |
8V to 35V continuous |
CRANKING DROPOUTS |
Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. |
MAXIMUM OPERATING CURRENT |
180mA at 12V. 190mA at 24V |
MAXIMUMS TANDBY CURRENT |
145mA at 12V. 150mA at 24V |
GENERATOR INPUT RANGE |
35V(L-N) to 333V AC (L-N) absolute maximum 50Hz - 60Hz (min 15V AC) |
AUXILIARY OUTPUTS |
Solid state 2.4A DC at supply voltage |
FUEL/START OUTPUTS |
Solid state 3.4A DC at supply voltage |
GENERATOR C.T. |
5A secondary 0.5VA |
|
MAINS (UTILITY) SENSING INPUT RANGE |
35V(L-N) to 333V AC (L-N) 50Hz - 60Hz (min 15V AC) |
DIMENSIONS |
209mm x 146mm x 30.3mm 8.2” x 5.7” x 1.2” |
PANEL CUTOUT |
182mm x 137mm 7.2” x 5.4” |
MAXIMUMPANEL THICKNESS |
8mm 0.3” |
Besides, we provide replacement many other models of generator controllers
| Generator controller | ||
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-PC Connector |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710(PC Connector) |
| 23 | Generator controller | BC720(PC Connector) |
| 24 | USB | P810 |
| 25 | Step Speed controller | ESM3012 |
| 26 | Actuator | ASM5676 |
| 27 | Actuator | ASM5654 |
| 28 | Engine Control Box | BX341 |
| 29 | Engine Control Box | BX40 |
| 30 | Generator set Control Box | BX5XXX ORIGINAL VERSION |
| 31 | Engine interface card | EIM630-465/466 |
Why Choose Us?
1.Gold Supplier on Alibaba for 5 Years → Reliable Supplier with Good Reputation
2.Factory Direct Sale → Competitive Price & Full Stock
3.Quality Control → High Quality
4.Low MOQ → Accept Small Order
5.Accept OEM → Produce Products as Customers' Requirements
6.Fast Delivery → Delivery within 3 Working Days
7.Various Payment Methods → Easy to Pay
8.Changing or Refunding → Accept Returns
Shipping Policy Delivery Time:
USA, Canada ,Australia, West and North Europe 4-7 Business Days, Other country 5-8 Business Days
Shipping address:Please, make sure to provide us with correct, precise, and detailed shipping Address.
Send Time:
Items will be shipped within 1 to 3 business days upon payment received or cleared.
Note:
If you don't receive items over 30 business days , please notify us.
Return Policy We appreciate your business and offer an instant 7 days return policy.( 7 days after receive the item). The returned item has to be in its original condition. We are able to refund your money without shipping cost.
Contact us For anything about product, price, shipping or order status, please fell free to contact with us
