Genset Control Module 701 MS
- 1000 Piece / Pieces per Month
- Chongqing
- T/T Credit Card PayPal
- High quality Lock wire ф1.0×8m\516000002 for India power system
- Injection nozzle G.NPL. BH-R1/4 for Bangladesh Power Station
- ComAp ID-MOBILE GPS I-CR I-CR-R ID-COM IG-COM IG-COM/MAR I-CB/CAT DIESEL I-CB/CAT GAS I-CB/DEUTZTEM I-CB/Modbus I-RD-CAN-ID-DCU-MARINE
- ComAp ICHG-60-12-AF ICHG-500 ICHG-60-12-A InteliCharger 120 12-24 ICHG-120 12-24 InteliCharger 240 24 BC124V10BNB
- InteliGateway 100 CM2GW100BAB InteliGateway 300 CM2GW300BAB InteliGateway 101 CM2GW101BAB InteliGateway 301 CM2GW301BAB ComAp Extended module, Communications module, I/O input/output module,intelligent charging module
- 309-5808 3095808 247-5276 2475276 CAT Control Gp-Pedal -Electric for Caterpillar heavy duty spare parts
Product Details
Place of Origin: | Chongqing, China | Brand Name: | BOCE | Model Number: | 701 |
Product Description

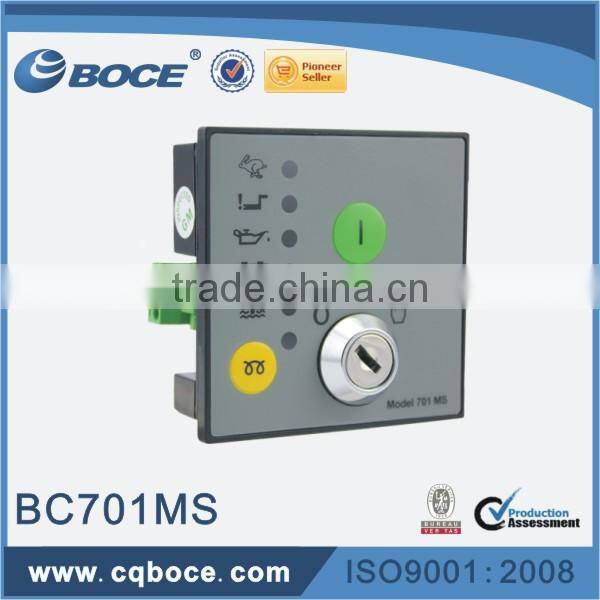

Generator Control Module BC701 MS
The Model 701 is a Manual Engine Control Module designed to control the engine via a key switch and pushbuttons on the front panel. The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the engine failure by LED, giving true, first-up fault annunciation.
Brief Introduction:
The Model 701 is a Manual Engine Control Module designed to control the engine via a key switch and pushbuttons on the front panel. The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the engine failure by LED, giving true, first-up fault annunciation.
SPECIFICATION :
DC Supply:
8 to 35 V Continuous.
Cranking Dropouts:
Able to survive voltage dips during cranking. This is achieved without the need for internal batteries.
Alternator Input Range:
15 - 305 V AC RMS (+20%)
Alternator Input Frequency:
50 - 60 Hz at rated engine speed.(Minimum 75V AC)
Overspeed: nominal frequency +14%(+24% Overshoot)
Start Output:
Solid State 1.2A negative grounding terminal
Run Output:
Solid State 1.2A negative grounding terminal
Pre-heat Output:
Solid State1.2A negative grounding terminal
Dimensions:
72mm X 72mm X 38mm
(2.83” x 2.83” x 2.5”) (Excluding Keyswitch) Cut-out 68mm x 68mm (2.68” x 2.68”)
Operating Temperature Range: -30 to +70°C
Installation:
Front panel mounting via suitable cutout.Retaining clips supplied. Cable connections via screw clamp typeterminals
Calibration:
Speed trip setting switch accessible from rear of module.
Replacement for 701
Gross Weight: 0.3kg
Generator controller | ||
NO | Name | Model No |
1 | Generator controller | GC30D |
2 | Generator controller | BC118 |
3 | Generator controller | BC168 |
4 | Generator controller | BC180 |
5 | Generator controller | DC20D |
6 | Generator controller | DC40D |
7 | Generator controller | BC501K |
8 | Generator controller | BC520A |
9 | Generator controller | BC3000 |
10 | Generator controller | BC5110 |
11 | Generator controller | BC5110-(PC Connector) |
12 | Generator controller | BC5120 |
13 | Generator controller | BC5210 |
14 | Generator controller | BC5220 |
15 | Generator controller | BC701MS |

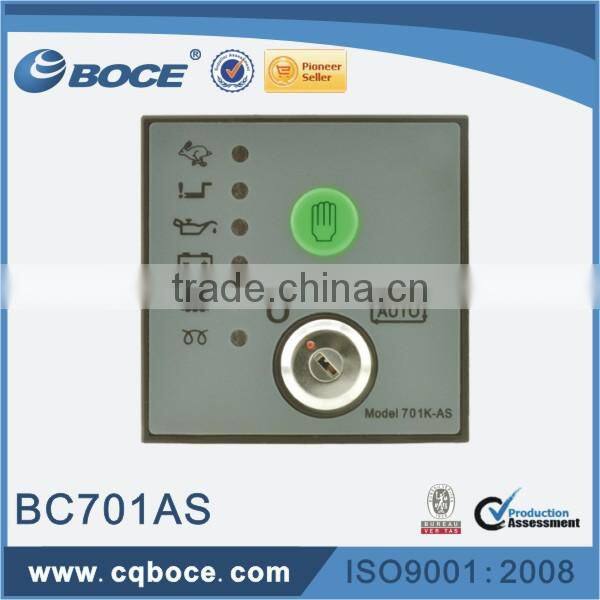

16 | Generator controller | BC701K-AS |
17 | Generator controller | BC702MS-HC |
18 | Generator controller | BC702AS-HC |
19 | Generator controller | BC703 |
20 | Generator controller | BC704 |
21 | Generator controller | BC705 |
22 | Generator controller | BC710(PC Connector) |
23 | Generator controller | BC720(PC Connector) |
24 | USB | P810 |
25 | Step Speed controller | ESM3012 |
26 | Actuator | ASM5676 |
27 | Actuator | ASM5654 |
28 | Engine Control Box | BX341 |
29 | Engine Control Box | BX40 |
30 | Generator set Control Box | BX5XXX ORIGINAL VERSION |
31 | Engine interface card | EIM630-465/466 |
OEM is available.
