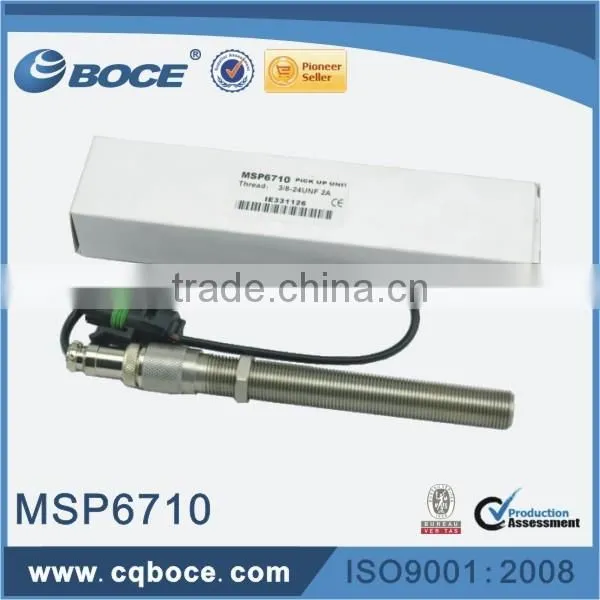

Engine Spare Parts Rotate Speed Sensor Pickup MSP6710

*The magnetic speed sensor indicates when ring geat teeth, or other ferrous projections, pass the tip of the sensor.

*Electrical impulses are induced within the coil and sent to the speed control unit.

*The signal from the magnetic speed sensor, teeth per second(HZ), is directly proportional to engine speed. The

   magnetic speed sensor is mounted in the ring gear case or fly wheel bell housing of the engine.

*The threaded hole for the speed sensor should be perpendicular to the centerline of the crankshaft and centered over the

   ring gear teeth.

*A spot face should be present to provide a flast surface on which to anchor the locknut.

*With the engine stopped, screw the speed sensor in until it touches a gear tooth, then back it out 0.75 of a turn and

  secure it with the locknut.

*Any ferrous gear may be used as long as the frequency and amplitude of the resulting signal meet the speed control unit

  specifications.

*The wire leads should be twisted for their entire length from the magnetic speed sensor to the control unit.

*The leads may need shielding if they are longer than 10 ft(3m), or if external interferenceis present.

Do not connect either of the speed sensor leads to anything but the speed control unit used. The shield should not be connected

at the speed sensor end.

Item       Pickup Length    Thread Length       Lead Length           Thread Size            Drill Size
MSP675     3.125"                 2.75"                      7.00"                 5/8-18 UNF-2A         37/64
MSP676      5.0"                    4.625"                    12.00"               5/8-18 UNF-2A         37/64

Magnetic Speed Sensors are with Wire Leads

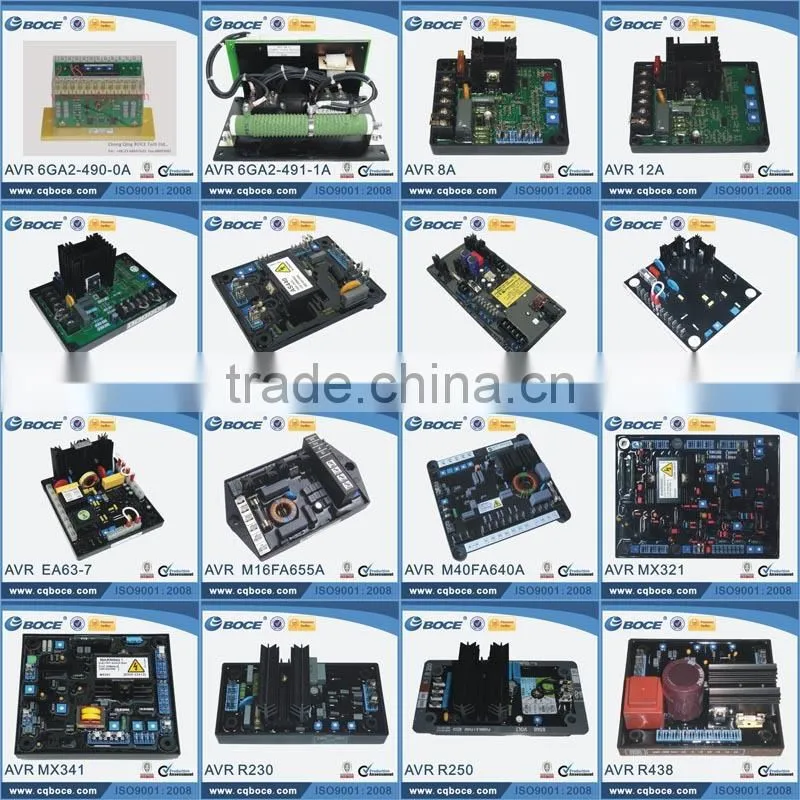

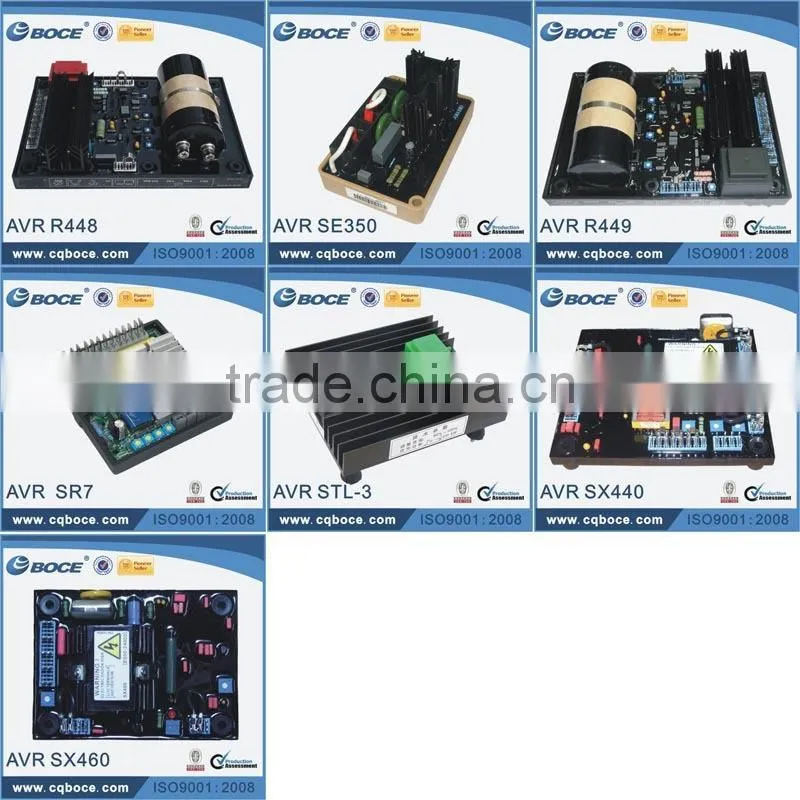

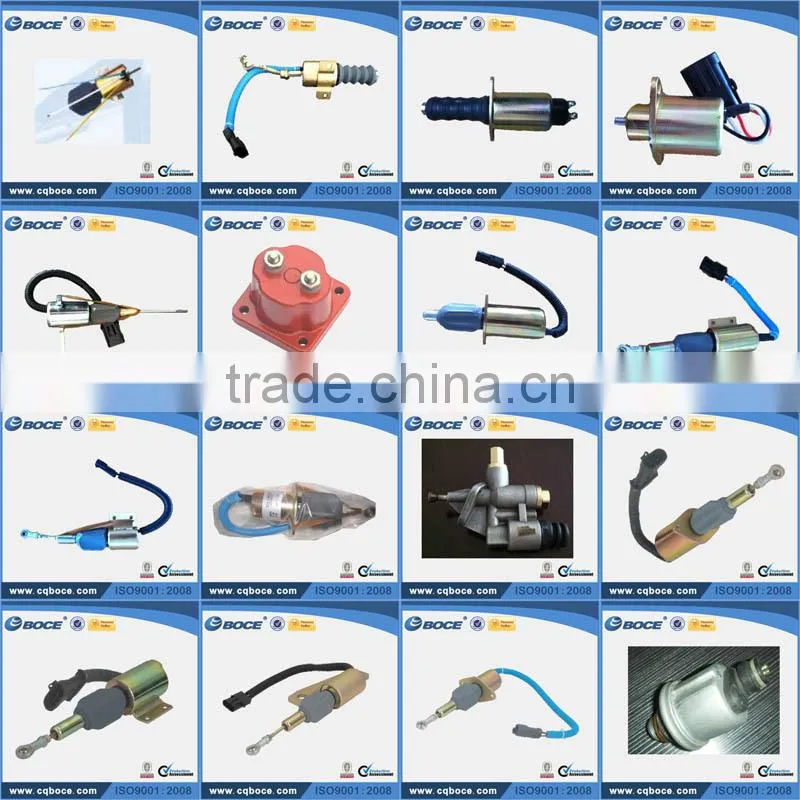

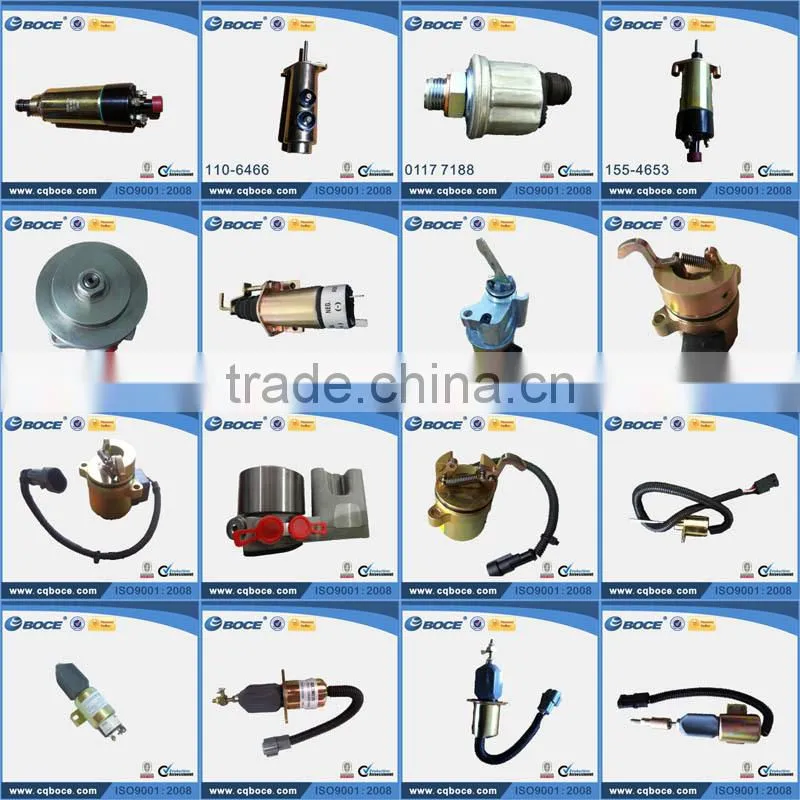

We also have other parts
