Home > Products > Electronic Governor > Diesel Generator Actuator 12V/24V ADC225
Diesel Generator Actuator 12V/24V ADC225
- chongqing
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | BOCE, BOCE | |
| Model Number | ADC225, ADC225 |
Product Description

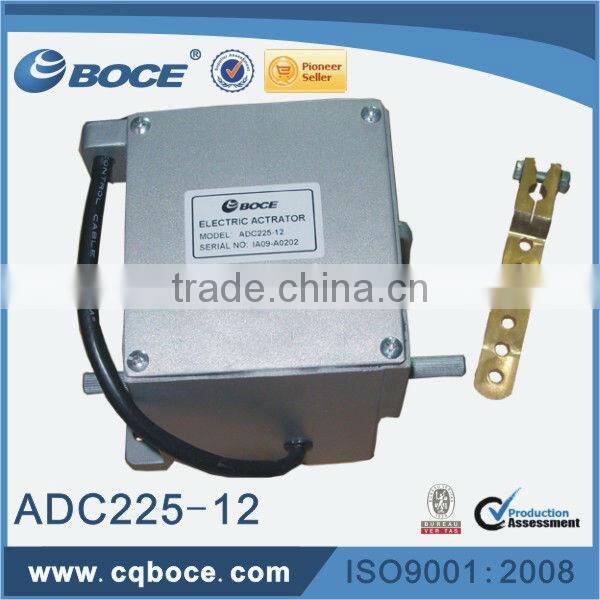

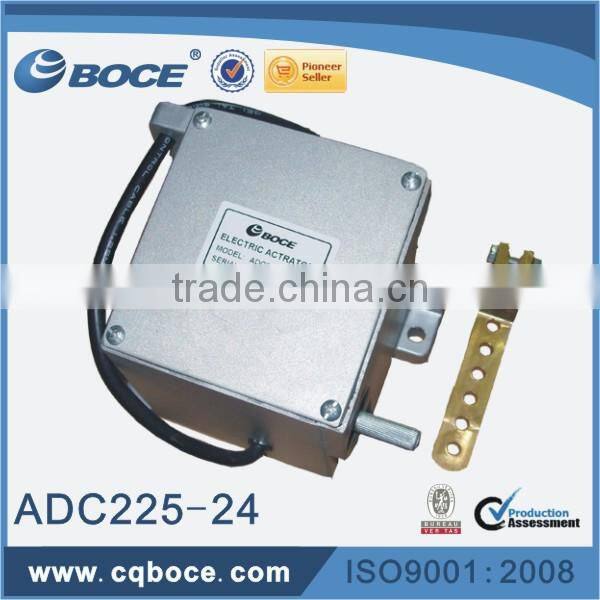

Diesel Generator Actuator 12V/24V ADC225
Actuator ADC225
SPECIFICATIONS
PERFORMANCE: | |
Available Torque: | Max1.0Lb-ft(1.4Nm) |
Maximum Operating Shaft Angular Travel: | 25+1° CW/CCW |
POWER INPUT: | |
Operating voltage: | 12/24V DC |
Normal Operating Current: | 2 A at 12V DC,1A at 24V DC |
ENVIROMENTAL: | |
Temperature Range: | -54 to 95°c |
Relative Humidity: | up to 100% |
All Surface finishes: | Fungus proof and corrosion resistant |
PHISICAL: | |
Weight: | 3.75 kg |
Mounting: | Any position, electrical connector at the top preferred |
RELIABILITY: | |
Vibration: | up to 20G @50-500 Hz |
Testing: | 100% Tested |
MATING HARDWARE: | |
Connector: | Supplied With Actuator |
Lever: | LE1500-2 |
Rod End Bearings(to attach a 12#20 HD linkage rod to lever): | BR200(Right Hand) |
BR201(Right Hand) | |
Wiring Harness HD225: | supplied with actuator |
Besides, we provide many other models of generator controllers
| NO | Name | Model No |
| 1 | Speed controller | 3044195 |
| 2 | Speed controller | 3062322 |
| 3 | Speed controller | 3098693 |
| 4 | Speed controller | 3037359 |
| 5 | Speed controller | 4914090/1 |
| 6 | Speed controller | BC5111 |
| 7 | Speed controller | BC5500E |
| 8 | Speed controller | BC5522E |
| 9 | Actuator | ADC120-12 |
| 10 | Actuator | ADC120-24 |
| 11 | Actuator | ADC225-12 |
| 12 | Actuator | ADC225-24 |
| 10 | Actuator | ADC300 |
| 12 | Actuator | ACD175 |
| 13 | Connecting Rod | for ADC120 ADC225 ACD175 |
| 14 | Actuator Lever | coppery material |
| 15 | Actuator Lever | coppery material |
| 16 | Speed controller | S6700E |
| 17 | Synchronizer | 6714 |
| 18 | Speed controller | LSM672N |
| 19 | Actuator | ACD175 Series |
| 20 | Interface Card | EAM100 |
| 21 | Interface Card | EAM105 |
| 22 | Interface Card | EAM113 |
| 23 | Interface Card | EAM122 |
| 24 | Synchroscope | 6714+ |
| 25 | Speed controller | ESD5221 |
| 26 | Speed controller | ESD5550E |
| 27 | Speed controller | ESD5330 |
