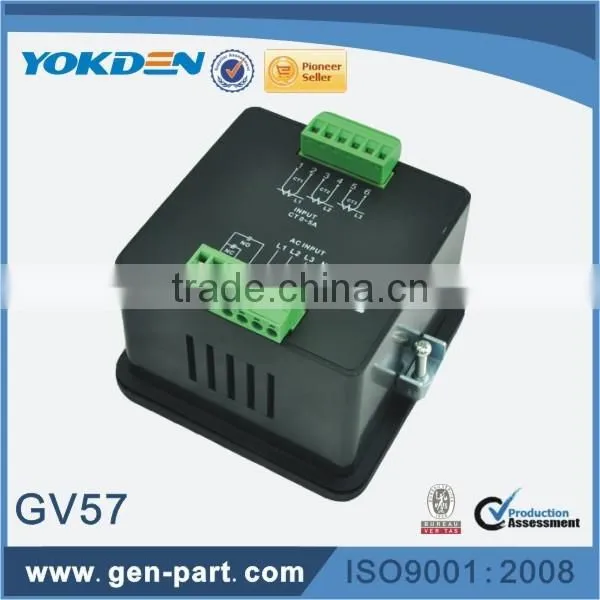

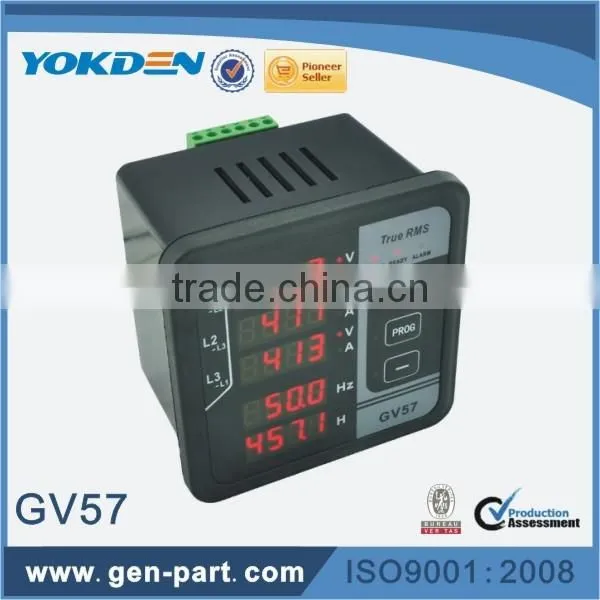

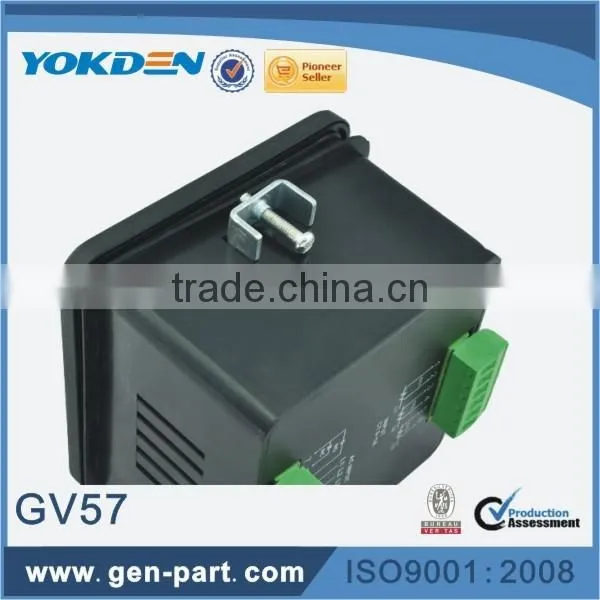

Diesel Generator Digital AMP Meter 3 Phase GV57
GV57 is one multifunctional Meter used for Three phase generator which can check the voltage and current. It is also with the auto protection and alarm functions. There are electricity, switch close and alarm indication as well as over frequency, over voltage and over current alarm so that the users can judge the faults occurred.
The output terminal is connected with relay which can burden large output current and set the parameters by the buttons
Main Features
Micro-computer Control
High-lighted LED tube Indication.
Five screen display.
AC power input
Configurable AC CT Ratio .
Wide voltage range

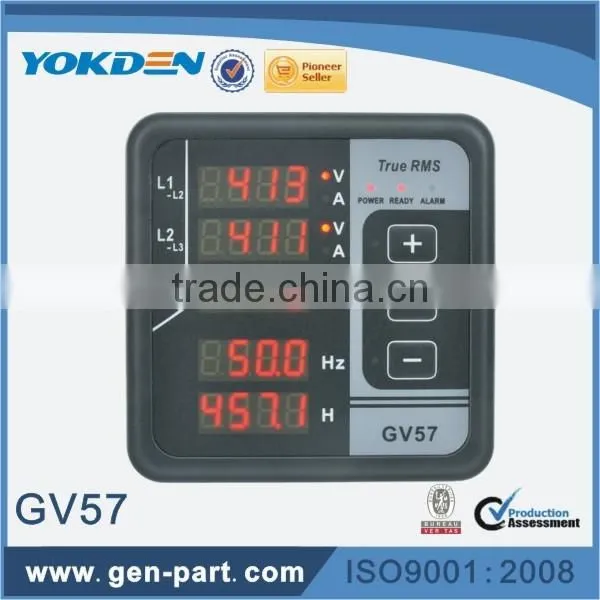

Parameters display
Line Voltage:L1-L2,L2-L3,L3-L1;
Phase Voltage:L1-N,L2-N,L3-N,
Three phase current
Frequency
Range and accuracy
AC voltage:
Phase voltage AC165-260V,Line voltage AC300-450V;Deviation±1%(within the range)
Current:0-6000A;deviation±2%
Frequency:45-70HZ;deviation±0.5%;
Specification
Power Supply: AC165-275V;
Power Consumption:MAX: MAX3W
Size: 100mm*100mm*77mm
Panel cut-out:91mm * 91mm
Degree of Protection:IP54(Front Panel)
Operation Temperature : -20~65℃
Storage Condition:-40℃ ~ 85℃
Weight:200g
We alao have others maybe you interested in:
| Digital Meters | |||
| NO | Name | Model NO | NOTES |
| 1 | Digital Meter | BC-GV13 Old VERSION | 47mm*37mm: AC voltage/frequency/time display |
| 2 | Digital Meter | BC-GV13T Old version | 47mm*37mm: AC voltage/frequency/time display |
| 3 | Digital Meter | BC-GV13T new Version | 47mm*37mm: AC voltage / frequency / running time/ total time display |
| 4 | Digital Meter | BC-GV13F | AC Frequency Meter based on GV13T |
| 5 | Digital Meter | BC-GV13V | Single phase voltage meter based on GV13T |
| 6 | Digital Meter | BC-GV13H | Single Phase hour meter based on GV13T |
| 7 | Digital Meter | BC-GV23 | AC Voltage/ AMP/ Frequency Display (W*H):67mm*67mm |
| 8 | Digital Meter | BC-GV23F | AC Frequency Meter based on GV23 |
| 9 | Digital Meter | BC-GV23V | Single Phase Voltage Meter based on GV23 |
| 10 | Digital Meter | BC-GV23A | Single Phase Hour Meter based on GV23 |
| 11 | Digital Meter | BC-GV23VH | AC Voltage/ Frequency/Total Time Meter based on GV23 |
| 12 | Digital Meter | BC-GV23VS | Single Phase Voltage Meter with protections which can switch on output :10A |
| 13 | Digital Meter | BC-GV23AT | Three phased Amp/hour Meter |
| 14 | Digital Meter | BC-GV24 | Single Phase AC voltage/current/frequency/total time (W*H):67mm*67mm |
| 15 | Digital Meter | BC-GV25 | Single Phase AC voltage/current/frequency/power/cos Display (W*H):67mm*67mm |
| 16 | Digital Meter | BC-GV23L | AC voltage / current / frequency Display (W*H):67mm*67mm |
| 17 | Digital Meter | BC-GV24L | Single Phase AC voltage/ current/frequency/total time Display (W*H):67mm*67mm,used for small current checking |
| 18 | Digital Meter | BC-GV25L | Single phase AC voltage / current/ frequency/power/COS Display (W*H):67mm*67mm,used for small current checking |
| 19 | Digital Meter | BC-GV50 | Three phased Voltage/current/frequency Display with protection of over voltage/under voltage/over current/over frequency. (W*H):67mm*67mm |
| 20 | Digital Meter | GV56/57 | Three phase Voltage/current/frequency/total time ,(W*H):91*91mm |
| 21 | Digital Meter | BC-GT30 | RPM Display with over speed protection which can self-define the flywheel and alarm value.(W*H):67mm*67mm |
| 22 | Digital Meter | BC-GT33 | RPM Display with over speed protection which can self-define the flywheel and alarm value.(W*H):67mm*67mm |
| 23 | Digital Meter | BC-GM40 | Engine Oil Pressure, Oil Temperature,Water temperature, Battery voltage Display with protections. (W*H):67mm*67mm |
| 24 | Digital Meter | BC-GM40H | Engine Oil Pressure, Oil Temperature,Water temperature, Time Display with protections. (W*H):67mm*67mm |
| 25 | Digital Meter | BC-GM50H | Engine RPM, Oil pressure, water temperature, oil temperature, battery voltage,Time display with protections. (W*H):91mm*91mm |
