Home > Industrial Equipment & Components > Power & Generating Sets > Generator Parts & Accessories > Digital Three Phase Generator Meter BC-GV50

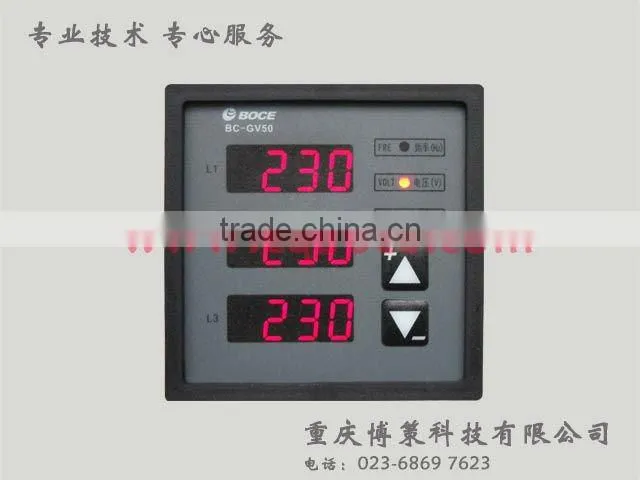

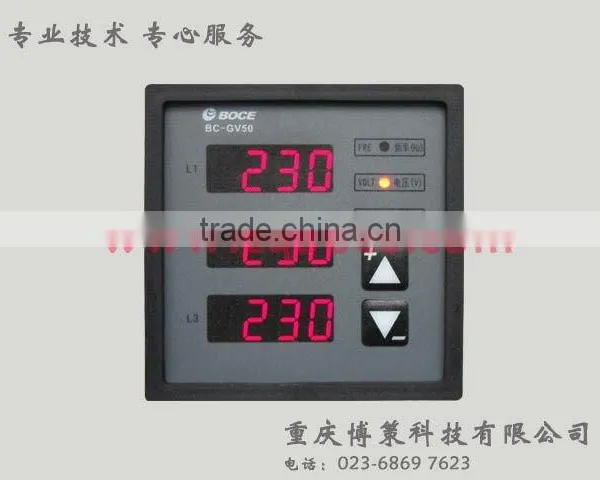

Digital Three Phase Generator Meter BC-GV50

US$ 1 - 25 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Chongqing, China

Brand Name:

Model Number:

GV50

Contact Supplier Request Quote Chat Now

Chongqing Boce Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name BC

Model Number GV50

Digital Multifunction Generator Meter

BC-GV50

Brief introduction

BC-GV50 is one light and low price-orientated module used for checking and demonstrating voltage,current, frequency of generator. This module can replace old meters, for it can be one with multi-functions. the users can adjust and set the parameters by the button on the front face in order to meet the different requests. Besides, it uses the European-style terminals for connection which is more convenient for installation and detachment.

Main features

Voltage, Current and frequency can be checked and demonstrated in the mean time;

High-light digital tube can demonstrate the parameters

Chinese,English and coding demonstration

The parameters can be set and adjusted by the button on the front face

The option of over-speed alarm and its demonstration function is available

Self-recycling of parameters

Configurable output mode of alarming

Protection function

Over frequency

Low frequency

Over voltage

Under voltage

Over load

Parameter demonstration

Phase voltage

Phase current

frequency

Specifications:

Input power	DC 8~36 V
Consuming power	1 W Max.
Alarming output	Optional output with power or not, DC 1A Max.
Operation temperature range	-20°C ~ 75°C
Size(W * H * D)	118mm * 72mm * 72mm
Installation Size(W * H)	67mm * 67mm

We also provide other models of meters.

Please feel free to contact us for more information. It will be pleasure for us to serve for you. ^_^

ISO9001 Quality System Certification

Digital Meters
NO	Name	Model NO	NOTES
1	Digital Meter	BC-GV13 Old VERSION	47mm*37mm: AC voltage/frequency/time display
2	Digital Meter	BC-GV13T Old version	47mm*37mm: AC voltage/frequency/time display
3	Digital Meter	BC-GV13T new Version	47mm*37mm: AC voltage / frequency / running time/ total time display
4	Digital Meter	BC-GV13F	AC Frequency Meter based on GV13T
5	Digital Meter	BC-GV13V	Single phase voltage meter based on GV13T
6	Digital Meter	BC-GV13H	Single Phase hour meter based on GV13T
7	Digital Meter	BC-GV23	AC Voltage/ AMP/ Frequency Display (WH):67mm67mm
8	Digital Meter	BC-GV23F	AC Frequency Meter based on GV23
9	Digital Meter	BC-GV23V	Single Phase Voltage Meter based on GV23
10	Digital Meter	BC-GV23A	Single Phase Hour Meter based on GV23
11	Digital Meter	BC-GV23VH	AC Voltage/ Frequency/Total Time Meter based on GV23
12	Digital Meter	BC-GV23VS	Single Phase Voltage Meter with protections which can switch on output :10A
13	Digital Meter	BC-GV23AT	Three phased Amp/hour Meter
14	Digital Meter	BC-GV24	Single Phase AC voltage/current/frequency/total time (WH):67mm67mm
15	Digital Meter	BC-GV25	Single Phase AC voltage/current/frequency/power/cos Display (WH):67mm67mm
16	Digital Meter	BC-GV23L	AC voltage / current / frequency Display (WH):67mm67mm
17	Digital Meter	BC-GV24L	Single Phase AC voltage/ current/frequency/total time Display (WH):67mm67mm,used for small current checking
18	Digital Meter	BC-GV25L	Single phase AC voltage / current/ frequency/power/COS Display (WH):67mm67mm,used for small current checking
19	Digital Meter	BC-GV50	Three phased Voltage/current/frequency Display with protection of over voltage/under voltage/over current/over frequency. (WH):67mm67mm
20	Digital Meter	GV56/57	Three phase Voltage/current/frequency/total time ,(WH):9191mm
21	Digital Meter	BC-GT30	RPM Display with over speed protection which can self-define the flywheel and alarm value.(WH):67mm67mm
22	Digital Meter	BC-GT33	RPM Display with over speed protection which can self-define the flywheel and alarm value.(WH):67mm67mm
23	Digital Meter	BC-GM40	Engine Oil Pressure, Oil Temperature,Water temperature, Battery voltage Display with protections. (WH):67mm67mm
24	Digital Meter	BC-GM40H	Engine Oil Pressure, Oil Temperature,Water temperature, Time Display with protections. (WH):67mm67mm
25	Engine Meter	BC-GM50H	Engine RPM, Oil pressure, water temperature, oil temperature, battery voltage,Time display with protections. (WH):91mm91mm
