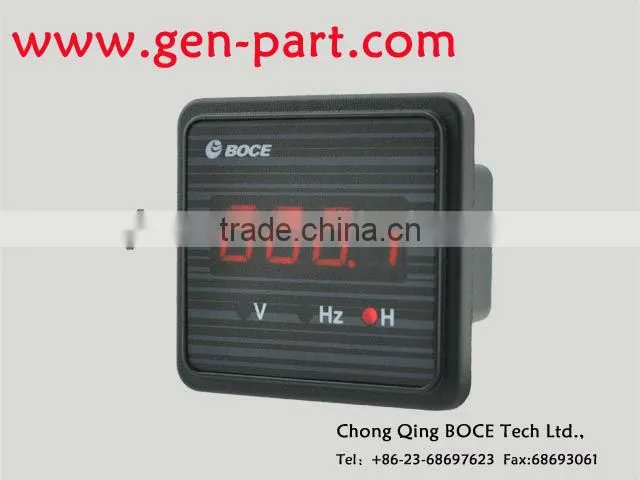

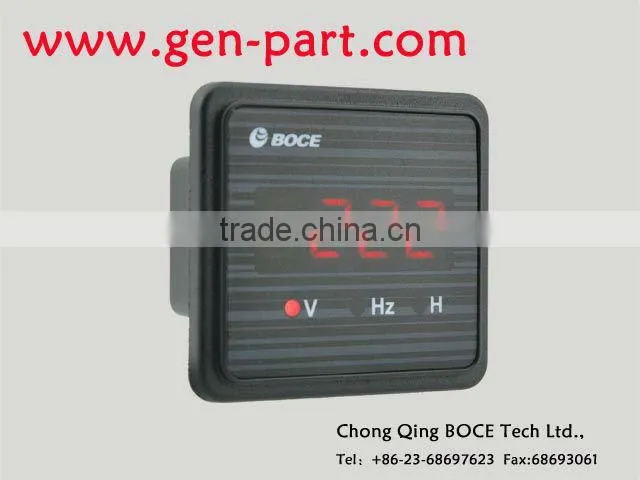

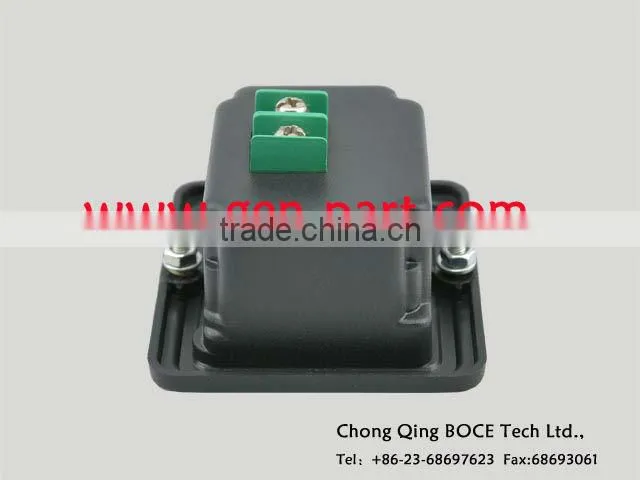

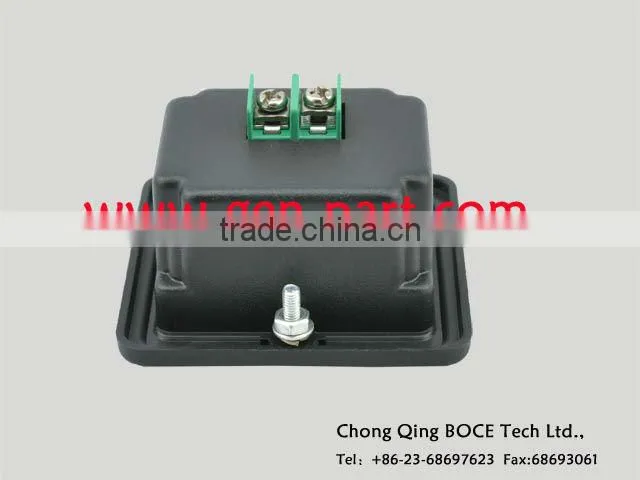

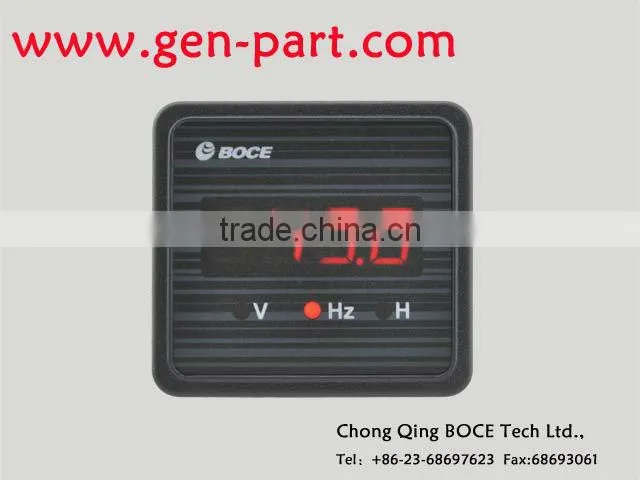

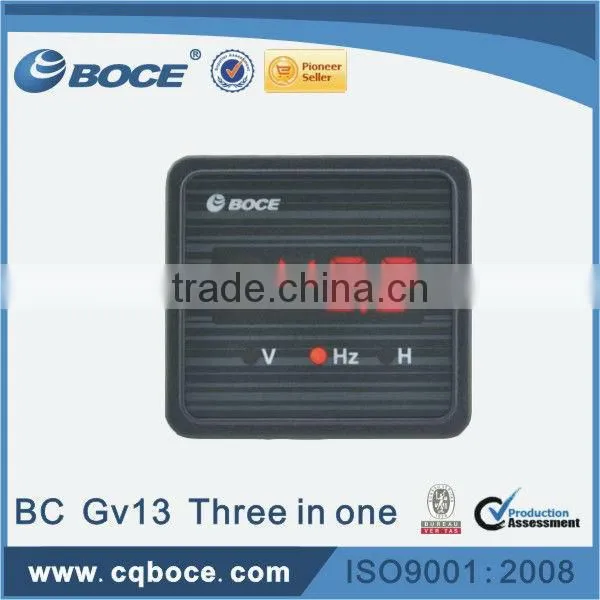

Digital Generator Multifunction Meter BC-GV13
Brief Introduction:
BC-GV13 is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.
Main Features:
♦ Voltage, frequency and accumulating time can be checked and demonstrated in the mean time
♦ Results shown by 4-position digital LED tube
♦ Self-recycling of parameters
♦ Extra working power is not needed
Parameter demonstration:
♦ Phase voltage
♦ Frequency
♦ Accumulating time
Specification:
1.Working power: AC 70~380 V
2.Consuming power: MAX:1 W
3.Recycling time: Voltage:5S, Frequency:5S, Accumulating time: 2S
4.Operation temperature: -20°C ~ 75°C
5.Size(W * H * D):58mm * 54mm * 41mm
6.Installation Size (W * H):47mm * 37mm
7.Weight:50G

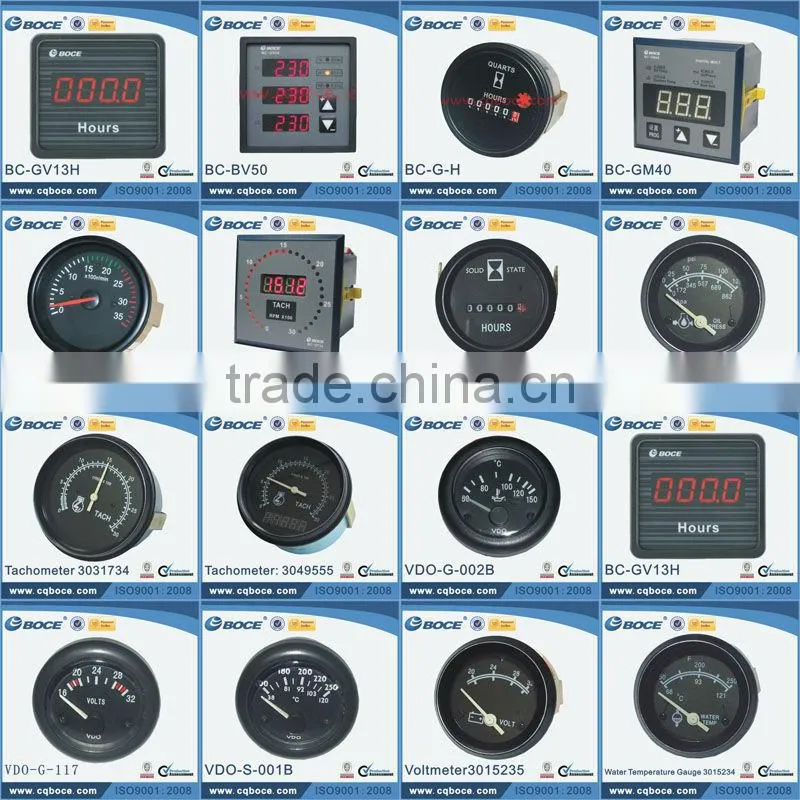

Besides, we provide many other models
| Name | Model NO | NOTES |
| Digital Meter | BC-GV13 Old VERSION | 47mm*37mm: AC voltage/frequency/time display |
| Digital Meter | BC-GV13T Old version | 47mm*37mm: AC voltage/frequency/time display |
| Digital Meter | BC-GV13T new Version | 47mm*37mm: AC voltage / frequency / running time/ total time display |
| Digital Meter | BC-GV13F | AC Frequency Meter based on GV13T |
| Digital Meter | BC-GV13V | Single phase voltage meter based on GV13T |
| Digital Meter | BC-GV13H | Single Phase hour meter based on GV13T |
| Digital Meter | BC-GV23 | AC Voltage/ AMP/ Frequency Display (W*H):67mm*67mm |
| Digital Meter | BC-GV23F | AC Frequency Meter based on GV23 |
| Digital Meter | BC-GV23V | Single Phase Voltage Meter based on GV23 |
| Digital Meter | BC-GV23A | Single Phase Hour Meter based on GV23 |
| Digital Meter | BC-GV23VH | AC Voltage/ Frequency/Total Time Meter based on GV23 |
| Digital Meter | BC-GV23VS | Single Phase Voltage Meter with protections which can switch on output :10A |
| Digital Meter | BC-GV23AT | Three phased Amp/hour Meter |
| Digital Meter | BC-GV24 | Single Phase AC voltage/current/frequency/total time (W*H):67mm*67mm |
| Digital Meter | BC-GV25 | Single Phase AC voltage/current/frequency/power/cos Display (W*H):67mm*67mm |
| Digital Meter | BC-GV23L | AC voltage / current / frequency Display (W*H):67mm*67mm |
| Digital Meter | BC-GV24L | Single Phase AC voltage/ current/frequency/total time Display (W*H):67mm*67mm,used for small current checking |
| Digital Meter | BC-GV25L | Single phase AC voltage / current/ frequency/power/COS Display (W*H):67mm*67mm,used for small current checking |
| Digital Meter | BC-GV50 | Three phased Voltage/current/frequency Display with protection of over voltage/under voltage/over current/over frequency. (W*H):67mm*67mm |
| Digital Meter | GV56/57 | Three phase Voltage/current/frequency/total time ,(W*H):91*91mm |
| Digital Meter | BC-GT30 | RPM Display with over speed protection which can self-define the flywheel and alarm value.(W*H):67mm*67mm |
| Digital Meter | BC-GT33 | RPM Display with over speed protection which can self-define the flywheel and alarm value.(W*H):67mm*67mm |
| Digital Meter | BC-GM40 | Engine Oil Pressure, Oil Temperature,Water temperature, Battery voltage Display with protections. (W*H):67mm*67mm |
| Digital Meter | BC-GM40H | Engine Oil Pressure, Oil Temperature,Water temperature, Time Display with protections. (W*H):67mm*67mm |
