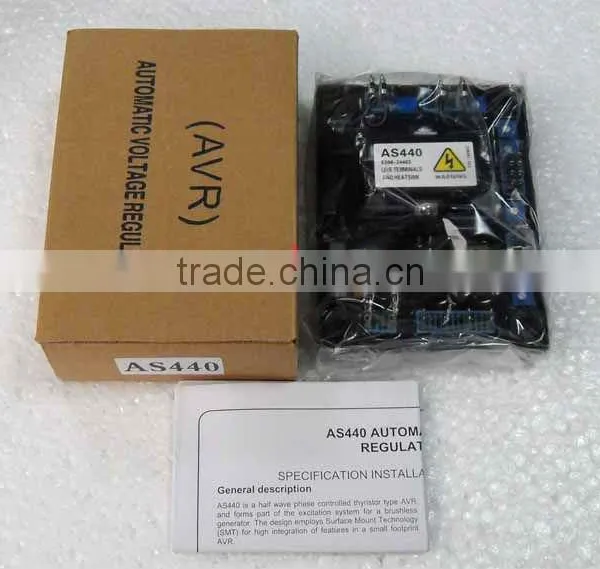

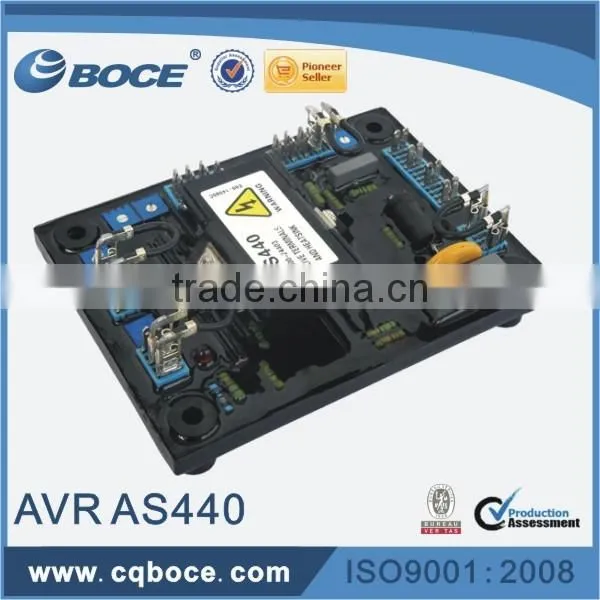

Automatic Voltage Regulator AS440
Automatic Voltage Regulator AS440
1.Technical Parameters:
AS440 is a half wave phase controlled thyristor type AVR and forms part of the excitation system for a brush-less generator. The design employs Surface Mount Technology (SMT) for high integration of features in a small footprint AVR.
| Sensing Input | Voltage | Jumper selectable 100-130 Vac 1 phase 190-264 Vac 1 phase |
| Frequency | 50-60 Hz nominal | |
| Power input | Voltage | 100-264 V ac 1 phase |
| Frequency | 50-60 Hz nominal | |
| Output | Voltage | 82 V d.c. @ 200 V a.c. |
| Current | Continuous 4A transient 7.5A for 10 secs | |
| Resistance | 15 ohms min (10 ohms min when input Volts is less than 175 ac) |
|
| Regulation | ± 1.0% | |
| Thermal drift | 0.03% per deg. C change in AVR ambient | |
| Typical system response | AVR response | 20 ms |
| Filed current to 90% | 80 ms | |
| Machine Volts to 97% | 300 ms | |
| External voltage adjustment | ±-10% with 1kohm 1 watt trimmer Increasing resistance lowers voltage. | |
| Uuder frequency protection | Set point | 94 -98% Hz |
| Unitpower dissipation | 12 watts maximum | |
| Build up voltage | 4 Volts @ AVR terminals | |
| Analogue voltage | Maximum input | ±5 Vdc |
| Sensitivity | 1V for 5% Generator Volts (adjustable) | |
| Input resistance | 1k ohm | |
| Quadrature droop input | 10 ohms burden | |
| Max. sensitivity: 0.07 A for 5% droop 0PF | ||
| Max. input: 0.33 A | ||
| Over excitation protection | Set point | 65 V dc |
| Time delay | 10-15 seconds (fixed) | |
| Environmental | Vibration | 20-100 Hz |
| 100Hz – 2kHz | ||
| 50mm/sec | Operating temperature | 40degree under zero to 70 degree |
| 3.3g | Relative humidity 0-70℃ | 95% |
| Storage temperature | Storage temperature -55 to +80C | |
We also provide other models of AVRs as follows:
| NO | Name | Model No |
| 1 | AVR | SX460 |
| 2 | AVR | SX460A |
| 3 | AVR | SX440 |
| 4 | AVR | SX440A |
| 5 | AVR | AS440 |
| 6 | AVR | AS480 |
| 7 | AVR | MX341 |
| 8 | AVR | MX321 |
| 9 | AVR | R220 |
| 10 | AVR | R230 |
| 11 | AVR | R250 |
| 12 | AVR | R438 |
| 13 | AVR | R448 |
| 14 | AVR | R449 |
| 15 | AVR | R450 |
| 16 | AVR | SE350 |
| 17 | AVR | GAVR-8A |
| 18 | AVR | GAVR-12A |
| 19 | AVR | GAVR-15A |
| 20 | AVR | GAVR-20A |
| 23 | Recifiter | 33025777 |
| 24 | Recifiter | SSAYEC432 |
| 25 | AVR | 6GA2-490-0A |
| 26 | AVR | 6GA2-492-1A |
| 27 | AVR | 6GA2-491-1A |
| 28 | AVR | EA63-4 |
| 29 | AVR | EA63-7 |
| 30 | AVR | SR7 |
| 31 | AVR | M16FA655A |
| 32 | AVR | M40FA640A |
| 33 | AVR | DVR2000E |
| 34 | AVR | M16FA650A |
| 35 | AVR | UVR6 |
| 36 | AVR | VR6 |
| 37 | AVR | STL-3 |
