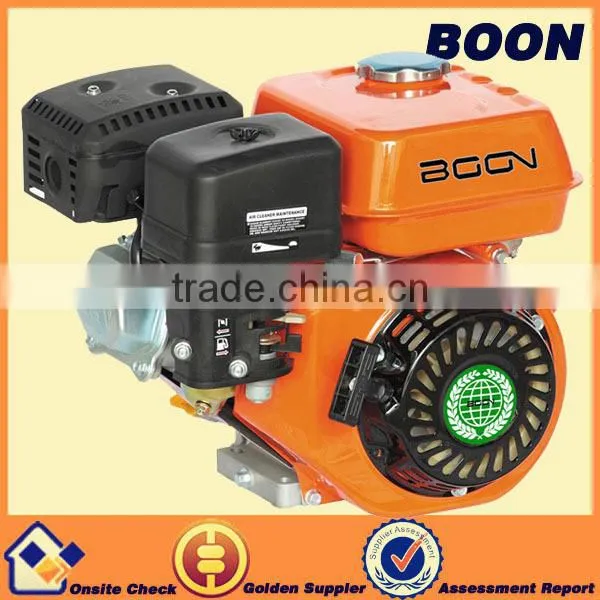

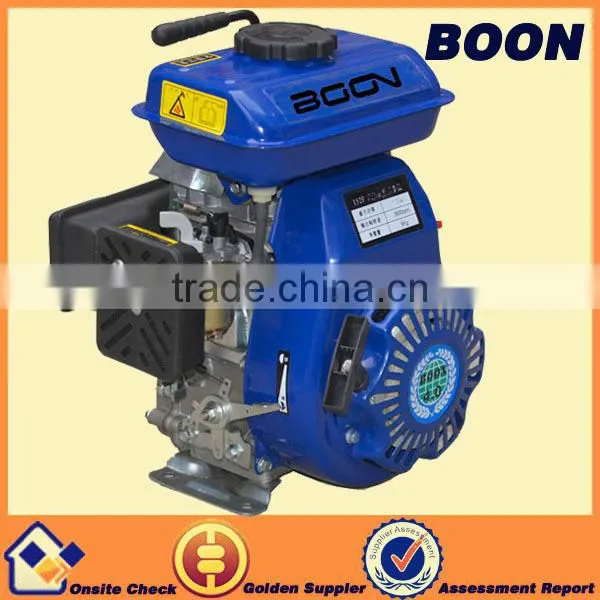

Original 152 f 2.5 hp 7 hp 170 F chongqing gasoline engine

Specifications

engine
1.Engine range: 2.5-15 HP
2.Non-contact transistorized ignition
3.Compression Ratio: 8.5:1
4.Recoil/Electric start

Original 152 f 2.5 hp 7 hp 170 F chongqing gasoline engine



Alibaba Recommended Supplier. Alibaba Golden Supplier.

OEM IS OK!!!

1. Detailed parameters

Power for generator,water pump,lawn mower,cultivator,tillers,agricultural, construction & gardening machine,etc.

We can also produce some universal machinery according to your requirements.

Engine Model	152F(2.5 HP)	170F(7 HP)	190F(15 HP)
Engine type	Single cylinder, four stroke, side/overhead valve, air cooled
Bore*stroke(mm)	52*46	70*54	90*66
Displacement(L)	0.098	0.208	0.420
Ignition System	non-contact transistorized ignition
Compression Ratio	8.5:1
Maximumoutput (kw)	1.2	5.3	8.5
Horse Power(HP)	2.5	7.0	15
Maximum torque (N.m./rpm)	3/3600	11/3600	23/3600
Fuel tank capacity(L)	1.3	3.6	6.5
Lubrication oil capacity(L)	0.45	1.1	1.1
Low oil warning	√
Fuel consumption(g/kwh)	≤450	≤374	≤370
Starting system	Recoil/Electric start
NW/GW(kg)	9/10	15/16	30/32
Packaging size(L*W*Hmm)	300*290*365	415*365*380	490*440*520

2. The Main Features

1) 2.5HP--15HP gasoline engine with OHV design, oil alert (according to your requirement)

stable, durable engines.

2) Compact structure, beautiful appearance, small volume, light weight, low fuel

consumption, the power is great

3) Particular testing to make sure the accurate frequency and motor power.

4) Battery and electric starter included for electric start.

5) Good parts assembled, such as the steel cam, crankshaft, recoil starter, electric start firm and thicker crank case.

6)  Easy start, low noise, little vibration, smooth operation, reliable

performance.

3. Our Competitive Advantages

1) As a manufacturer, we can provide you good quality and low price products immediately instead of purchase from distributors.

2) We are manufacturer and we have our own export right.

3) We have professional technical engineers, so we can solve all the problems you meet. We manufacture it, we know it.

4)Most kinds of engine models, advanced technology, long performance life.

5) We have transportation for ourselves to the FOB port for saving delivery time and the safe of goods.

4.Our Main Products

Gasoline/diesel engine, gasoline/diesel generator, water pump, cultivator/tiller and related parts. As a manufacturer, we can provide you good quality and low price products immediately instead of purchase from distributors.

5.Packaging and Delivery

We package the products with professional export carton box, also can package as your requirements.

We have transportation for ourselves to the FOB port for saving delivery time and the safe of goods.
