Product name |
Universal crawler loader seat |
Brand name |
YIHE |
Model number |
YHF-07 |
MOQ |
50 pieces |
Delivery time |
Within 20 days |
Shipping |
By sea |

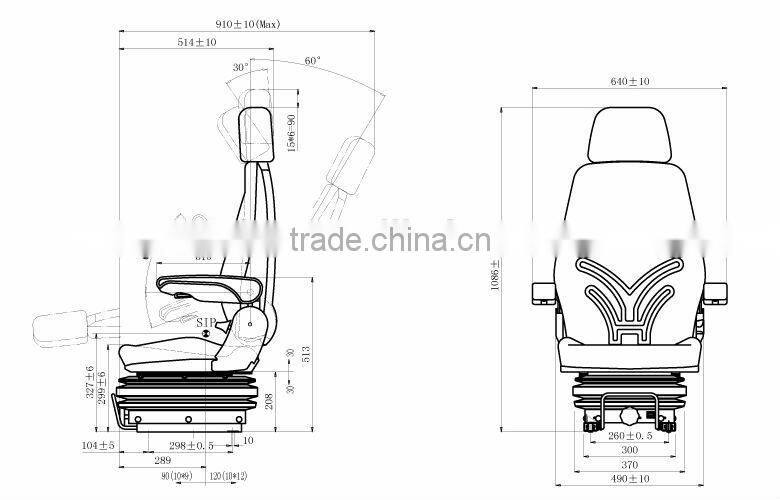

Seat size (L×W×H) |
640mm×514mm×1086mm |
Mounting size |
260mm×298mm |
Packing size |
660mm×630mm×520mm |
Descriptions
.The seat cushion and back cushion are produced by vacuum foaming and one-time shaping technique
.Fore-and-aft adjustable distance is 200mm
.Suspending range of the seat is 80mm
.The seat is infinitely variable according to the individual weight between 50-130kg
.Adjustable range of the seat back(angle between seat back and seat surface):0°-150°
.Adjustable range of arm :70°,and the arm could be locked at any position within the adjustable range.
Asjustable range of the seat height :60mm(30mm*2)
Adjustable range of headrest height:90mm,adjustable range of headrest angle:30°
.Alternative accessory:safety belt.arm.headrest
Within the design scope, we can customize the seats of different installation sizes according to customers' requirements.
Payment Term:We accept T/T,L/C,Western Union as the payment,usually 15-20days after the deposit.
Sample policy:We can send you sample for testing ,you just need to pay for the sample and the shipping cost.
