Help CenterHot Rolled Steel Ball Bearing Turntable
Related Products
-
Ball Race Turntable for TrailerUS$ 20 - 200MOQ: 10 Pieces -
Casting Trailers Turntable Rotating RingUS$ 20 - 200MOQ: 10 Pieces
-
Ball Race Bearing TurntableUS$ 20 - 200MOQ: 10 Pieces
-
Slewing Rings Turntable ManufacturesUS$ 20 - 200MOQ: 10 Pieces
-
Hot Rolled Casting Steel Ball Race TurntableUS$ 20 - 200MOQ: 10 Pieces
Specifications
Hot rolled steel ball bearing turntable1.Sample available
2.Warranty:12 months
3.Size: 400mm~1308mm
4.Type:Z, UA, UB design

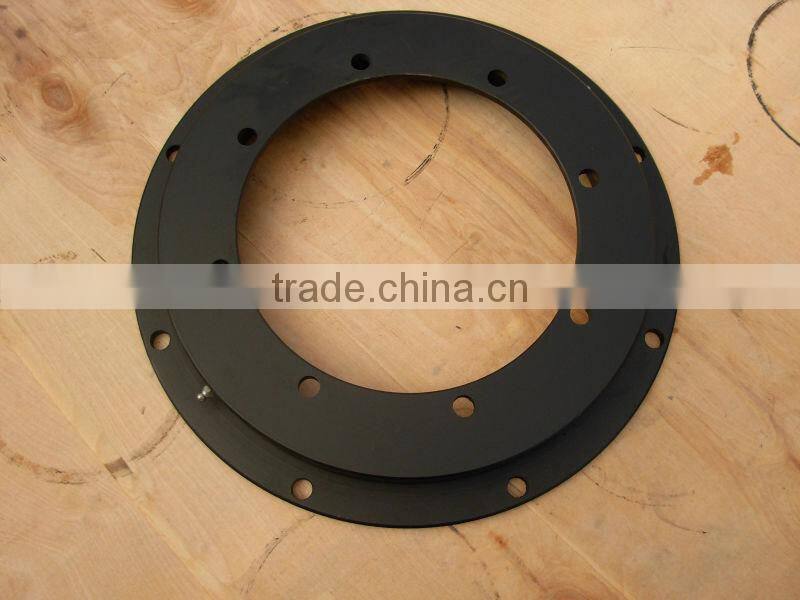

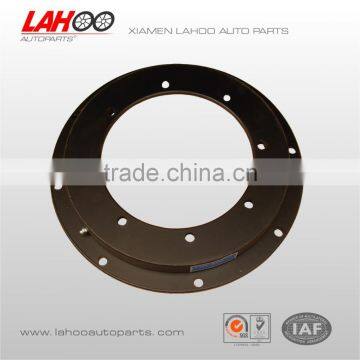

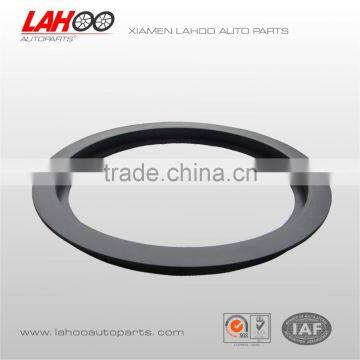

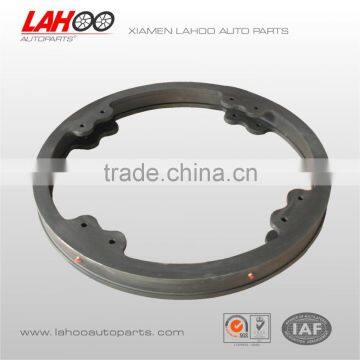

Hot rolled steel ball bearing turntable
1. Turnable series for trailer and truck.
2 .Mechanical turntable.
3. Section Type: U, UA, UB, UC, ZA, ZB.
4. Size: 400mm~1300mm.
5. Tonnage:0.8t~20T.
6. Doubel track and sigle track for your option.
7. Dia:1110mm, 650mm,880mm,1096mm,1198mm.
8. Highness:90mm, 80mm,94mm.
9. Unit Weight: 28kg~125kg.
10. Material: Nodular Cast Iron or Fe360D Steel.
11. Color: Black, Red, Blue or as your requirements.
12.Surface treatment: black spray paint or your design.
13. Design: Common type or Special design according to cstm .
14. Quality Assurance: Advanced Technical Process, Equipment.
15.The model , dimension and treatment can be designed as you request.
16. Market: Europe, America, Africa, Australia and Asia.
17.High quality turnable with low price the model , dimension and treatment can be designed as you request.

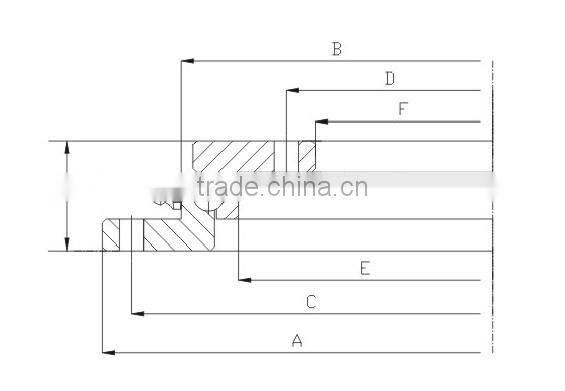

Turntable for Trailer Parts Detailed Technical Product Description
UB Type Single Ball/Casting turntable:
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | Kg | mm | ||
| LHTS500-A01 | 500 | 500 | 392 | 376 | 55 | 32 | 10 | 16 |
| LHTS685-A01 | 685 | 700 | 590 | 565 | 80 | 45 | 13 | 16 |
| LHTS880-A01 | 880 | 895 | 779 | 754 | 80 | 60 | 13 | 16 |
| LHTS1000-A01 | 1000 | 1015 | 885 | 860 | 80 | 76 | 14 | 22 |
| LHTS1000-A02 | 1022 | 1013 | 879 | 856 | 90 | 85 | 14 | 22 |
| LHTS1000-A03 | 1000 | 1015 | 885 | 860 | 90 | 84 | 14 | 22 |
| LHTS1100-A01 | 1100 | 1115 | 985 | 960 | 90 | 98 | 15 | 22 |
| LHTS1100-A02 | 1100 | 1111 | 983 | 949 | 90 | 98 | 15 | 22 |
| LHTS1200-A01 | 1200 | 1211 | 1083 | 1050 | 90 | 110 | 15 | 22 |
| LHTS1300-A01 | 1300 | 1315 | 1180 | 1146 | 90 | 118 | 16 | 22 |
| LHTS1300-A02 | 1300 | 1315 | 1185 | 1160 | 90 | 118 | 16 | 22 |
U Type Double Ball/Casting turntable:
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | Kg | mm | ||
| LHTD650-B01 | 650 | 665 | 552 | 510 | 80 | 74 | 14 | 16/19 |
| LHTD880-B01 | 880 | 895 | 780 | 740 | 80 | 80 | 14 | 16/19 |
| LHTD1000-B01 | 988 | 1000 | 870 | 830 | 92 | 88 | 14 | 16/19 |
| LHTD1096-B01 | 1096 | 1110 | 990 | 950 | 80 | 100 | 14 | 16/22 |
| LHTD1100-B01 | 1095 | 1108 | 975 | 940 | 92 | 100 | 15 | 16/22 |
| LHTD1200-B01 | 1195 | 1208 | 1076 | 1040 | 92 | 118 | 15 | 16/22 |
| LHTD1200-B02 | 1198 | 1215 | 1075 | 1040 | 92 | 120 | 16 | 16/22 |
ZA Type Single ball/casting turntable:
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | Kg | mm | ||
| LHTS520-C01 | 520 | 420 | 405 | 302 | 56 | 30 | 6 | 12 |
| LHTS750-C01 | 750 | 656 | 636 | 532 | 58 | 47 | 6 | 12 |
| LHTS1050-C01 | 1050 | 956 | 935 | 832 | 58 | 60 | 6 | 12 |
ZB Type Single ball/casting turntable:
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | Kg | mm | ||
| LHTS500-D01 | 500 | 437 | 379 | 310 | 52 | 25 | 10 | 16 |
| LHTS650-D01 | 650 | 587 | 523 | 465 | 52 | 32 | 10 | 16 |
| LHTS750-D01 | 750 | 687 | 620 | 565 | 52 | 36 | 10 | 16 |
| LHTS850-D01 | 850 | 787 | 723 | 665 | 52 | 41 | 10 | 16 |
| LHTS950-D01 | 950 | 888 | 820 | 752 | 56 | 45 | 12 | 16 |
| LHTS950-D02 | 952 | 885 | 821 | 750 | 60 | 48 | 12 | 20 |
| LHTS1050-D01 | 1050 | 987 | 923 | 865 | 52 | 53 | 12 | 16 |
| LHTS1100-D01 | 1102 | 1027 | 923 | 854 | 56 | 61 | 12 | 20 |
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Wheel hub and brake drum with different size.
1. We supply many kinds of turntable with different capacity;
2. Casting Turntable-A,Casting Turntable-B, Casting Turntable-C and Casting Turntable-D are available;
3. Besides general size Turntable,customized design is available,OEM & ODM are available;
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. Special discount can be offered with large quantity.
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
