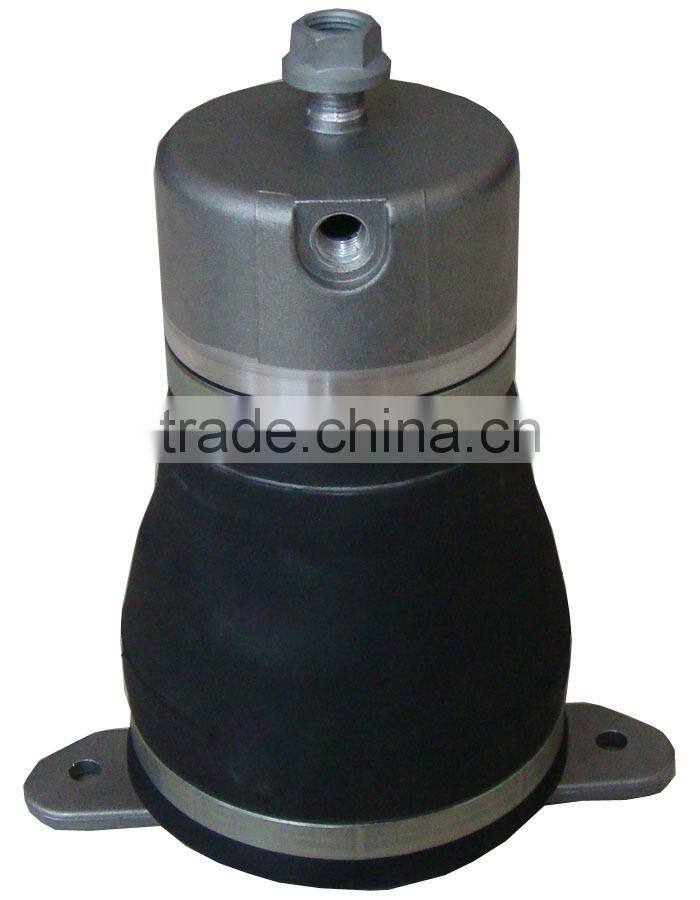

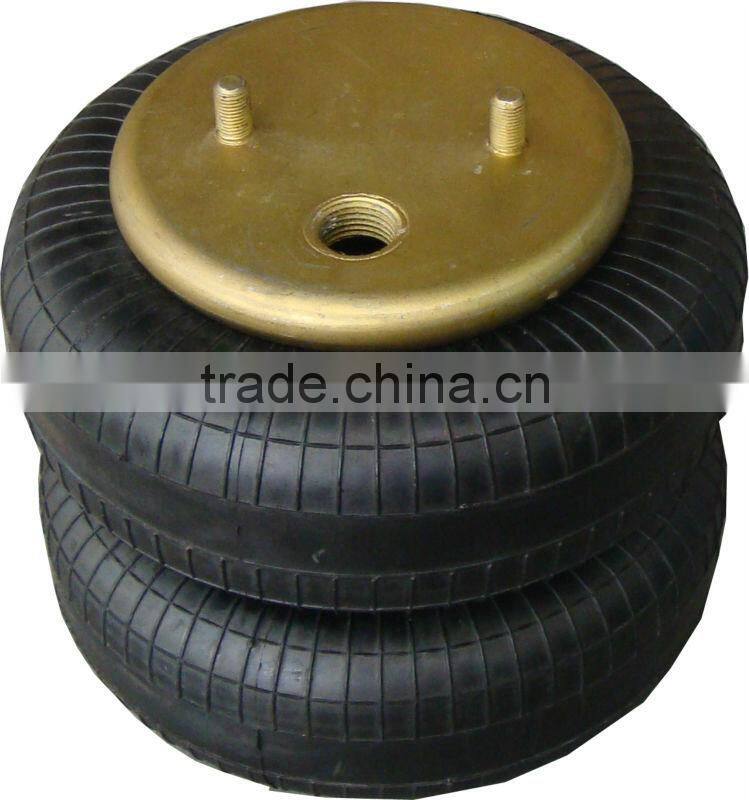

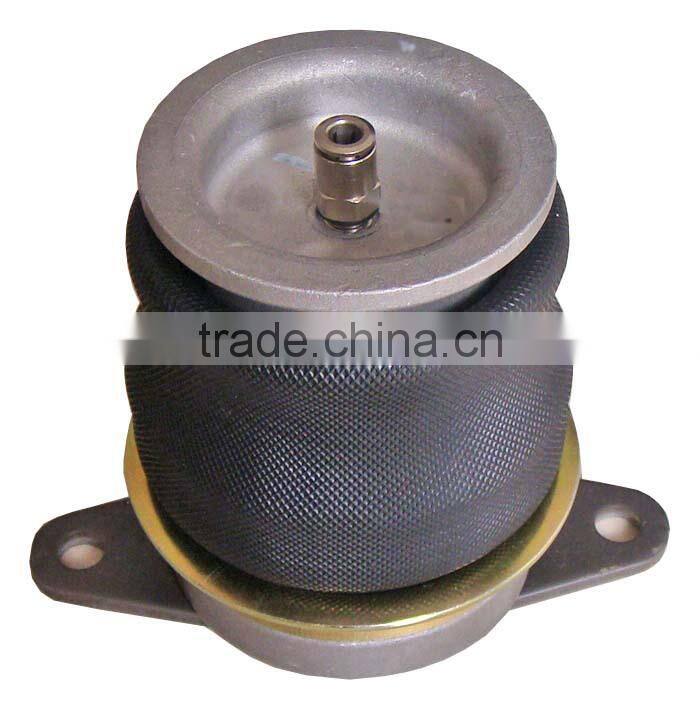

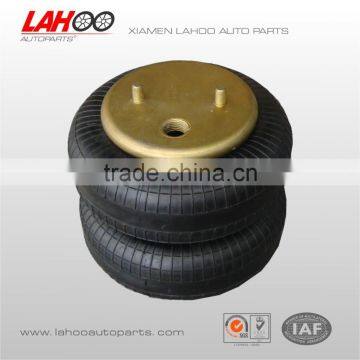

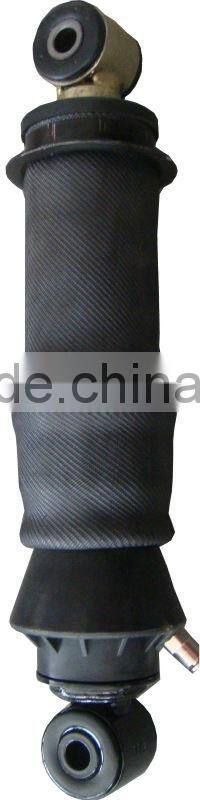

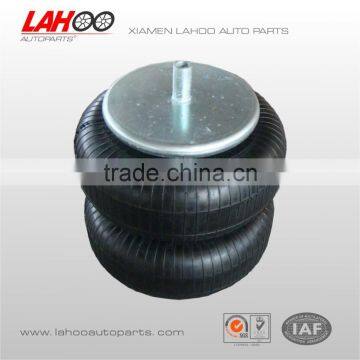

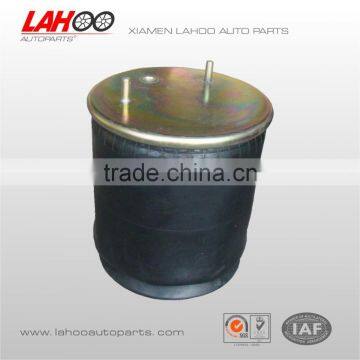

Help CenterContitech Air Suspension Spring Air Bellow 661n
Related Products
-
Air Spring Seat Scania1440529/goodyear 1r12-480US$ 8 - 50MOQ: 50 Pieces -
Firestone Air Springs for Volvo TrucksUS$ 8 - 50MOQ: 50 Units
-
Goodyear Air Spring For TrailersUS$ 8 - 50MOQ: 50 Units
-
Suspension Air Spring For Benz VolvoUS$ 8 - 50MOQ: 50 Pieces
-
510 Material VW Bus Suspension PartsUS$ 50 - 60MOQ: 50 Pairs
1.OEM Number or Part No. Information:
CONTITECH: 661 N
FIRESTONE STYE NUMBER: 1R1C390-310
FIRESTONE ORDER NR: W01-095-0021
GOODYEAR:8018
PHOENIX: 1 E 25
TAURUS: BL 114
DUNLOP UK:PNP 304980101
DUNLOP UK: D12S02
CF GOMMA: 1 S 310-28
CF GOMMA: 91016
BUSSING: 831120144
EVO-BUS: 4.731.012.000
4.731.031.000
4.771.427.000
4.771.440.000
IVECO: 4746733
41822247
2.Technical data:
Weight: 2.3kg
Design height: 275mm
Deflection (Height min): 160mm
Deflection (Height max): 415mm
Working stroke: 255mm
Measurement d max: 315mm
Space required: 335mm
Loading cap. at 1.0bar: 5.0kN
Loading cap. at 7.0bar: 32.0kN
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Wheel hub and brake drum with different size
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
