Specifications
Adjustable container support legs for heavy trailers1.24 ton-35ton capacity
2.JOST,FUWA,Holland type
3.Verified:ISO/TS16949

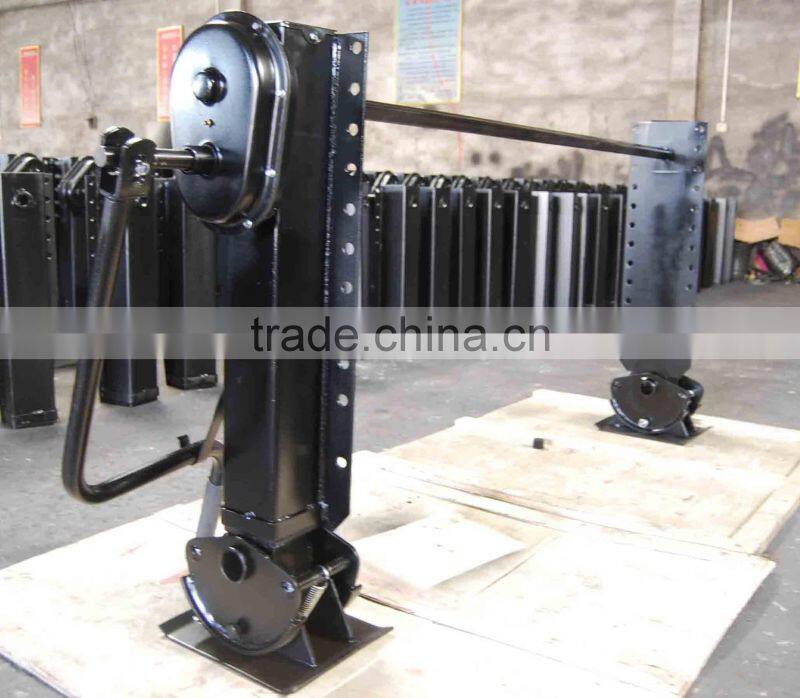

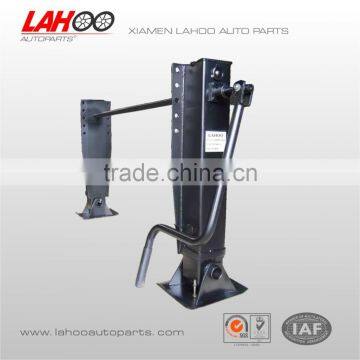

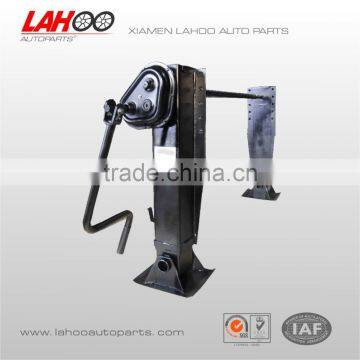

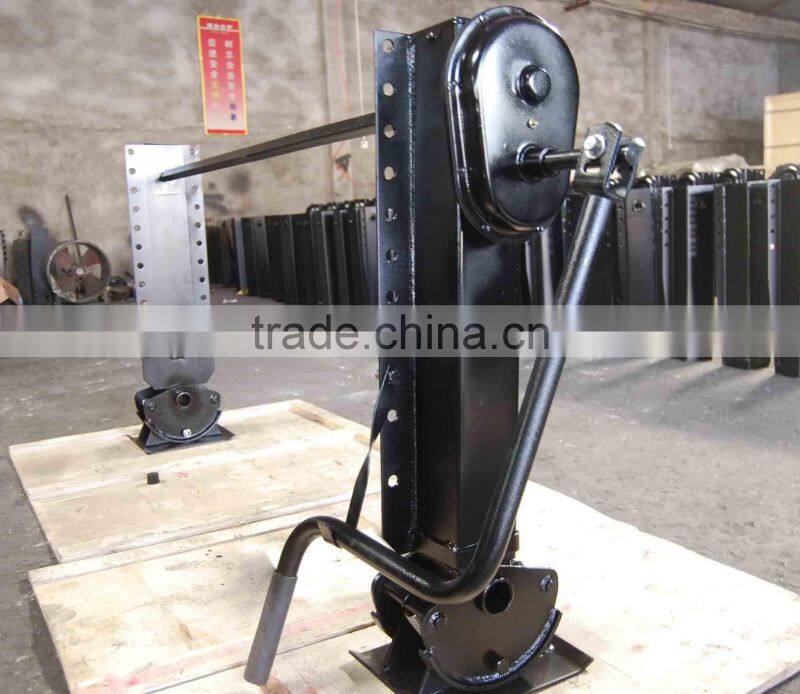

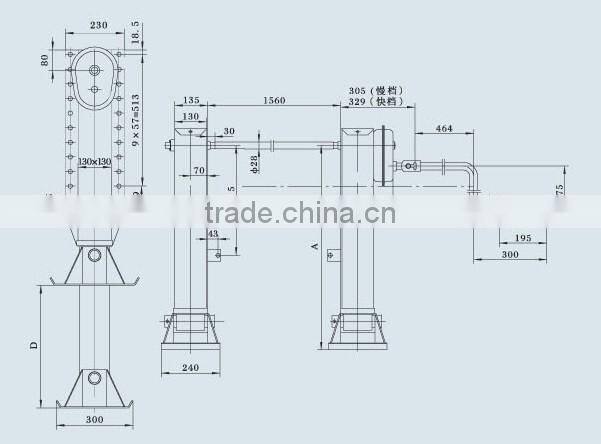

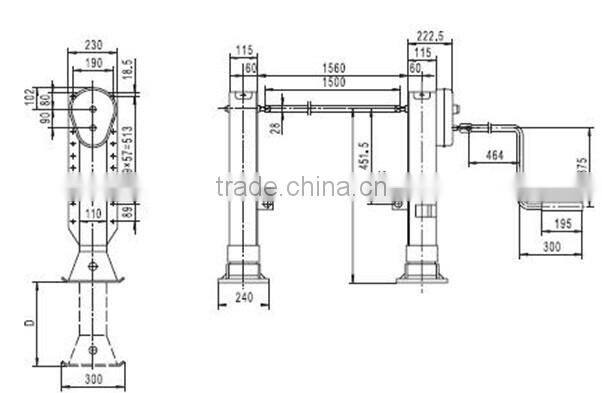

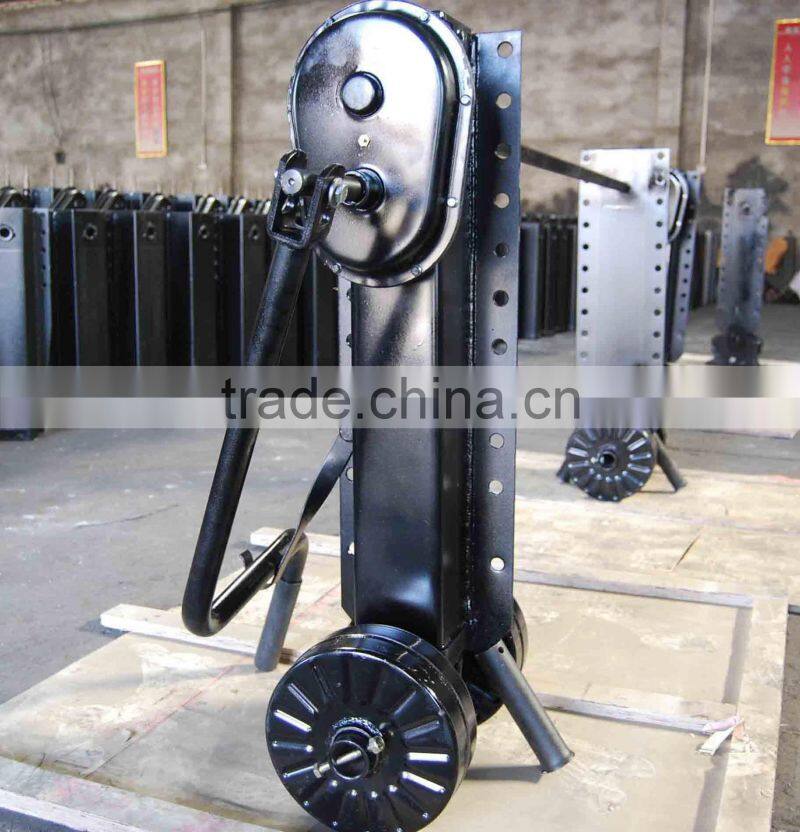

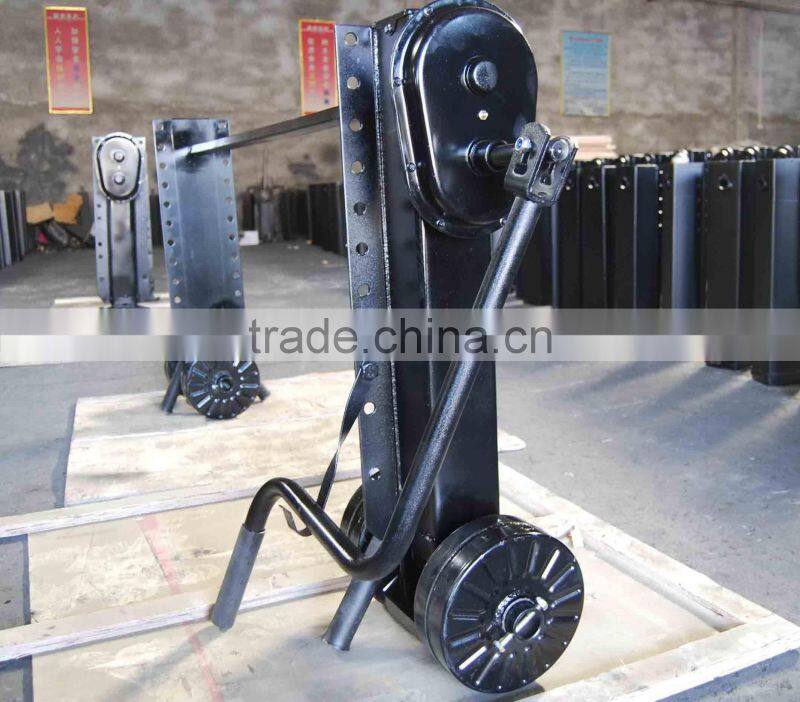

Adjustable container support legs for heavy trailers
1. Gear box inside and gear box outside with JOST, FUWA & Holland type for semi trailer.
2. The main capacity includes 9 ton, 11 ton, 25 ton, 28 ton, 30 ton, etc. Also 3 ton adn 6 ton landing gears are available.
3. Competitive price and hight quality.
4. Certificate: ISO/TS 16949
5. Delivery time: Within 15 days after receipt of TT deposit or LC.
Gear inside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lifting Speed/turn | Weight (Kg) | Remarks | |
| max. | min. | ||||||
| LHLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| LHLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| LHLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 | single-side operation |
Gear outside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lifting Speed/turn | Weight (Kg) | Remarks | |
| max. | min. | ||||||
| LHLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| LHLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
| LHLO-30 | 14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| LHLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation |
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Wheel hub and brake drum with different size.
1. We supply many kinds of landing gear with different capacity.
2. Landing gearbox outside and inside are available.
3. Besides general size landing gear, we can make by customers' request or drawings.
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
