Specifications
Agricultural Trailer Axle And Wheels1)Factory price
2)Easy maintence
3)Customized marketing
4)OEM available
Agricultural Trailer Axle And Wheels
Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
2. Capacity: 1~8 Tons;
3. Track: can be customized;
4. Axle Beam: Round, Square for optional;
5. Brake System: with or without brake for your choice;
6. Supply professional solution for customer's trailer;
7. Good price and high quality;
Agricultural Trailer Axle Dimension:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Brake lever position(mm) | Brake Spec.(mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| L2 | D1×D2 | Inner/Outer | ||||||
| LHAH01-AG01 | 1 | 1600 | ◊70 | no | no | 4×M14×Φ130×84 | 30205-20207 | 35 |
| LHAH01-AG02 | 1.5 | 1600 | ◊45/ο45 | no | no | 6×1/2''×Φ139.7 | LM68149/10 LM12749/10 | |
| LHAH02-AG01 | 2 | 1600 | ◊50/ο50 | no | no | 6×1/2''×Φ139.7 | 25580/20 15123/15245 | |
| LHAD03-AG01B | 3 | 1600 | ◊50 | 470 | 255×60 | 6×M18×Φ205×160 | 30206-30209 | 65 |
| LHAH05-AG01 | 5 | 1600 | ◊60 | no | no | 6×M18×Φ205×160 | 30207-30211 | 60 |
| LHAD05-AG01B | 5 | 1600 | ◊60 | 470 | 255×60 | 6×M18×Φ205×160 | 30208-30211 | 100 |
| LHAH06-AG01 | 6 | 1600 | ◊70 | no | no | 6×M18×Φ205×160 | 30208-30213 | 85 |
| LHAD06-AG01B | 6 | 1600 | ◊70 | 470 | 300×60 | 6×M18×Φ205×160 | 30208-30213 | 120 |
STUB AXLE FOR SMALL TRAILER:
Item No. |
Capacity (T) | Track (mm) | Axle Beam (mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| LHSA01-AG01 | 1 | 200 | 40 | 4×M14×Φ130×84 | 30205-20207 | 15 |
| LHSA03-AG01 | 3 | 200 | 50 | 6×M18×Φ250×160 | 30206-30209 | 20 |
| LHSA05-AG01 | 5 | 200 | 60 | 6×M18×Φ250×160 | 30207-30211 | 32 |
| LHSA06-AG01 | 6 | 200 | 70 | 6×M18×Φ250×160 | 30208-30213 | 43 |
| LHSA08-AG01 | 8 | 300 | 80 | 8×M18×Φ250×160 | 32211-30215 |
65 |

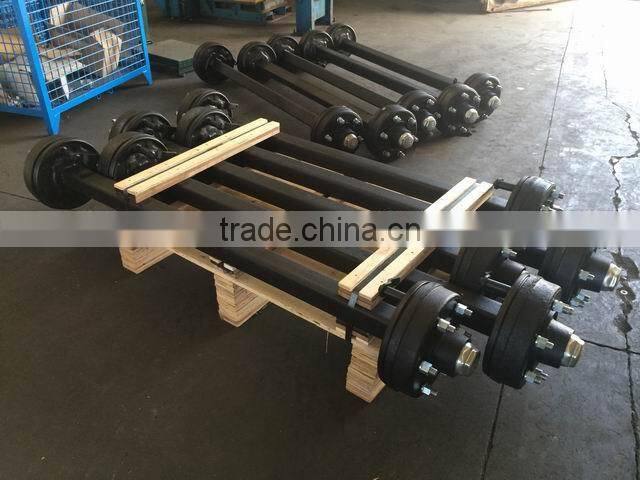

Product Photo
Main products as bellow
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube/Tubeless type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging/Casting type
Air Chamber: T14, T16, T24, T30, T2430, T2424, T3030
Wheel hub and brake drum with different size
Xiamen Lahoo Auto Parts Co., Ltd. is a leading supplier in auto parts that organized by several factories and joint-ventured manufacturers which successfully certified with TS16949 and ISO9001/2000 quality control system. We can supply full range spare parts for full trailers, semi-trailers, heavy duty trucks, light duty trucks, Our main spare parts include leaf spring, wheel rim, axle, Mechanical suspension, air suspension, boogie, turntable, fifth wheel, king pin, landing gear, air chamber, twist lock, Towing Hitches, Bearing and so on.
