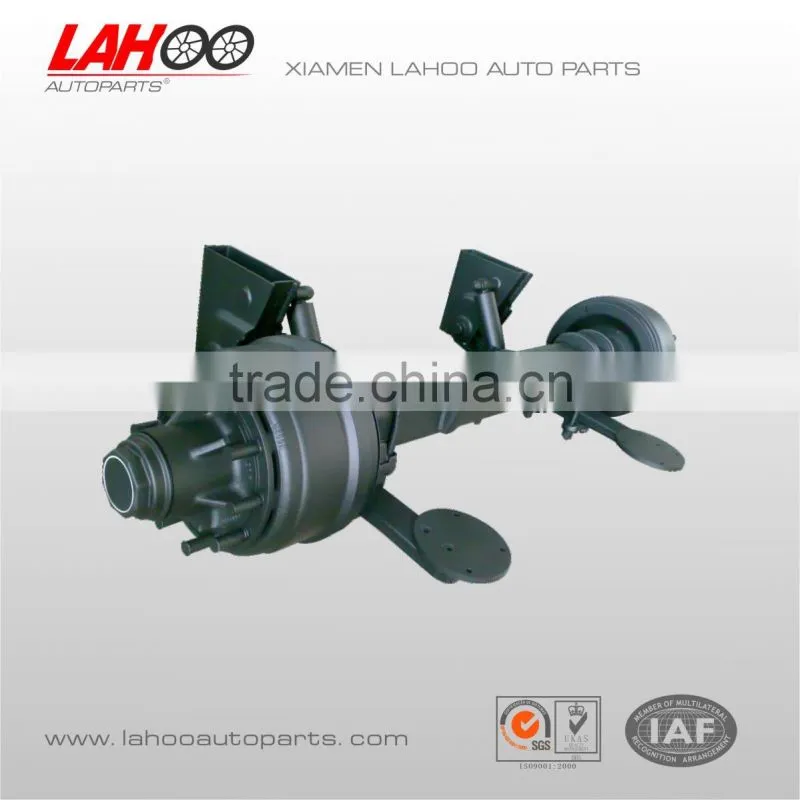

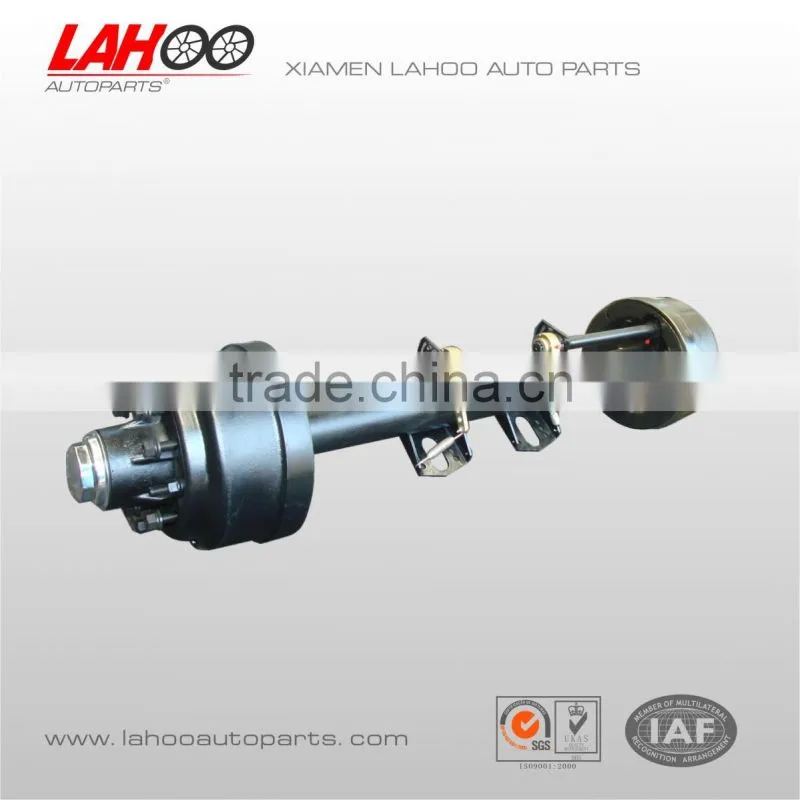

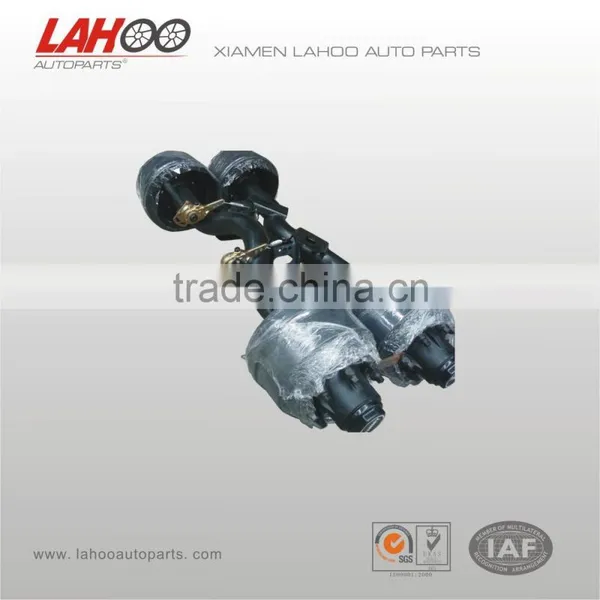

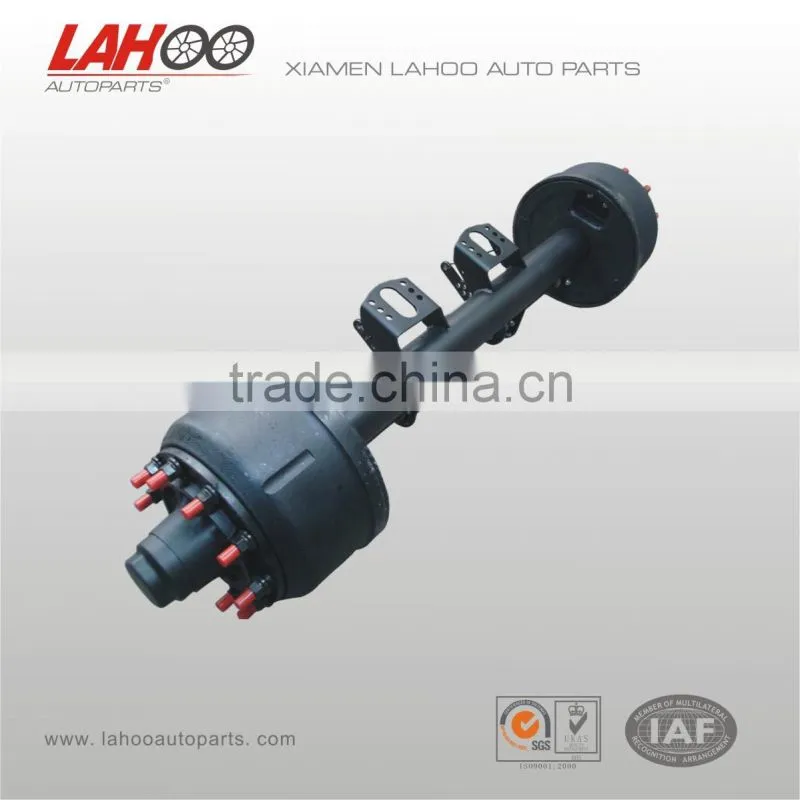

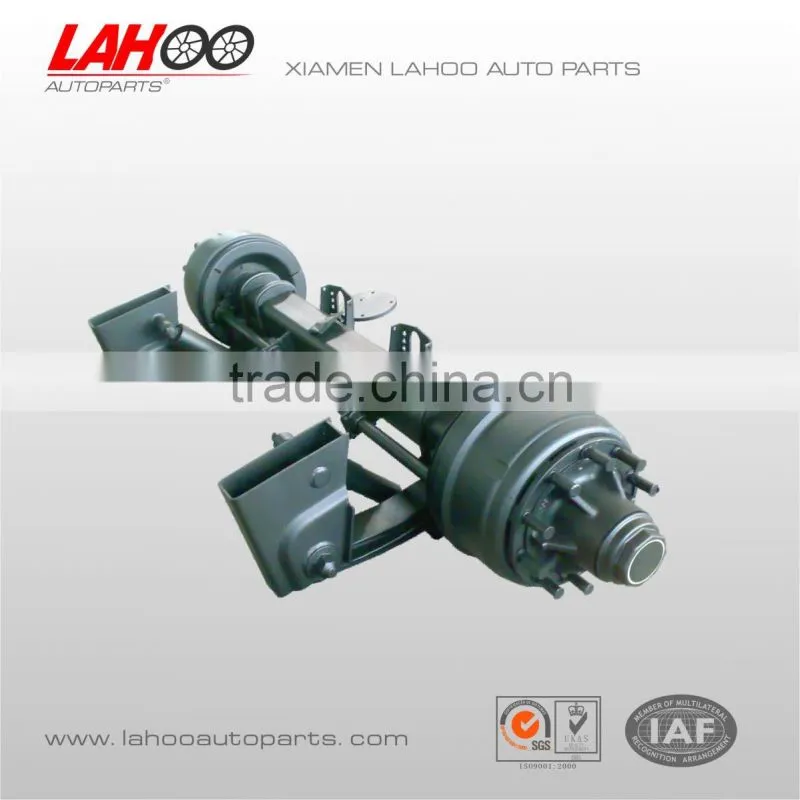

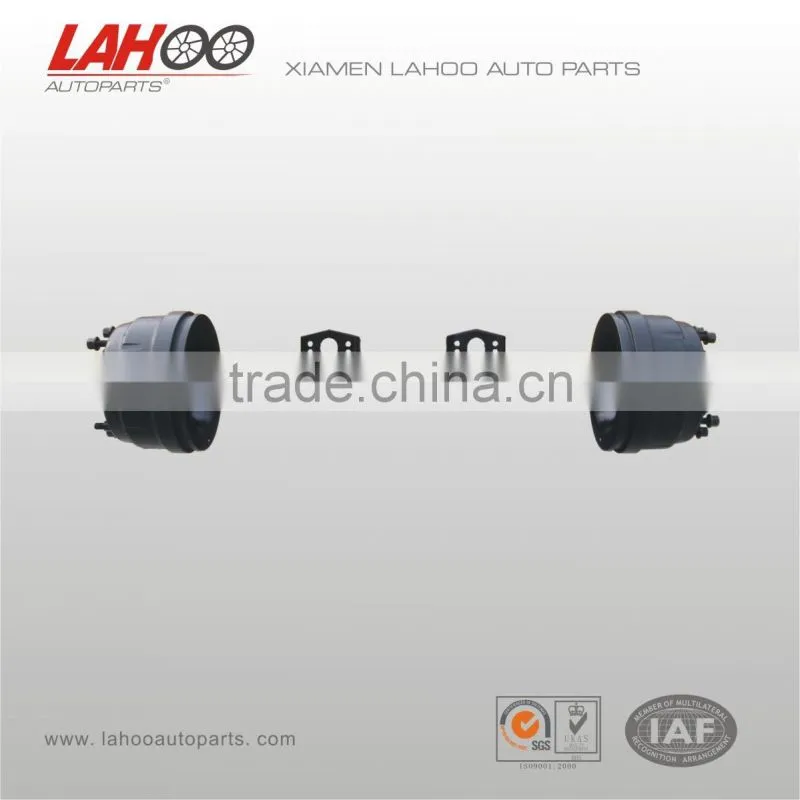

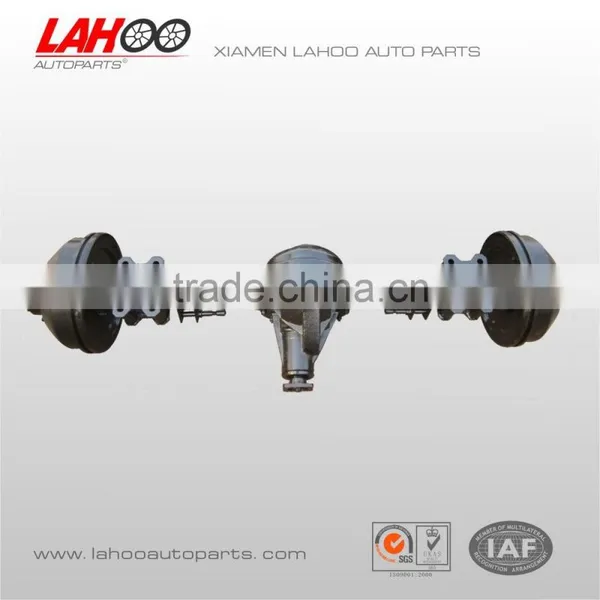

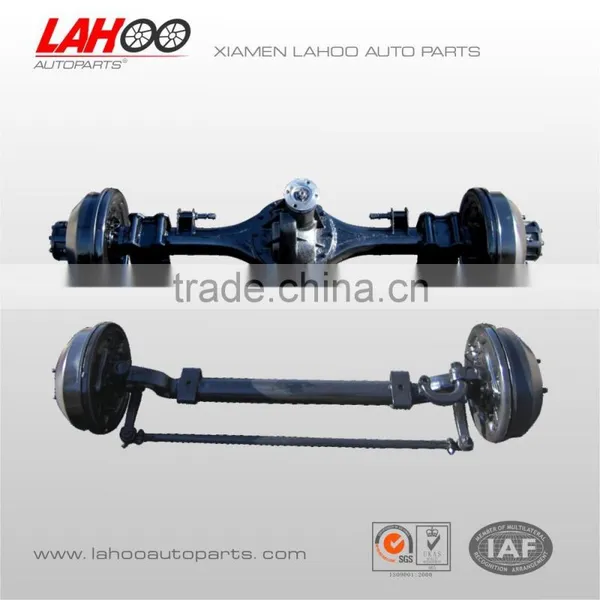

Hot Sell Trailer and Semi Trailer Axle 14T

Name: Hot Sell Trailer and Semi Trailer Axle 14T
Brand: LAHOO
SKU: 139940187
Availability: InStock

US$ 350 - 600 MOQ: 10 Pieces

Key Specifications

Parts:

Trailer Axles

OEM No.:

Hot Sell Trailer and Semi Trailer Axle 14T

Max Payload:

25T

Xiamen Lahoo Auto Parts Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Parts Trailer Axles

OEM No. Hot Sell Trailer and Semi Trailer Axle 14T

Max Payload 25T

Size 1840MM

Place of Origin Fujian, China

Brand Name LAHOO

Model Number semi trailer axle

Hot Sell Trailer and Semi Trailer Axle 14T

1, style: American axle and German Axle
2, Capacity from 8T to 25T
3, ISO,TS16949

American Drum Series Axle
Item No.	Capacity (T)	Track (mm)	Axle Beam (mm)	Center Distance Of Chamber (mm)	Brake Spec.(mm)	Wheel Fixing (mm)	Wheel Rim	Total Length (mm)	Weight (Kg)	Bearing
		L2		L3		D1×D2		L1		Inner/Outer
LHAD08-A01	8	1840	127/ 150	455	S 420×150	8×M20×Φ285×Φ221	7.5V-20	2185	320	33215/33213
LHAD11-A01	11	1960	127	670	S 310×190	10×M22×Φ285.75×Φ221	6.5-16	2250	347	218248/218248
LHAD13-A01	13	1840	127/ 150	388	S 420×180	10×M22×Φ335×Φ281	7.5V-20	2185	362	HM518445/10
LHAD13-A02	13	1840	127/ 150	388	S 420×180	8×M20×Φ285×Φ221	7.5V-20	2185	365	HM518445/10
LHAD14-A01	14	1840	127/ 150	348	S 420×180	10×M22×Φ285×Φ281	8.0V-20	2192	408	HM518445/10
LHAD15-A01	15	1850	127/ 150	396	S 420×180	10×M22×Φ285×Φ281	8.0V-20	2185	382	HM518445/10
LHAD16-A01	16	1850	127/ 150	354	S 420×220	10×M22×Φ285×Φ281	8.5V-20	2205	425	HM220149/10
LHAD20-A01	20	1850	150	354	S 420×220	10×M24×Φ285×Φ281	8.5V-20	2270	460	32222 HM518445/10

The track can be met according to customers'requet

German Drum Series Axle

Item No.	Capacity (T)	Track (mm)	Axle Beam (mm)	Center Distance Of Chamber (mm)	Brake Spec.(mm)	Wheel Fixing (mm)	Wheel Rim	Total Length (mm)	Weight (Kg)	Bearing
		L2		L3		D1×D2		L1		Inner/Outer
LHAD10-E01	10	1840	150	421	S 420×180	10×M22×Φ335×Φ281	7.5V-20	2160	360	33118/33213
LHAD12-E01	12	1840	150	421	S 420×180	10×M22×Φ287.74×Φ220	7.5V-20	2172	360	33118/33213
LHAD14-E01	14	1840	150	429	S 420×200	10×M22×Φ335×Φ281	7.5V-20	2245	420	32219/33215
LHAD16-E01	16	1840	150	243	S 420×200	10×M22×Φ335×Φ281	8.0V-20	2245	460	32222/32314
LHAD18-E01	18	1840	150	263	S 420×220	10×M22×Φ287.75×Φ281	8.5V-20	2245	540	32222/32314

The track can be met according to customers'requet
