Hex Mesh

Hex Mesh photo-1
US$ 17 - 18 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Weave Wire Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
XinGang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Material Stainless Steel Wire
Type Weave Wire Mesh
Application Protecting Mesh
Weave Style Plain Weave
Wire Diameter 1.5mm
Technique Woven
Model Number FR-15
Brand Name Fei Rui Brand
Product Description

Hex mesh

Stainless steel hex mesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of its strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.


Stainless steel hex mesh   is  flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.


Since hex metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

Specification

Applications

Stainless steel hex mesh is Widespread useing in oil ,chemical industry ,electric power factory's equipment.

Material
A3,0CR13;1CR13;1CR18NI9; 1CR18NI9TI,SS304,SS316,SS310S,SS201
Gauge*Thickness
1.0mm*10mm,1.2mm*15mm,1.5mm*15mm,1.75mm*20mm;
2.0mm*20mm
Aperture
40mm-100mm
Panel size
0.96mx1.05m(according to the raw material size)
Note
Customers' other requirement is available for us

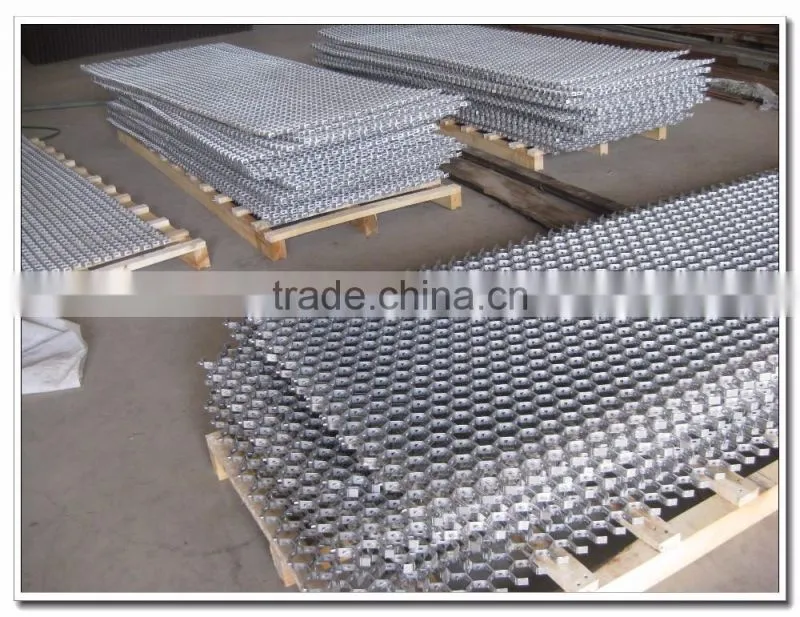

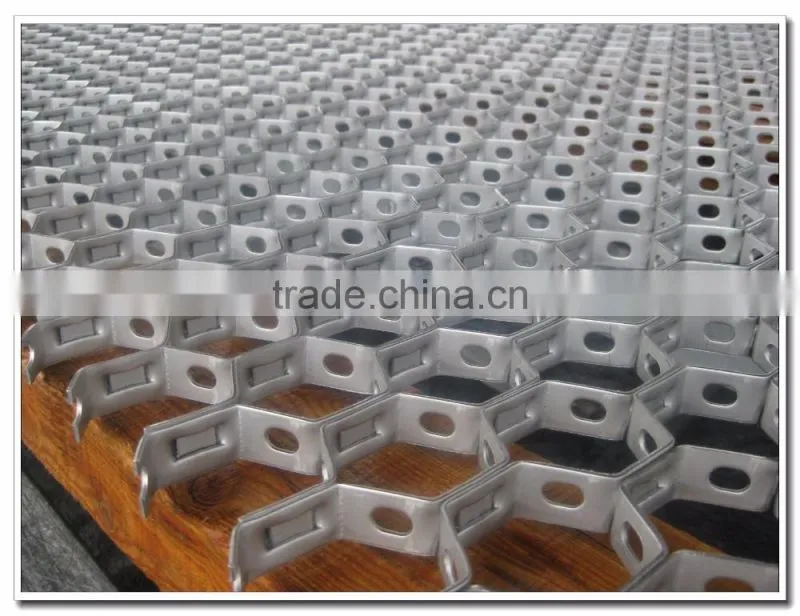

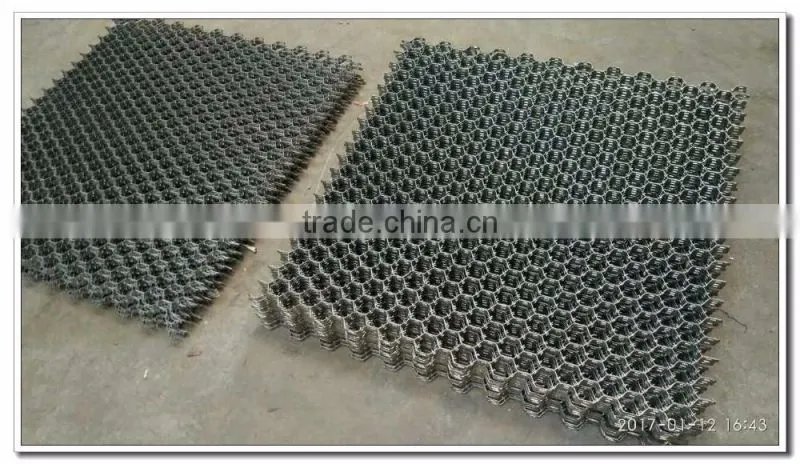

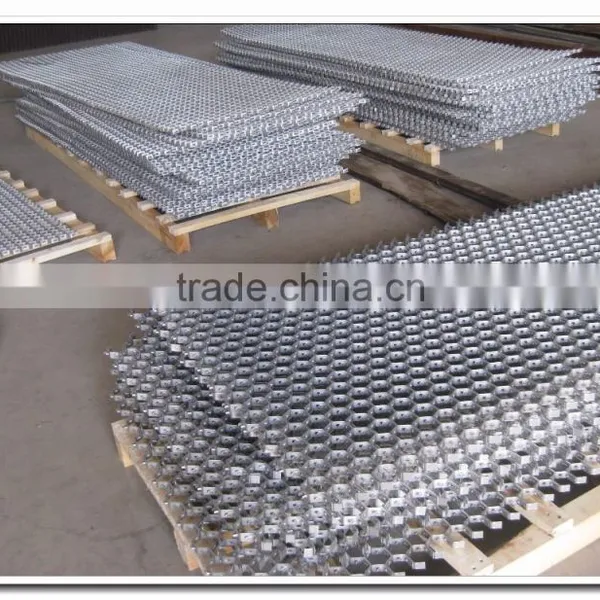

Detailed Images
Packing & Delivery

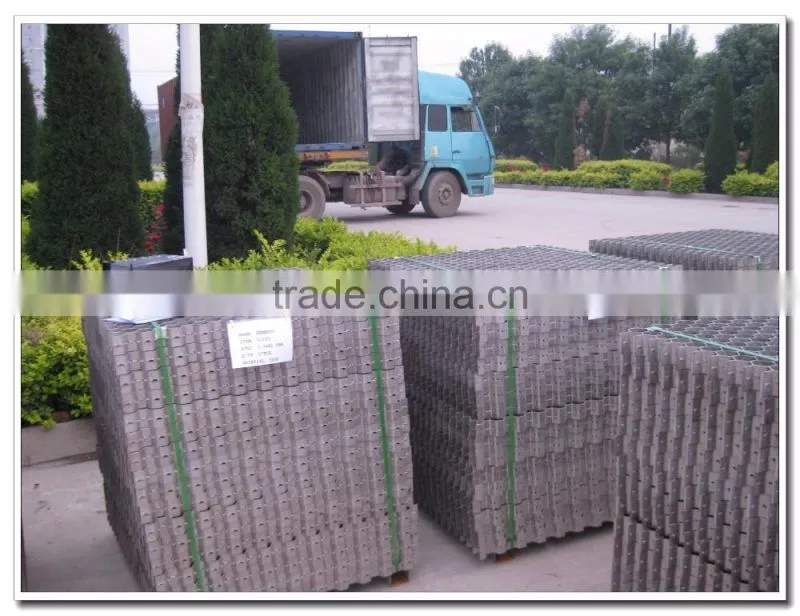

                      310S Hex mesh loading

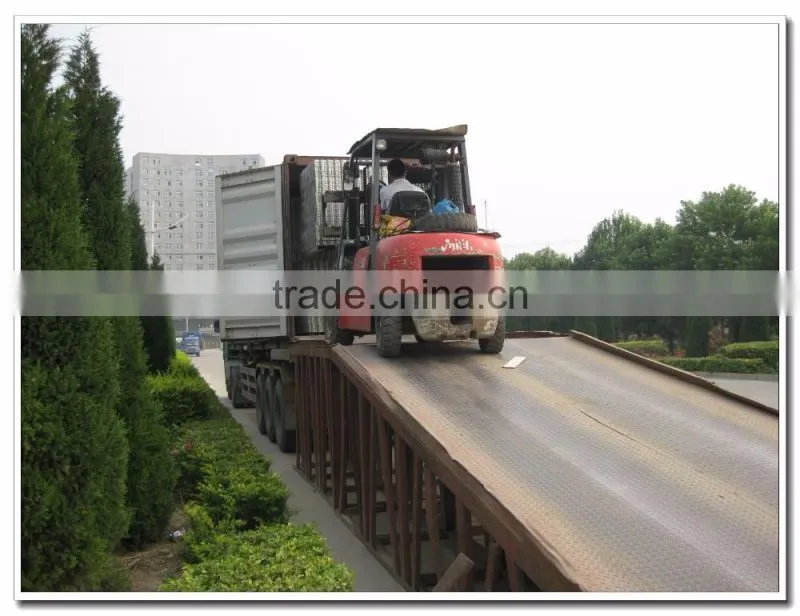

                                      Loading
