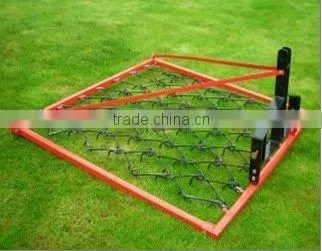

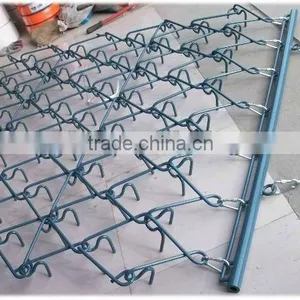

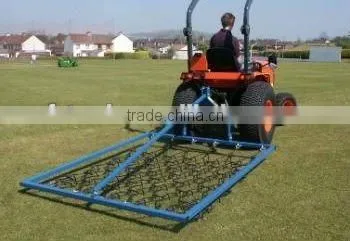

surface smoothing harrows

Specifications

surface smoothing harrow
1.Easy to handle and quick to assemble
2.Various colors
3.Material:Heavy-duty tubular steel



SURFACE SMOOTHING HARROWS

Material: Heavy-duty tubular steel

Assembly: Easy to handle and quick to assemble

Uses: Drag harrows works well by itself or in combination with plows, disks, field cultivators, seeders, fertilizer spreaders, and other equipment.

Types: Trailed Grass Harrows
           Mounted Grass Harrows



Application:
1) Pasture renovation
2) Seed bed preparation
3) Race track maintenance
4) Landscaping preparation
5) sports fields or turf preparation



Specification

Mounted Grass Harrows

Code	GHL6	GHL10	GHL12	GHL14	GHL16
Width	1.8m	3m	3.7m	4.25m	5m
Length	2m	2m	2m	2m	2m
Tine Length	64mmX13mm	64mmX13mm	64mmX13mm	64mmX13mm	64mmX13mm
Total Weight	120kg	250kg	300kg	350kg	400kg













 Trailed Grass Harrows



Code	GH4	GH6	GH8	GH10	GH12
Width	1.2m	1.8m	2.5m	3m	3.7m
Length	2m	2m	2m	2m	2m
Tine Length	64mmX13mm	64mmX13mm	64mmX13mm	64mmX13mm	64mmX13mm
Total Weight	50kg	75kg	100kg	125kg	150kg















 Mini Harrows



A range of mounted and trailed fexible harrows for compact tractors between 8 and 30hp.



 Trailed Drag Harrows



A complete range of different types of harrow section are available, suitable for all harrowing requirements



Mounted Drag Harrows



The mounted drag harrow is designed for the farmer with less than average pasture harrowing but wants the convenience and flexibility of a mounted harrow.
