Farm tire 11.2-24,11.2-38

Specifications

Farm tire 11.2-24,11.2-38
1.Good wear and puncture resistance.
2.Good grip property and big traction propert

 Farm tire 11.2-24,11.2-38





1>Features:

• 1.Agricultyre Tyre
• 2.Higher quality,low price,honest and credit
• 3.size:16.9-30,16.9-28,15-24,9.5-24,28L-26,19.5L-24
• 23.1-26,5.00-14,16.9-34.14.9-28,12-38,9.5-20,7.50-20,
• 10-15,7.50-16,5.50-17,5.00-12 ect



2>Sizes:



Tyre Size	TYRE APPLICATION	PLY	Pattern	Unloaded Inflation Dimension		Static Loaded Radius (mm)	Rolling Circomference(mm)	Type	Rim
										40km/h
				Section Width (mm)	Overall Diameter(mm)					Load Index	Max   Load    (Kgs)	Inflation Pressure(bar)
650/50-22.5	Flotation Implement	16	TRC-03					TL	20.00x22.5
600/50-22.5	Flotation Implement	16	TRC-03	600	1170	510	3380	TL	20.00x22.5	165	5150	2.6
550/60-22.5	Flotation Implement	16	TRC-03	503	1172	521	3592	TL	16.00x22.5	166	5300	4
500/60-22.5	Flotation Implement	16	TRC-03	500	1170	510	3380	TL	16.00x22.5	163	4875	3.2
550/45-22.5	Flotation Implement	16	TRC-03	550	1070	475	3092	TL	16.00x22.5	159	4375	2.8
10.5/80-18	Flotation Implement	10	IMP-01	274	907	405	2657	TL	9.00x18	131	1950	5.1
12.5/80-18	Flotation Implement	12	IMP-01	308	987	438	2892	TL	11.00x18	142	2650	5.1
13.0/65-18	Flotation Implement	14	IMP-01	336	890	398	2608	TL	11.00x18	141	2575	5.8
405/70-20	Flotation Implement	16	MPT-02	418	1097	487	3214	TL	13.00-20/1.0	154	3750	4.8
400/60-15.5	Flotation Implement	14	TRC-02	400	910	380	2564	TL	13.00x15.5	143	2725	4.9
500/50-17	Flotation Implement	18	IMP-05	500	945	416	2750	TL	16.00x17	157	4125	4.4
19.0/45-17	Flotation Implement	14	IMP-05	465	865	389	2578	TL	16.00x17	146	3000	3.8
15.0/55-17	Flotation Implement	18	IMP-05	380	890	395	2608	TL	13.00x17	141	2575	4.9
14.0/65-16	Flotation Implement	14	IMP-05	353	870	388	2549	TL	11.00x16	145	2900	5.5
10.0/75-15.3	Flotation Implement	12	IMP-01	264	780	345	2285	TL	9.00x15.3	130	1900	7.1
11.5/80-15.3	Flotation Implement	14	MPT-02	290	867	380	2540	TL	9.00x15.3	139	2430	6.5
12.5/80-15.3	Flotation Implement	14	IMP-01	312	885	387	2593	TL	9.00x15.3	142	2650	5.8
10.0/80-12	Flotation Implement	10	IMP-01	264	710	313	2080	TL	7.00x12	121	1450	5.4



Pattern Serial Number	Tire Size	P.R	Style	Standard Rim	Single Load(kg)	Inflated Size of New Tire
						Out.D(mm)	Sec.W(mm)
R2	6.50-16	6	TT	5.00F	565	765	180
	7.50-16	6	TT	5.50F	695	810	205
	8.30-20	6	TT	W7	705	895	210
	8.30-24	8	TT	W7	1135	995	210
	9.5-24	8	TT	W8	895	1150	240
	11-32	8	TT	W10	1080	1490	305
	11.2-24	8	TT	W10	1055	1105	285
	12.4-28	8	TT	W11	1255	1260	315
	14.9-24	8	TT	W13	1760	1265	380
	14.9-28	8	TT	W13	2120	1365	378
	16.9-34	8	TT	W15L	2605	1585	430
	19.5-24	8	TT	W17	1900	1345	495

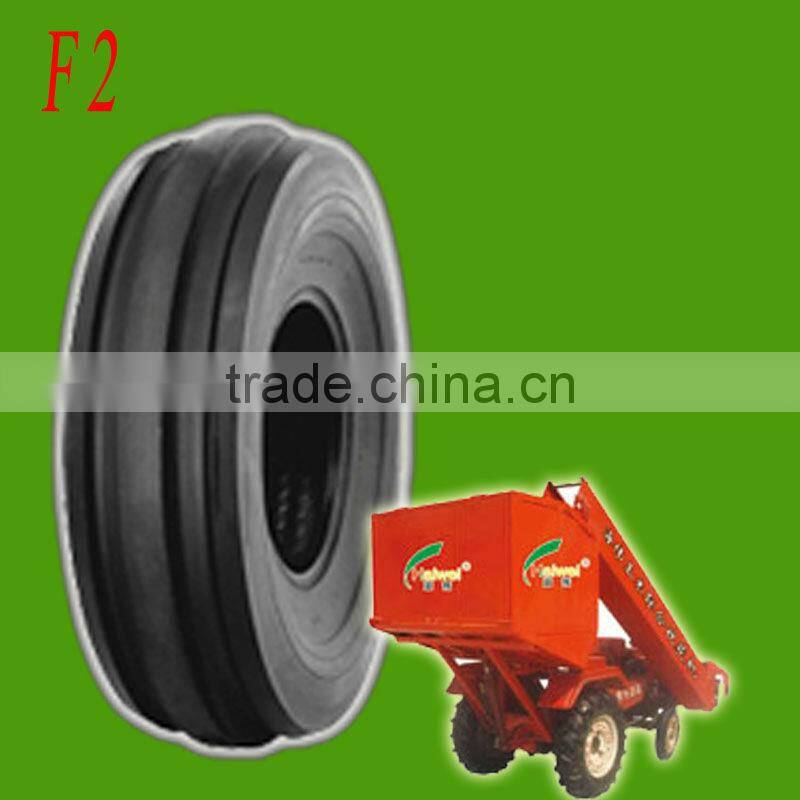

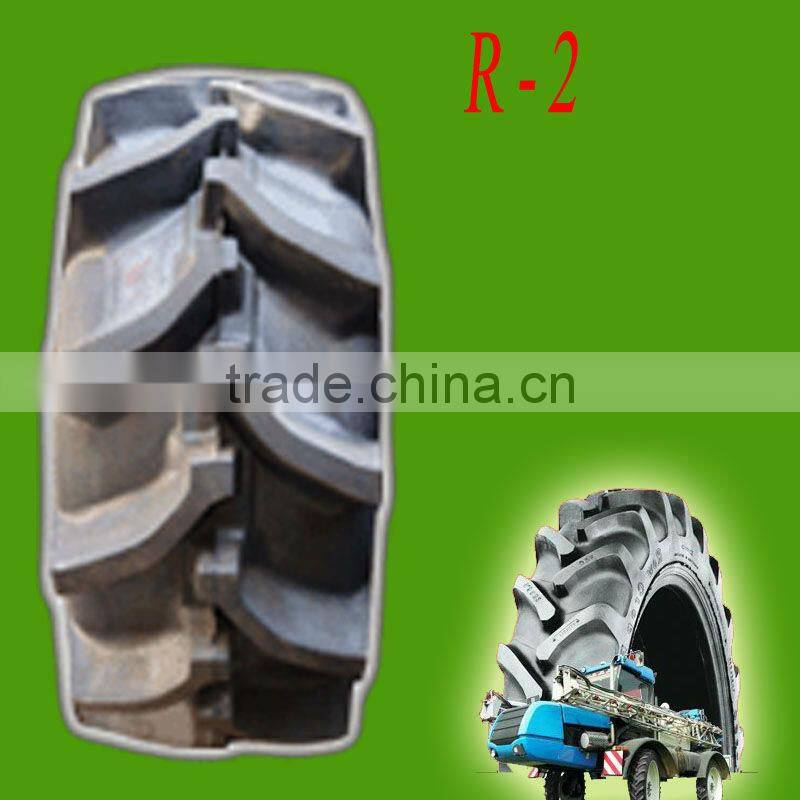

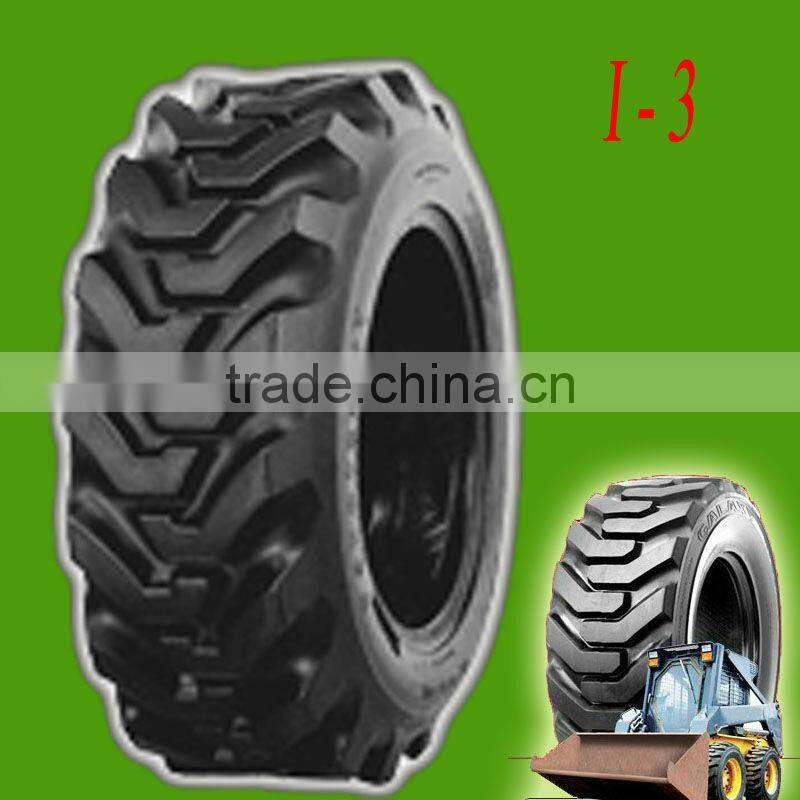

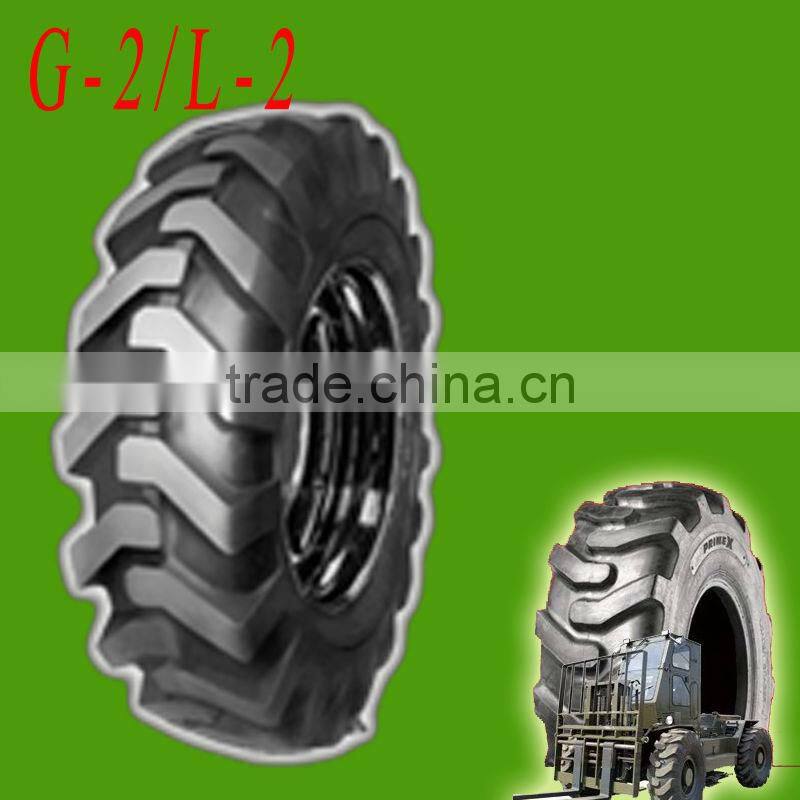

3> Patterns







4>Contact:



Company	TYREWAY LIMITED	TBR+PCR+OTR+TBB
Contact	Ada	Foreign Trade Dept.
Email	ada(at)tyrewa(dot)com	Skype: angela_20111



Contact me for further information
