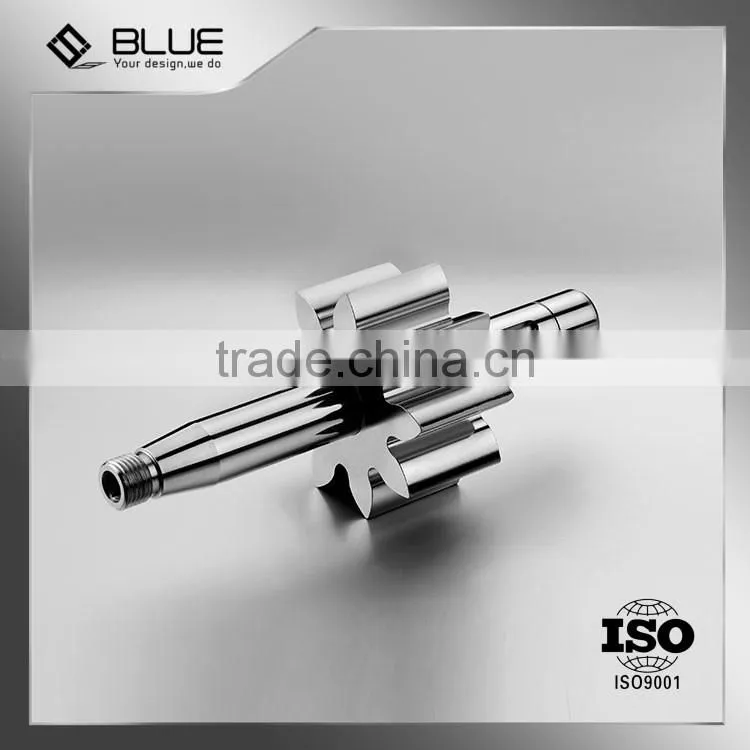

car transmission gear box heavy gear
- 10000 Piece / Pieces per Month
- Ningbo / Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
-
Large size high-precision non-standard steel gear, ring gear
-
Customized Reducer Planet Carrier Swing Gear
-
Customized non-standard ring gear large size steel gear rings
-
Inner ring gear high precision ring and pinion gear
-
Factory customized large ring gear high quality steel gear ring
-
durable large size ring gear high precision ring and pinion gear
Product Details
| Standard or Nonstandard: | Nonstandard | Tooth Profile: | Herringbone Gear | Direction: | Left Hand |
| Material: | Other, Steel, 20CrMnTi | Processing: | Other, Precision Casting, Machining | Pressure Angle: | 20° |
| Place of Origin: | Zhejiang, China | Model Number: | heavy gear | Brand Name: | BLUE |
Product Description
car transmission gear box heavy gear
| BG0001 | BG0002 | BG0003 | BG0004 | BG0005 |
| BG0006 | BG0007 | BG0008 | BG0010 | BG0011 |
| BG0013 | BG0014 | BG0016 | BG0017 | BG0018 |
| BG0020 | BG0021 | BG0022 | BG0023 | BG0024 |
| BG0025 | BG0027 | BG0028 | BG0029 | BG0048 |
| Material | Carbon Steel | SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214L...... |
| Alloy Steel | 20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5...... | |
| Brass/Bronze | HPb59-1, H70, CuZn39Pb2, CuZn40Pb2, C38000, CuZn40...... | |
| Machining Process | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping | |
| Modules | 1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5......8.0 | |
| Tolerance Control | Outer Diameter | ±0.005 mm |
| Length Dimension | ±0.05 mm | |
| Teeth Accuracy | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 | |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... | |
| Surface Treatment | Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating...... | |
| Standard | European, American or Britain Standard | |
| Machine Name | Machine Quantity | Brand & Feature |
| Gear Hobbing Machine | 14 Units | CHINA CHMTI |
| Gear Shaving Machine | 4 Units | CHINA N2M |
| Gear Shaping Machine | 7 Units | CHINA N2M |
| Gear Grinding Machine | 21 Units | Shanghai Machine Tool |
| Chamfering Machine | 2 Units | CHINA N2M |
| Drilling Machine | 3 Units | Hangzhou Xihu Driling Machine Co., Ltd |
| CNC Milling Machine | 2 Units | Germany Hans |
| Gear Shape Detector | 1 Unit | Harbin Measuring & Cutting Tool Group |
| Heat Treatment Machine | 1 Unit | Jiangsu Standard Electric Furnace Co., Ltd |
1. How to get a quotation?
Please send us drawings in igs, dwg, step etc. together with detailed PDF.
If you have any requirements, please note, and we could provide professional advice for your reference.
2. What if we do not have drawing?
Samples would be available, and we would send you drawing to confirm.
Of course, we would ensure the safety of the drawing.
3. How to pay?
For small quantity, we could provide Paypal, Paypal commission will be added to the order.
For the big one, T/T is preferred.
4. How to ship?
For small quantity, we have cooperation with TNT, FEDEX, UPS etc.
For big quantity, air or sea would be available for you to choose.
5. What about the packing details?
We attached our normal packing details.
If you have any special requirements, we would be willing to help.
6. What about the delivery time?
It would be 20-30 days normally for the parts to be ready and we had a system to ensure the time.
When you made your order, you would know.
Contact Us
- Ningbo Blue Machines Co., Ltd.
- Contact nameTony Tong
- AddressRoom 1810, 1# Building, Wante Business Centre, Hi-tech Zone, Ningbo City, Zhejiang Province, CHINA Ningbo,Zhejiang
