Non Woven Bag Making Machine Bearing 53310 With Carbon Steel

Non Woven Bag Making Machine Bearing 53310 With Carbon Steel thumbnail-1
Non Woven Bag Making Machine Bearing 53310 With Carbon Steel photo-1
US$ 4.26 - 4.26 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
50,
Outside Diameter:
95,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 50,
Outside Diameter 95,
Model Number 53310
Precision Rating ABEC1 3 5 7 9
Seals Type OPEN
Number of Row Single Row
Place of Origin Shandong, China

Non woven bag making machine bearing 53310 with carbon steel

Descriptions of Non woven bag making machine bearing 53310

Thrust bearings are designed to handle axial loads while operating at high speed. Bearings are composed of bearing rings with raceway grooves for the balls. Double direction thrust ball bearings can support axial load in both directions. Neither style can be subjected to radial loads. Available in bore dimension range from 10mm to 560mm.

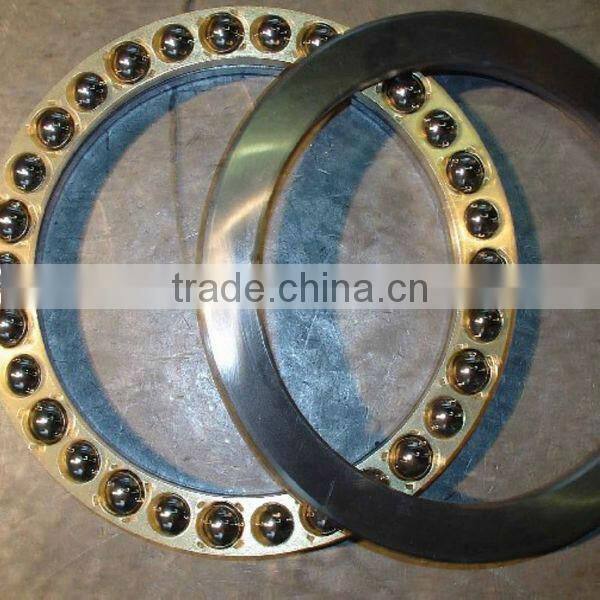

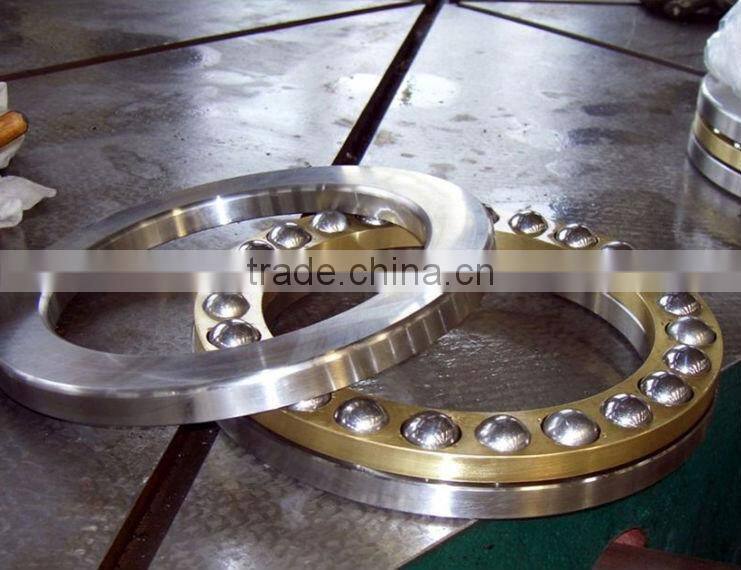

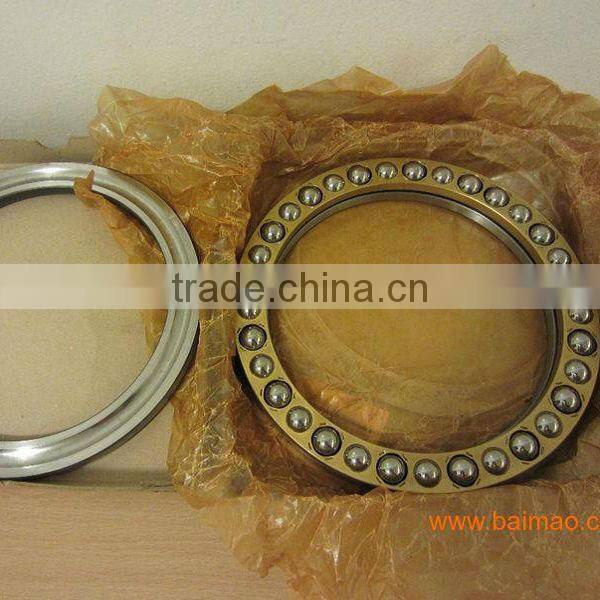

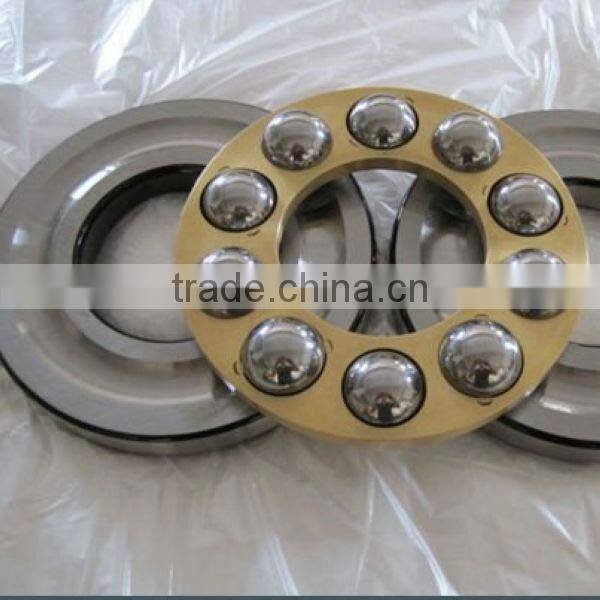

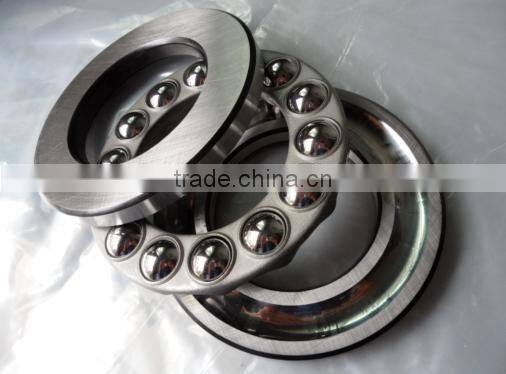

Thrust ball bearings consist of shaft washer, a housing washer and a ball and cage thrust assembly. They are separable which means that mounting is simple. They can accommodate axial loads in one direction only and must not be subjected to any radial load.

Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They can sustain axial loads but no radial loads. For Single-Direction Thrust Ball Bearings, pressed steel cages and machined brass cages are usually used The cages in Double- Direction Thrust Ball Bearings are the same as those in Single-Direction Thrust Ball Bearings of the same diameter series.

Single direction thrust ball bearings consist of a shaft washer, a housing washer and a ball and cage assembly. These bearings can only handle thrust loads in one direction.

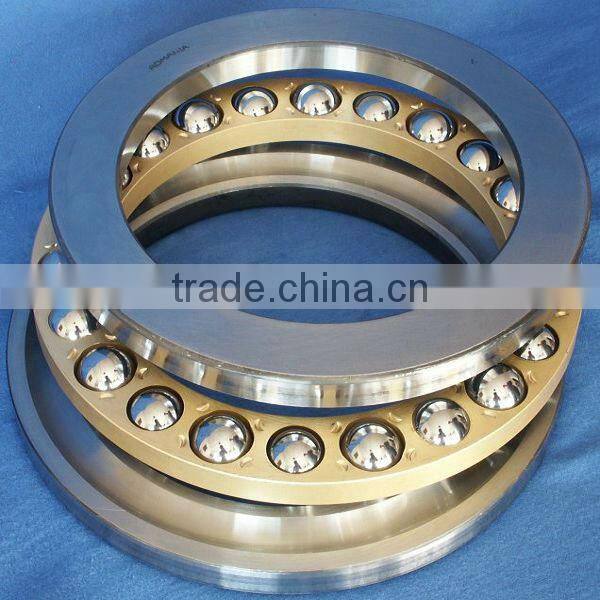

Double direction thrust ball bearings consist of two housing washers, two ball and cage assemblies and one shaft washer. These bearings can handle thrust loads from two directions.

1. Thrust ball bearing can handle loads in the axial direction only.
2. Bearing rings mounted on the shaft are called shaft washers, while those mounted in the housing are called housing washers.
3. Both washers contain raceways for the balls.
4. Thrust ball bearings are available as both single an bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of balls.
5. The center washer is located in axial direction by a shaft shoulder and sleeve.
6. Care must be taken in handling to prevent damage to separate rings and ball assemblies.
7. The thrust ball bearings are Available in two designs: single direction and double direction.
8. Material: bearing steel, high chrome, carbon steel, stainless steel, ect.

Type of thrust ball bearing

1. Single way thrust ball bearing

2. Double way thrust ball bearing

3. Flat thrust ball bearing



Application

Crane hook, vertical pumps, vertical centrifugal,

lifting jack,

low speed reducer,

Component

Seat, shaft ring and ball cage

Single way thrust ball bearing

Seat, shaft ring and ball cage, separate


Cage: pressed steel, Injection of glass fiber

 reinforced

nylon 6.

1.One-piece machine cutting brass cage

2.One-piece machine cutting copper steel cage

3.Modular machine cutting brass cage



Flat thrust ball bearing

Low speed, long life


Application:1.the elevator parts/plastic machinery

2.office equipment/medical apparatus and

instruments

3.Stepper motor/deceleration speed change device

4.Pressure rotor/fitness and sports equipment

 Non woven bag making machine bearing 53310 with carbon steel

Specifications of Non woven bag making machine bearing 53310



Code Bearing
Code 		53310
Housing
washer 		U310
Boundary dimensions (mm) d

50
D 95
H 34.4
r1/2 min 1.1
d1 95
D1 52
D2 72
D3 100
C 11
H1 37
R 72
S 28

Basic Load(KN) Cr 88.4
Cor 173
Limiting Grease 1800
Oil 2600
shoulder dimensions da(max) 77
Da(max) 72
ra(max) 1

Mass(kg) Approx 0.97
Housing washer 0.23



Non woven bag making machine bearing 53310 with carbon steel

Featurs of  Non woven bag making machine bearing 53310
Bearing of this type consist of the washers with raceway and the assembly of ball and cage. The washer that contacts the shaft is called shaft washer, and the one attached to the housing is called housing washer.

Thrust bearings in double directions have a central washer connected to the shaft. Single direction bearings can carry axial load in one direction, and double direction bearings can carry axial load in two directions. The bearings with housing washer which has speherical mounting surface is self-alignable, which can reduce the effects of mounting error.

Non woven bag making machine bearing 53310 with carbon steel



Cages:



Depending on the bearing series and size, thrust ball bearings are fitted as standard with one of the following cages:



- a pressed steel cage, no designation suffix



- a one-piece machined brass cage, designation suffix M



- a one-piece machined steel cage, designation suffix F



- a two-piece machined brass cage, designation suffix M .



Supplementary designations



The designation suffixes used to identify certain features of thrust ball bearings are explained in the following.



F-      Machined steel cage, ball centred



JR-   Cage comprising two flat pressed steel washers, ball centred



M-     Machined brass cage, ball centred



P5-   Increased dimensional and running accuracy to ISO tolerance class 5



P6-   Increased dimensional and running accuracy to ISO tolerance class 6



TN9- Injection moulded cage of glass fibre reinforced polyamide 66, ball centred
Non woven bag making machine bearing 53310 with carbon steel



Model numbers of thrust ball bearings



BEARING  NO.   d(mm)   D(mm)   T(mm)   Cr(KN)   Cor(KN)   Grease(r/min)   oil(r/min)   WEIGHT(KG)
  51103   17   30   9   10.8   18.2   5300   7500   0.024
  51104   20   35   10   14.2   24.5   4800   6700   0.036
  51105   25   42   11   15.2   30.2   4300   6000   0.055
  51106   30   47   11   16   34.2   4000   5600   0.062
  51107   35   52   12   18.2   41.5   3800   5300   0.077
  51108   40   60   13   26.8   62.8   3400   4800   0.11
  51109   45   65   14   27   66   3200   4500   0.14
  51110   50   70   14   27.2   69.2   3000   4300   0.15
  51111   55   78   16   33.8   89.2   2800   4000   0.22
  51112   60   85   17   40.2   108   2600   3800   0.27
  51113   65   90   18   40.5   112   2400   3600   0.31
  51114   70   95   18   40.8   115   2200   3400   0.33
  51115   75   100   19   48.2   140   2000   3200   0.38
  51116   80   105   19   48.5   145   1900   3000   0.4





 Non woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steelNon woven bag making machine bearing 53310 with carbon steel
