Automobile Parts Nylon Pulley Ball Bearings 52316
US$ 34 - 47
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
80,
Outside Diameter:
140,
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance Thrust Ball Bearings 52330 SamplesUS$ 129 - 129MOQ: 100 Pieces -
Sweden Thrust Ball Bearings 51407 Dimension ManufacturerUS$ 3 - 3MOQ: 100 Pieces
-
Plastic Thrust Ball Bearings 8111 ManufactureUS$ 2 - 2MOQ: 100 Pieces
-
Ball Bearing Size 51101 Thrust Ball BearingUS$ 2 - 2MOQ: 100 Pieces
-
Koyo Thrust Ball Bearings 51104 BearingUS$ 1 - 1MOQ: 100 Pieces
Brand Name
CLUNT
Bore Size
80,
Outside Diameter
140,
Model Number
52316
Precision Rating
P0 P6 P5 P4
Seals Type
OPEN, open
Number of Row
Single Row
Place of Origin
Shandong, China
Automobile parts nylon pulley ball bearings 52316
Product Description
Detailed informations of automobile parts bearings 52316
| Thrust ball bearings, double direction | |||||||||||
| Product information | Tolerances , see also text | ||||||||||
| Recommended fits | |||||||||||
| Shaft and housing tolerances | |||||||||||
| Principal dimensions | Basic load ratings | Fatigue | Minimum | Speed ratings | Mass | Designation | |||||
| dynamic | static | load | load | Reference | Limiting | ||||||
| limit | factor | speed | speed | ||||||||
| d | D | H | C | C0 | Pu | A | |||||
| mm | kN | kN | - | r/min | kg | ||||||
| 65 | 140 | 79 | 159 | 390 | 13,7 | 0,79 | 1700 | 2400 | 4,94 | 52316 | |
| Main bearing dimensions | DIN 715 |
| Basic dynamic load ratings | DIN ISO 281 |
| Dimensional and geometric tolerances | DIN 620-3 (ISO 199), tolerance class PN |
| Through-hardening steel for inner and outer rings and rollers | ISO 683-17 |
| Steel strip for cage | EN 10139, SAE J403 |
| Load carrying capacity and life | DIN ISO 281 Appendix 1 |
| System for creating part numbers for rolling bearings | DIN 623-1 |
automobile parts bearings 52316 descriptions
Double-row, double-direction thrust ball bearing has a 90-degree contact angle, steel cages, and an open construction. It is suitable for moderate-speed applications that support heavy axial loads in both directions and no radial loads. This deep-groove thrust ball bearing consists of two housing locating washers (rings), a shaft locating washer, and two ball and cage assemblies. The washers have grooved raceways that conform to the balls rotating between them, allowing higher speeds and thrust bearing capacity than bearings with flat raceways. The double-row design supports bidirectional thrust loads with minimum axial deflection, increasing the load carrying capacity, and the open construction allows for the bearing to be lubricated in place. This bearing has a 90-degree contact angle in which the ball and inner and outer raceway contact points are on a plane parallel to the axial load, which enables the bearing to receive high axial force. The balls and washers are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads, and the sheet steel cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. This bearing is separable so it mounts more easily than nonseparable bearings because its components can be installed independently. It can be used at operating temperatures from -30 degrees C to 150 C (-22 degrees F to 302 F). This thrust ball bearing has a PN (normal) tolerance class rating for dimensional accuracy and is suitable for applications including machine tool drive shafts, automotive steering gears and clutches, rotary tables, outboard motor propellers, and household appliances.
Product Features
- Double direction, deep-groove thrust ball bearing for moderate speed applications that support heavy axial loads in both directions
- Open bearing for lubrication applied in place
- Through-hardened chromium steel for durability and resistance to deformity under heavy loads
- Sheet steel retainer evenly spaces rollers for reduced friction, vibration, and noise
- Grooved raceways for higher speeds and thrust-bearing capacity than flat washers
Model numbers
| Thrust ball bearing | |||||
| Bearing No. | Double row | ||||
| 51100 | 8100 | 51320M | 8320 | 52205 | 38205 |
| 51200 | 8200 | 51420 | 8420 | 52305 | 38305 |
| 51101 | 8101 | 51122 | 8122 | 52406 | 38406 |
| 51201 | 8201 | 51222 | 8222 | 52206 | 38206 |
| 51102 | 8102 | 51322 | 8322 | 52306 | 38306 |
| 51202 | 8202 | 51422 | 8422 | 52407 | 38407 |
| 51202/YB2 | 8202K | 51124 | 8124 | 52207 | 38207 |
| 51103 | 8103 | 51224 | 8224 | 52208 | 38208 |
| 51203 | 8203 | 51324 | 8324 | 52307 | 38307 |
| 51104 | 8104 | 51126 | 8126 | 52408 | 38408 |
| 51204 | 8204 | 51226 | 8226 | 52209 | 38209 |
| 51105 | 8105 | 51326 | 8326 | 52309 | 38309 |
| 51205 | 8205 | 51426 | 8426 | 52409 | 38409 |
| 51305 | 8305 | 51128 | 8128 | 52210 | 38210 |
| 51405 | 8405 | 51228 | 8228 | 52310 | 38310 |
| 51106 | 8106 | 51328 | 8328 | 52410 | 38410 |
| 51206 | 8206 | 51428 | 8428 | 52211 | 38211 |
| 51306 | 8306 | 51130 | 8130 | 52311 | 38311 |
| 51406 | 8406 | 51230 | 8230 | 52411 | 38411 |
| 51107 | 8107 | 51330 | 8330 | 52212 | 38212 |
| 51207 | 8207 | 51132 | 8132 | 52312 | 38312 |
| 51307 | 8307 | 51232 | 8232 | 52412 | 38412 |
| 51407 | 8407 | 51330 | 8332 | 52413 | 38413 |
| 51108 | 8108 | 51134 | 8134 | 52213 | 38213 |
| 51208 | 8208 | 51234 | 8234 | 52214 | 38214 |
| 51308 | 8308 | 51334 | 8334 | 52313 | 38313 |
| 51408 | 8408 | 51136 | 8136 | 52314 | 38314 |
| 51109 | 8109 | 51236 | 8236 | 52414 | 38414 |
| 51109M | 8109 | 51336 | 8336 | 52215 | 38215 |
| 51209 | 8209 | 51152 | 8152 | 52315 | 38315 |
| 51309 | 8309 | 51252 | 8252 | 52415 | 38415 |
| 51409 | 8409 | 51160 | 8160 | 52216 | 38216 |
| 51110 | 8110 | 51260 | 8260 | 52316 | 38316 |
| 51210 | 8210 | 51164 | 8164 | 52417 | 38417 |
| 51310 | 8310 | 51264 | 8264 | 52217 | 38217 |
| 51410 | 8410 | 51168 | 8168 | 52317 | 38317 |
| 51111 | 8111 | 51268 | 8268 | 52418 | 38418 |
| 51211 | 8211 | 51368 | 8368 | 52218 | 38218 |
| 51311 | 8311 | 51172 | 8172 | 52318 | 38318 |
| 51411 | 8411 | 51272 | 8272 | 52420 | 38420 |
| 51112 | 8112 | 51180 | 8180 | 52220 | 38220 |
| 51112 | 8212 | 51280 | 8280 | 52320 | 38320 |
| 51312 | 8312 | 51184 | 8184 | 52422 | 38422 |
| 51412 | 8412 | 51784 | 8784 | 52222 | 38222 |
| 51113 | 8113 | 51188 | 8188 | 52322 | 38322 |
| 51213 | 8213 | 59188/YB2 | 9008188 | 52224 | 38224 |
| 51313 | 8313 | 51288 | 8288 | 52324 | 38324 |
| 51413 | 8413 | 51192 | 8192 | 52426 | 38426 |
| 51114 | 8114 | 51292 | 8292 | 52226 | 38226 |
| 51214 | 8214 | 51196 | 8196 | 52326 | 38326 |
| 51314 | 8314 | 51396 | 8396 | 52428 | 38428 |
| 51414 | 8414 | 511/500 | 81/500 | 52228 | 38228 |
| 51115 | 8115 | 512/500 | 81/500 | 52328 | 38328 |
| 51215 | 8215 | 593/500 | 90083/500 | 52430 | 38430 |
| 51315 | 8315 | 511/530 | 81/530 | 52230 | 38230 |
| 51415 | 8415 | 590/560 | 90089/560 | 52330 | 38330 |
| 51116 | 8116 | 591/600 | 90081/600 | 52232 | 38232 |
| 51216 | 8216 | 512/630 | 82/630 | 52332 | 38332 |
| 51316 | 8316 | 510/670 | 10089/670 | 52234 | 38234 |
| 51416 | 8416 | 511/670 | 81/670 | 52236 | 38236 |
| 51117 | 8117 | 572/710 | 70082/710 | 52334 | 38334 |
| 51217 | 8217 | 592/710 | 90082/710 | 52336 | 38336 |
| 51317 | 8317 | 591/750 | 97081/750 | 52238 | 38238 |
| 51417 | 8417 | 517/780 | 87/780 | 52240 | 38240 |

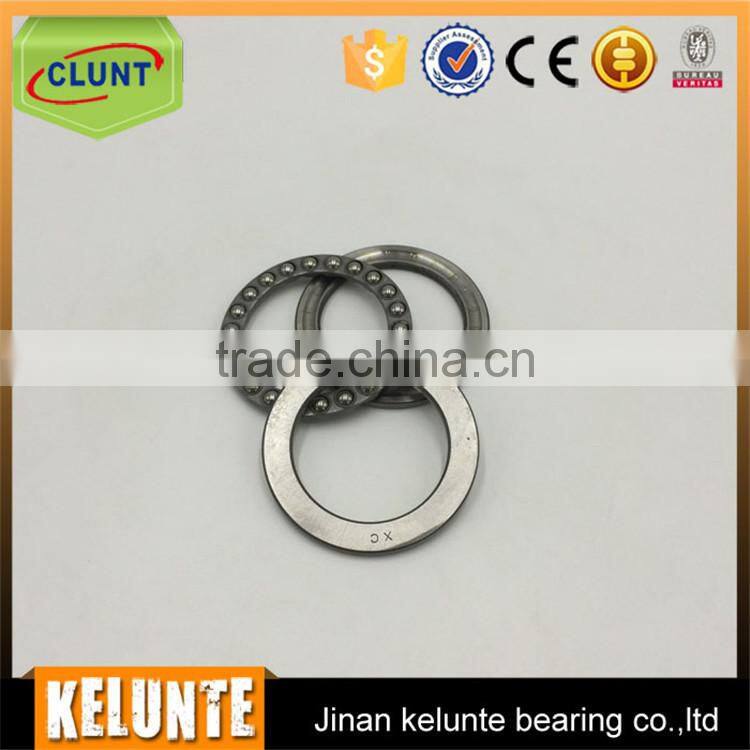

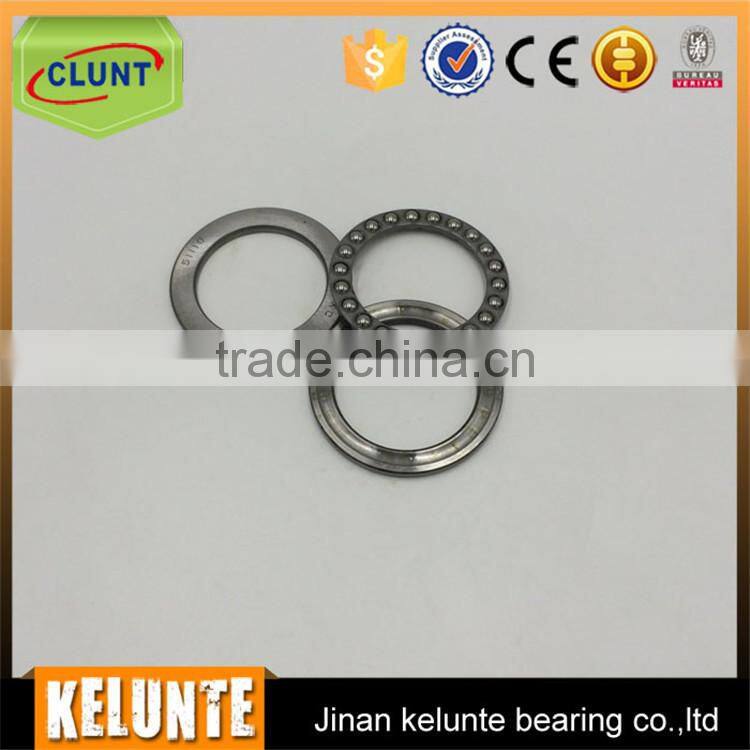

Pictures of product
