Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing

Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing thumbnail-1
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing thumbnail-2
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing thumbnail-3
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing thumbnail-4
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing thumbnail-5
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing thumbnail-6
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing photo-1

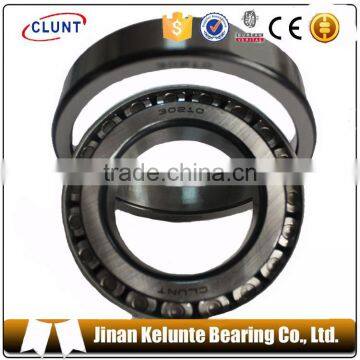

Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing photo-2
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing photo-3
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing photo-4
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing photo-5
Dimensionally Interchangeable With Other Bearing Manufacturers 32316 Taper Roller Bearing photo-6
US$ 21 - 21 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
80,
Outside Diameter:
170,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 80,
Outside Diameter 170,
Model Number 32316
Precision Rating P6 P5 P4
Seals Type UNSEALED
Number of Row Single Row
Place of Origin Shandong, China

taper roller bearing 32316

Product Description



Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing



China Factory Inch Taper Roller Bearings



Company JINAN KELUNTE BEARING CO., LTD.
Product name Taper Roller Bearing 32316
Type taper roller bearings
Material Chrome steel
Cage Steel cage
Precision P0,P6,P5,P4,P2
clearance codes C2, C3, C4, C5
Quality ISO9001:2000 Standard
Bore size 80mm
Outer diameter 170mm
Thickness 62mm
Seal type Open and Seal,Z,RZ,RS,2RS,2RZ
Ball row number Single row and double row
Features Suitable for high speed even extremely high speed; Durable,less maintenance frequency; Simple structure, low cost, Various sizes and designs.
Application in precision instrument, low noise motor, automobile and other machine industry.
Payment Terms and Delivery
Service OEM service
Deliver time Normally ready goods in stock
Package Standard exported package or according to our costomers' requirement
Port Shanghai, Qingdao, Guangzhou
Payment terms A:100% LC at sight
B:30% TT in advance.70% against B/L





Taper Roller Bearings Description:




1. Taper roller bearing mainly bear radial primarily diameter, the axial load. Bearing capacity depends

on the Angle of the outer ring raceway, the greater the Angle, the greater the carrying

capacity.



2. Taper roller bearing type belongs to the separation bearing, , according to the bearing the number

of columns of the scroll body can be divided into single row, double row and four row circular cone roller

 bearings.


3.Single row inch taper roller bearing clearance to users in the installation adjustment; Double row and four

row circular cone roller bearings clearance has according to user requirements for a given when the

products leave the factory, not the user.





Taper Roller Bearings Specifications





1. Allows maintenance-free and long-life operation



2. suitable for the radial and axial loaded



3. With low and smoothly coefficient of friction and without stick-slip effects



4. Suitable for dirty, corrosion, impact load and edge loading


5. The base material provided a good shock-absorbing capacity

6. Can be used over a large temperature range.


7. Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions

8. With low wear rate and long life service







Taper Roller Bearings Applications:



Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.



2.Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.



3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.


4.The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.



5.Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.



6.Car: truck, road, bus, car, modified car, motorcycle ,etc.

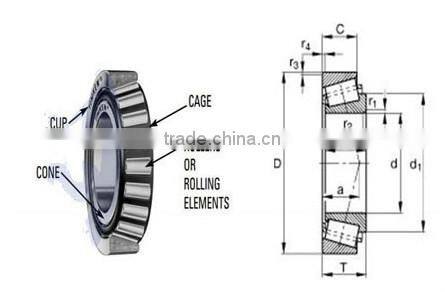

Product type



Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing
Bearing 31304-31330 Principal Dimensions (mm) Mass
No. d D B kg
31304 20 52 15 0.175
31305 25 62 17 0.26
31306 30 72 19 0.39
31307 35 80 21 0.52
31308 40 90 23 0.72
31309 45 100 25 0.95
31310 50 110 27 1.2
31311 55 120 29 1.55
31312 60 130 31 1.9
31313 65 140 33 2.35
31314 70 150 35 2.95
31315 75 160 37 3.5
31316 80 170 39 4.05
31317 85 180 41 4.6
31318 90 190 43 5.9
31319 95 200 45 6.95
31320 100 215 51 8.6
31321 105 225 53 9.65
31322 110 240 57 12
31324 120 260 62 15.3
31326 130 280 66 19.1
31328 140 300 70 23
31330 150 320 75 28
taper roller bearing 32203 - 32244 series
Bearing Principal Dimensions (mm) Mass
No. d D B kg
32203 17 40 16 0.105
32204 20 47 18 0.151
32205 25 52 18 0.19
32206 30 62 20 0.3
32207 35 72 23 0.44
32208 40 80 23 0.53
32209 45 85 23 0.58
32210 50 90 23 0.61
32211 55 100 25 0.83
32212 60 110 28 1.15
32213 65 120 31 1.5
32214 70 125 31 1.6
32215 75 130 31 1.7
32216 80 140 33 2.05
32217 85 150 36 2.6
32218 90 160 40 3.35
32219 95 170 43 4.05
32220 100 180 46 4.9
32221 105 190 50 6
32222 110 200 53 7.1
32224 120 215 58 9.15
32226 130 230 64 11.5
32228 140 250 68 14.5
32230 150 270 73 17.5
32232 160 290 80 25.5
32234 170 310 86 28.5
32236 180 320 86 29.5
32238 190 340 92 36
32240 200 360 98 42.5
32244 220 400 108 60
taper roller bearing 30202 - 30220 series
Bearing Principal Dimensions (mm) Mass
TYPE d(mm) D(mm) B(mm) W(kg)
30202 15 35 11 0.053
30203 17 40 12 0.079
30204 20 47 14 0.126
30205 25 52 15 0.154
30206 30 62 17.5 0.231
30207 35 72 17 0.331
30208 40 80 18 0.422
30209 45 85 19 0.474
30210 50 90 20 0.529
30211 55 100 21 0.713
30212 60 110 22 0.904
30213 65 120 23 1.13
30214 70 125 24 1.26
30215 75 130 25 1.36
30216 80 140 26 1.67
30217 85 150 31 2.06
30218 90 160 30 2.54
30219 95 170 32 3.04
30220 100 180 34 3.72
taper roller bearing 30303 - 30330 series
Bearing No. Dimension(mm) Weight
Type d D B (kg)
30303 17 47 14 0.129
30304 20 52 15 0.165
303/22 22 56 16 0.208
30305 25 62 17 0.263
303/28 28 68 18 0.341
30306 30 72 19 0.387
303/32 32 75 20 0.435
30307 35 80 21 0.515
30308 40 90 23 0.747
30309 45 100 25 0.984
30310 50 110 27 1.28
30311 55 120 29 1.63
30312 60 130 31 1.99
30313 65 140 33 2.43
30314 70 150 35 2.94
30315 75 160 37 3.63
30316 80 170 39 4.07
30317 85 180 41 4.88
30318 90 190 43 5.65
30319 95 200 45 6.7
30320 100 215 47 8.05
30321 105 225 49 9.15
30322 110 240 50 11
30324 120 260 55 13.9
30326 130 280 58 16.6
30328 140 300 62 20.1
30330 150 320 65 24.2







Product Picture

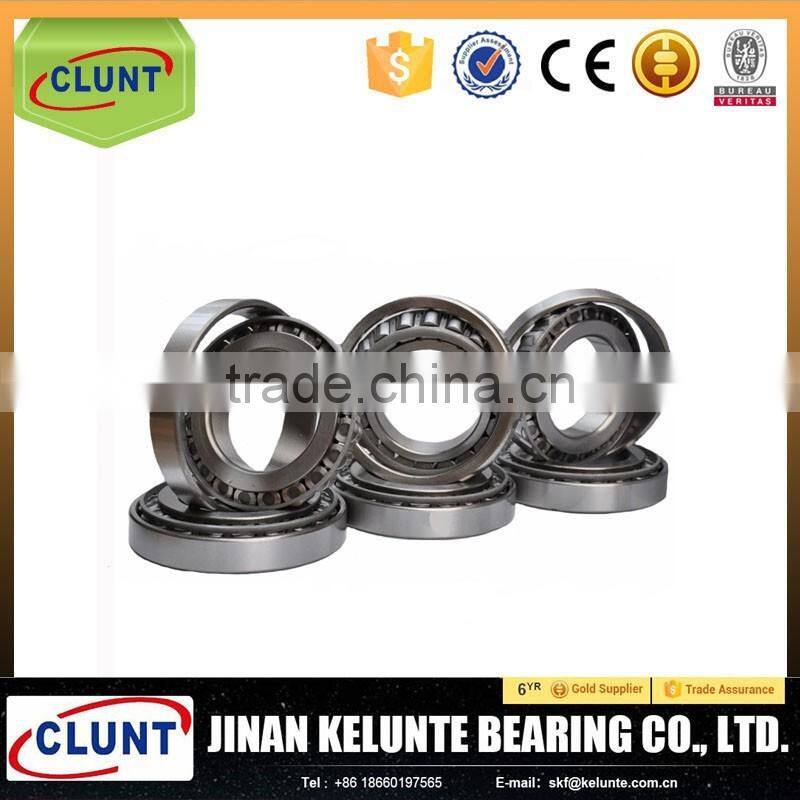

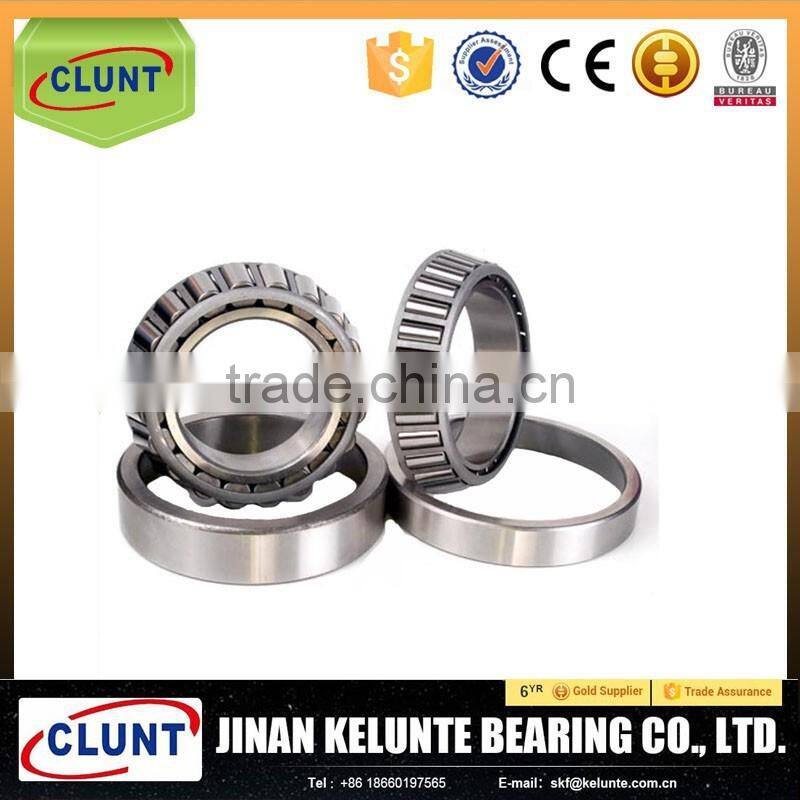

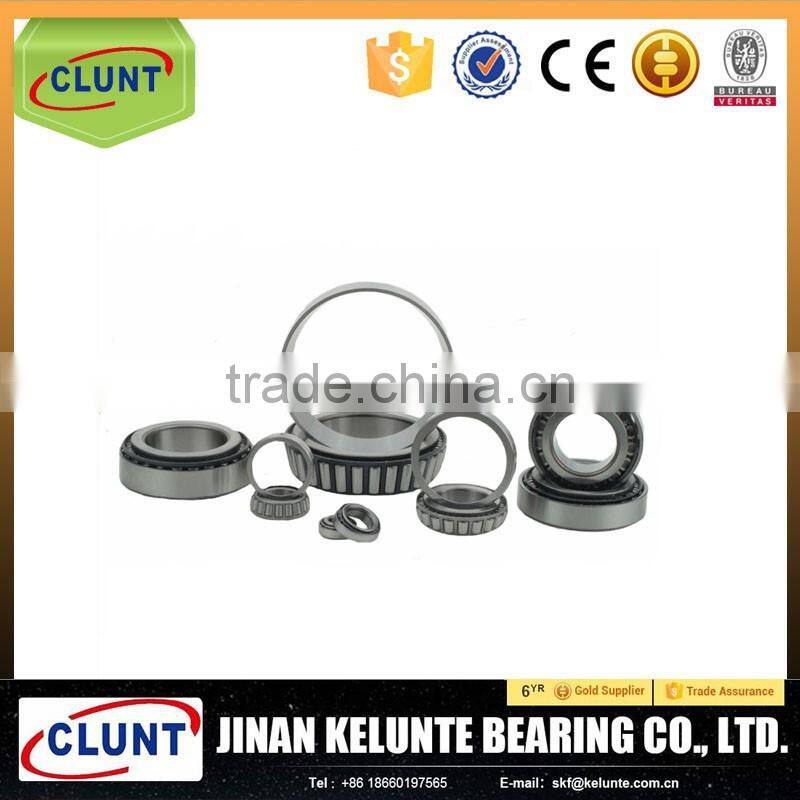

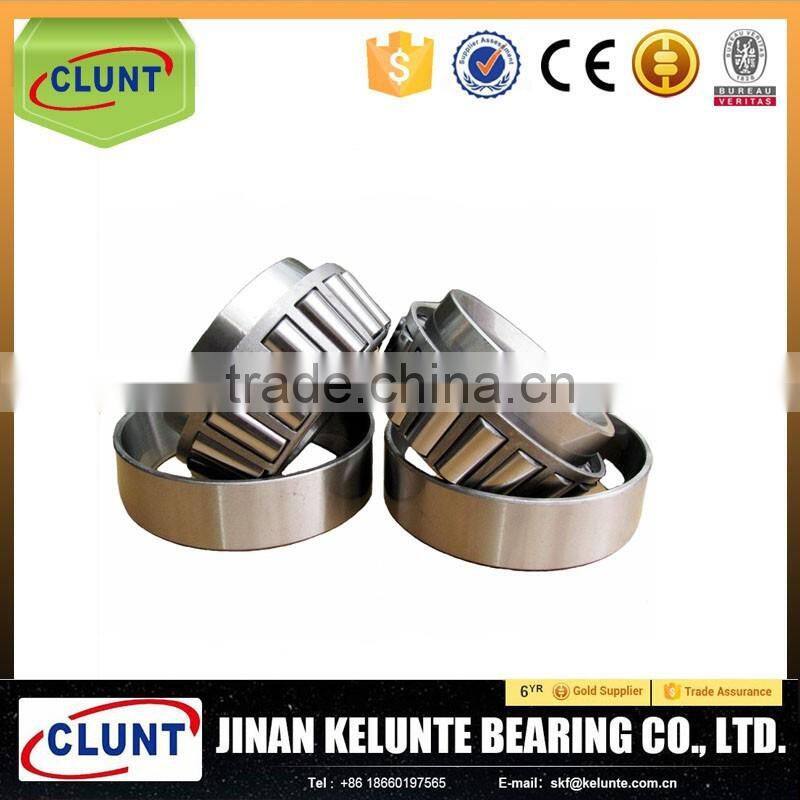

  Inch Taper Roller Bearings Real Product Pictures:

Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearingDimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearingDimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearingDimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearingDimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing



company information

Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearingDimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing

My company equipment is advanced, leading the management level, the warehouse clean and orderly, mount guard after qualified staff skill training, greatly improve the quality of our products and reduce the production cost, follow up competitiveness in the bearing industry.Our company pays attention to technology innovation the technological innovation enables enterprises to form core competitiveness, and to keep a competitive strength.

1: Germany equipment,
2: dust-free workshop,
3: smokeless workshop,
4:5 s management system,
5: ERP warehouse outbound,

Welcome to visit our factory, and promote the communication and learning, and go further in the bearing industry .



Our Certifications



Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing

                Our company quality first gained international certification

                International certification:
                1: ISO9001:2000,
                2: BV,
                3: CC,

                Inland certification:
                1: Shandong star enterprise ,
                2: Domestic well-known brand,
                3: Five years gold supplier in Alibaba,
                4: The key enterprises of "Jinan 11th Five-Year Plan"



package & shipping

Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing









Packaging
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your requirement







Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing

FAQ

Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing

Our Services





 How to contact us?

Send your inquiry details for free samples, click "send" now!

Dimensionally Interchangeable With Other Bearing Manufacturers 32316 taper roller bearing
