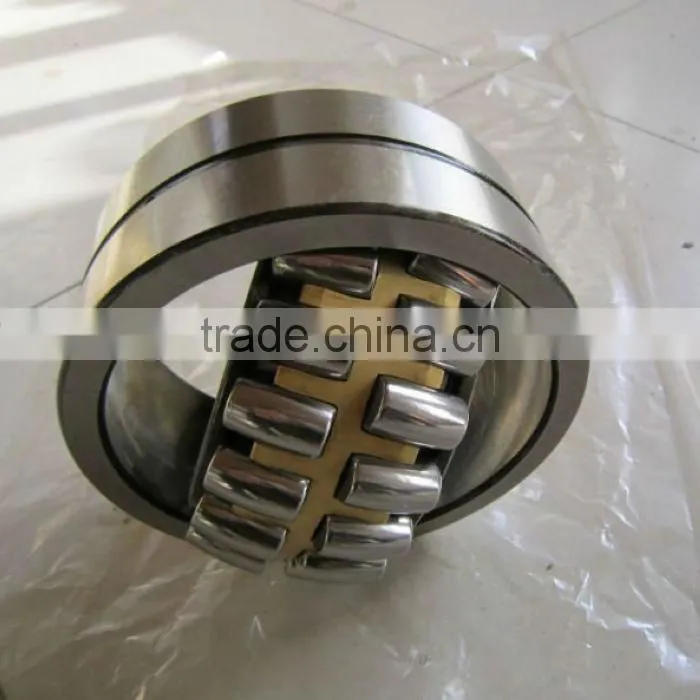

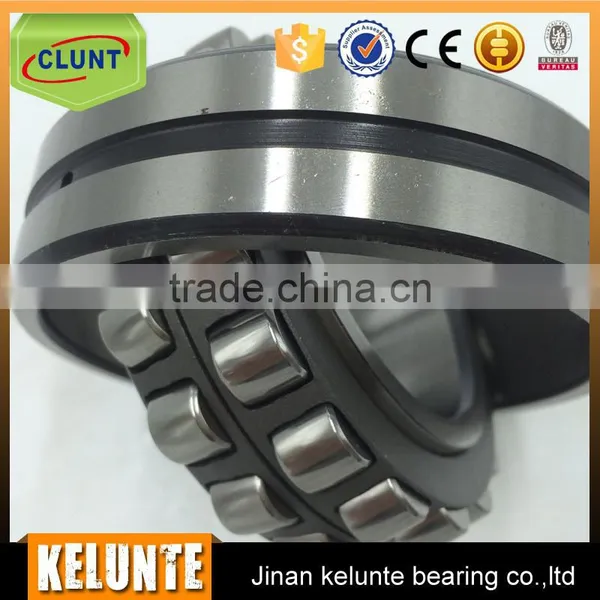

double row brass cage spherical roller bearing 22356
Details of double row brass cage spherical roller bearing 22356
| (Series) | spherical roller bearing | |
| (Bearing NO) | model | 22356 |
|
(Standing inventory models) |
22356EK,22356EK/C3 | |
| (Basic size) | ID | 280 |
| OD | 580 | |
| THICKNESS | 175 | |
| (KN) (Basic load ratings) |
Cr | 345 |
| Cor | 520 | |
|
(Limiting Speeds(rpm)) |
Oil | 600 |
| (Reference speeds(rpm)) | Grease | 750 |
Descriptions of double row brass cage spherical roller bearing 22356
Spherical roller bearings have good self-aligning ability and can perform during the shaft deflection under load or the shaft misalignment in mounting. This type of bearings has heavy load carrying capacity and anti-impact ability. In addition to radial loads, they can also carry axial loads in two directions. Vista mainly offers 22xxx,23xxx,24xxx series,wide inner ring Series spherical roller bearings. The type with lubricating oil hole in the inner ring can also be supplied.
Designs and Structures of double row brass cage spherical roller bearing 22356
CTN1: Nylon retainer.
C: Stamped steel retainer and strengthened symmetric rollers; offers considerably higher load ratings than conventional designs for a broad range of applications and long service life.
CA: Alternative design of C design; Precision-machined one-piece brass retainer and strengthened symmetric rollers; used to exchange with C design, especially for large size.
MB: Two-piece precision-machined brass retainer and strengthened symmetric rollers; equivalent to C design in load capacity.
CC: steel cage, replace traditional brass cage.
E: Third generation design.
The bearing contact is completely optimized and has improved stress distribution; offer much longer service life than normal designs.
Suffixes:
(a) CA: Integral brass cage, double row symmetrical rollers, inner ring ride
(b) MA: Integral brass cage, double row symmetrical rollers, outer ring ride
(c) MB: Two piece brass cage, double row asymmetrical rollers, inner ring ride
(d) CC: Two piece steel cage, double row symmetrical rollers, inner ring ride
(e) CTN1: double row symmetrical rollers, nylon cage
(f) K: Tapered bore bearing, the taper is 1:12
(g) K30: Tapered bore bearing, the taper is 1:30
(h) W33: With lubrication groove in outer ring, with three oil holes
(i) C2/C3/C4: Internal clearance series: C0, C2, C3, and C4
Application of Spherical 22356 Roller Bearing
Steel industry, oil industry, cement industry, mining&construction,
papermaking machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery.
Features of double row brass cage spherical roller bearing 22356
1 The bearings are principally provided with two rows of symmetrical spherical rollers
and a common sphere raceway in out ring, the two inner ring raceways are included at
an angle to the bearing axial.
2 The bearings have good self-aligning ability and can operate when the shaft deflection under load or
the shaft deflection
under load or the shaft misaligning in mounting, and their permissible aligning angle is 1 to 2.5 degree.
3 The bearings have heavy load carrying capacity and anti-impact ability, in addition to radial loads, they
also can carry axial loads in two directions
4 In general, this type of bearings permits a low limiting speed.
| Bearings NO. | d/mm | D/mm | B/mm | C/kN | C0/kN | Weight/kg |
| 22356ca-2CS2/VT143 | 1280 | 580 | 175 | 345 | 520 | 235 |
| 24122 CC/W33 | 110 | 180 | 69 | 520 | 750 | 7.1 |
| 24122 CCK30/W33 | 110 | 180 | 69 | 520 | 750 | 7 |
| 24122-2CS2/VT143 | 110 | 180 | 69 | 460 | 750 | 7 |
| 22222 E | 110 | 200 | 53 | 560 | 640 | 7 |
| 22222 EK | 110 | 200 | 53 | 560 | 640 | 6.85 |
| BS2-2222-2CS5/VT143 | 110 | 200 | 63 | 560 | 640 | 7.6 |
| 23222 CC/W33 | 110 | 200 | 69.8 | 600 | 765 | 9.85 |
| 23222 CCK/W33 | 110 | 200 | 69.8 | 600 | 765 | 9.55 |
| 22322 E | 110 | 240 | 80 | 950 | 1120 | 18.4 |
| 22322 EJA/VA405 | 110 | 240 | 80 | 950 | 1120 | 18.4 |
| 22322 EK | 110 | 240 | 80 | 950 | 1120 | 18 |
| 22322 EKJA/VA405 | 110 | 240 | 80 | 950 | 1120 | 18 |
| 23024 CC/W33 | 120 | 180 | 46 | 355 | 510 | 4.2 |
| 23024 CCK/W33 | 120 | 180 | 46 | 355 | 510 | 4.05 |
| 23024-2CS2/VT143 | 120 | 180 | 46 | 355 | 510 | 4.2 |
| 24024 CC/W33 | 120 | 180 | 60 | 430 | 670 | 5.45 |
| 24024 CCK30/W33 | 120 | 180 | 60 | 430 | 670 | 5.35 |
| 24024-2CS2/VT143 | 120 | 180 | 60 | 430 | 670 | 5.45 |
| 23124 CC/W33 | 120 | 200 | 62 | 510 | 695 | 8 |
| 23124 CCK/W33 | 120 | 200 | 62 | 510 | 695 | 7.75 |
| 24124 CC/W33 | 120 | 200 | 80 | 655 | 950 | 10.3 |
| 24124 CCK30/W33 | 120 | 200 | 80 | 655 | 950 | 10 |
| 24124-2CS2/VT143 | 120 | 200 | 80 | 655 | 950 | 10.5 |
