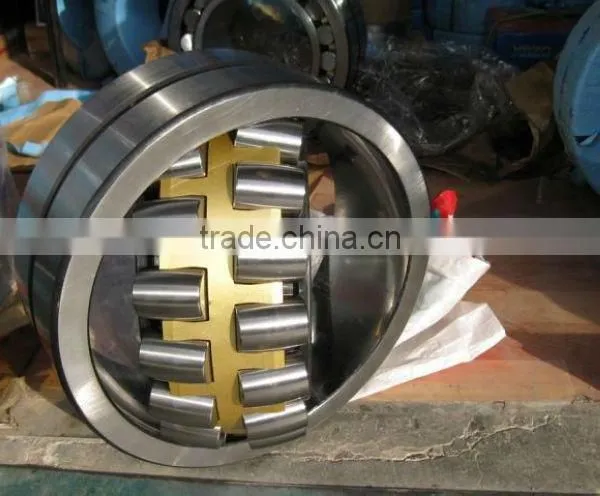

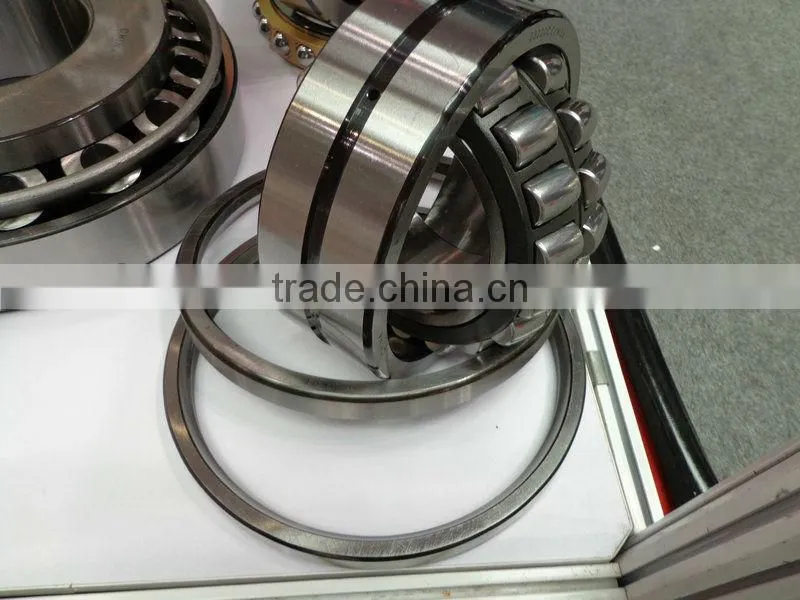

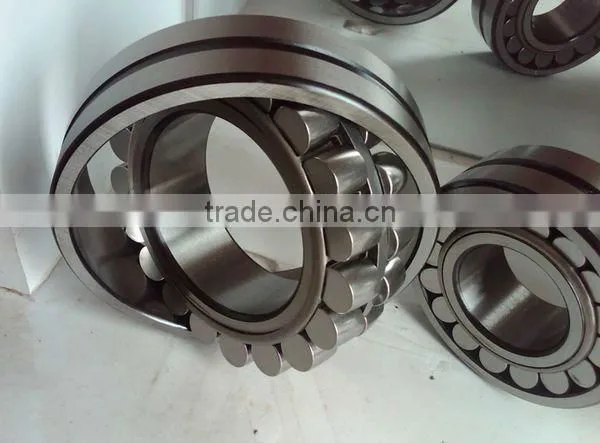

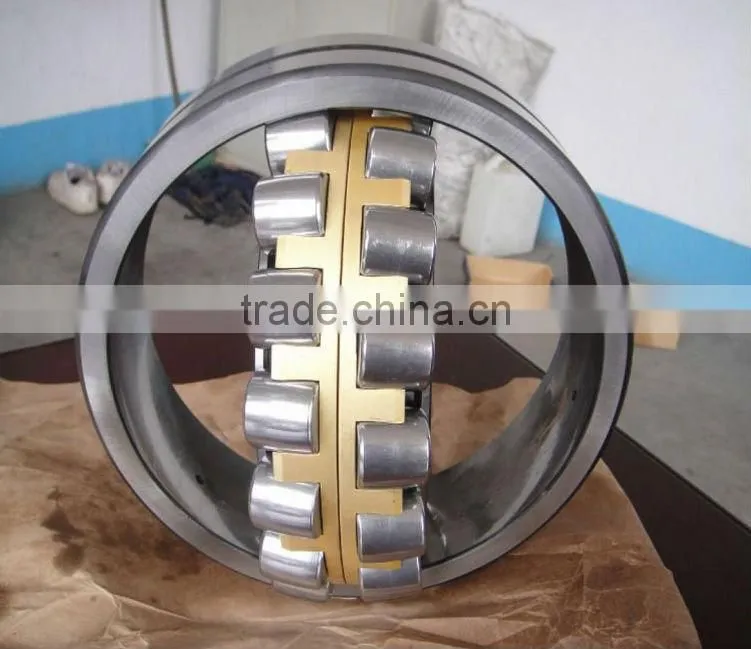

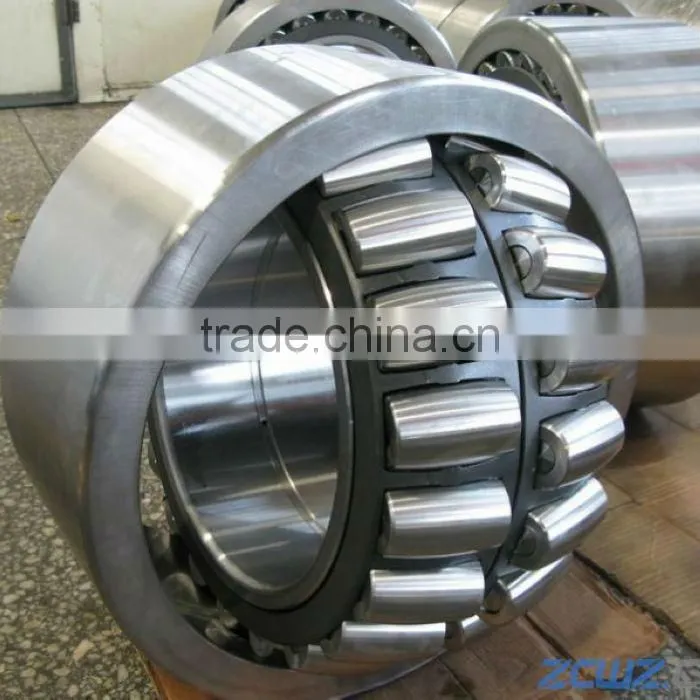

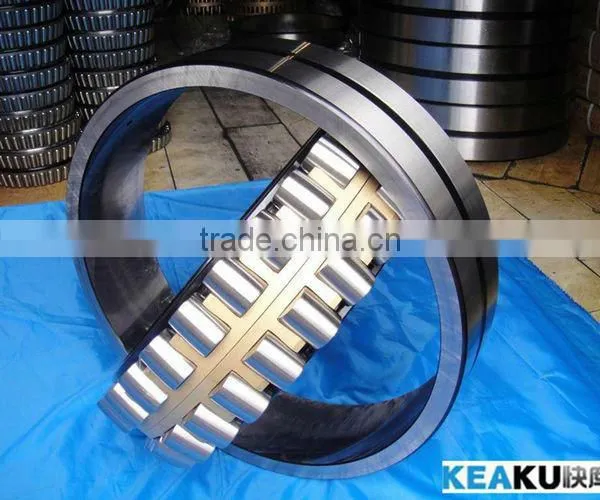

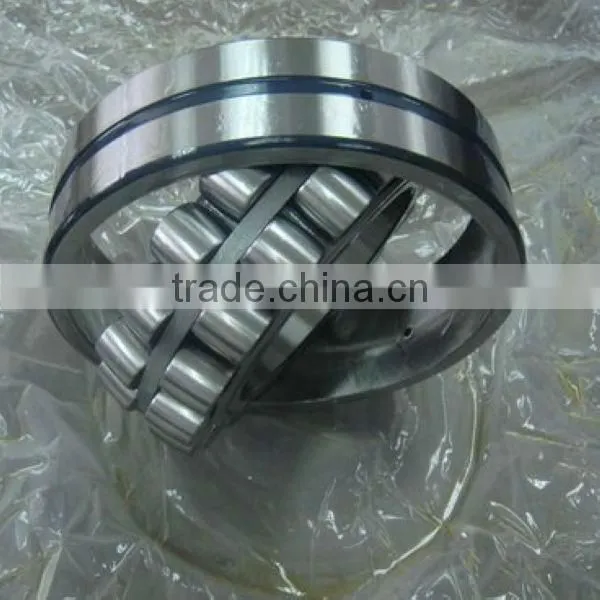

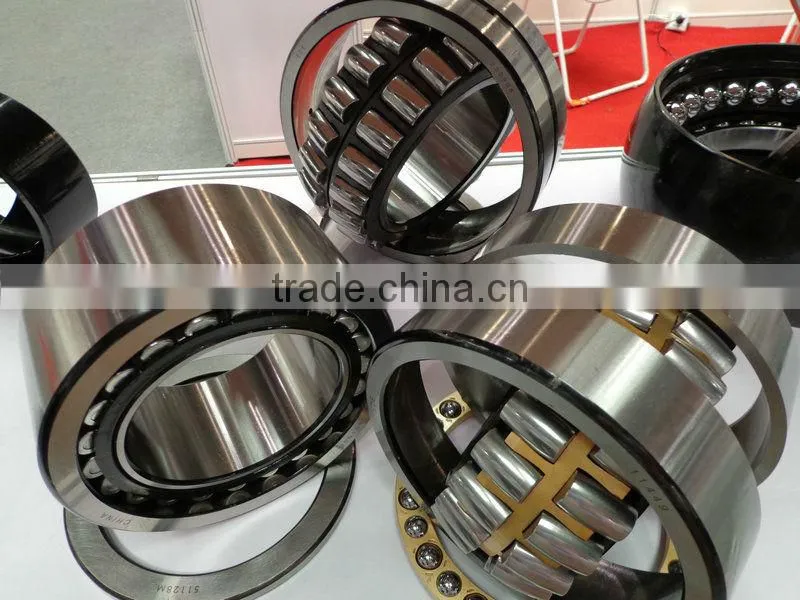

24030/w33 Roller Crane Hooks Bearing 24030 Bearings

24030/w33 Roller Crane Hooks Bearing 24030 Bearings thumbnail-1
24030/w33 Roller Crane Hooks Bearing 24030 Bearings photo-1
US$ 220 - 220 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
150,
Outside Diameter:
225,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 150,
Outside Diameter 225,
Model Number 24030 bearings
Precision Rating P0 P6 P5 P4 P2
Seals Type OPEN
Number of Row Double Row
Place of Origin Shandong, China

Specifications

24030/w33 bearing
1 Heavy radial and impact loading
2 Less coefficient of friction
3 High quality and good service

24030/w33 roller crane hooks bearing 24030







Specifications
(d) Bore Diameter 150 mm

(D) Outside Diameter 225 mm

(B) Width 75 mm

(C) Dynamic Load 564 N

(Co) Static Load 1040 N

(Grease) Lubrication Speed 1300 r/min

(Oil) Lubrication Speed 1700 r/min

Weight 10.5 kg

(e) Calculation Factors 2.1

(Y1) Calculating Factor 5.5

(Y2) Calculation Factor 3

Common Options C0-- Normal Clearance
  C2-- tight internal clearance
  C3-- Greater than normal clearance
  E-- Extra Capacity style
  J-- Steel cage
  K-- 1:12 Tapered Bore
  M-- Machined Brass Cage
  T41A-- Shaker Screen Style

Industry Solutions Aggregate / Concrete / Mining
  Material Handling
  Metal Processing
  Power Generation
  Pulp, Paper Converting and Printing
  Pump, Compressor and Oil Field
  Recreation







Related Bearing Dimension:

23244 CCK/W33+H 2344 Spherical Roller Bearings 200mm*400mm*144mm
23248 CCK/W33+H 2348 Spherical Roller Bearings 220mm*440mm*160mm
23252 CACK/W33+H 2352 Spherical Roller Bearings 240mm*480mm*174mm
23256 CACK/W33+H 2356 Spherical Roller Bearings 260mm*500mm*176mm
23260 CACK/W33+H 3260 Spherical Roller Bearings 280mm*540mm*192mm
23134 CCK/33+H 3134 Spherical Roller Bearings 150mm*280mm*88mm
23136 CCK/33+H 3136 Spherical Roller Bearings 160mm*300mm*96mm
23138 CCK/33+H 3138 Spherical Roller Bearings 170mm*320mm*104mm
23140 CCK/33+H 3140 Spherical Roller Bearings 180mm*340mm*112mm
23144 CCK/33+H 3144 Spherical Roller Bearings 200mm*370mm*120mm
23148 CCK/33+H 3148 Spherical Roller Bearings 220mm*400mm*128mm
23152 CACK/33+H 3152 Spherical Roller Bearings 240mm*440mm*144mm
23156 CACK/33+H 3156 Spherical Roller Bearings 260mm*460mm*146mm
23160 CACK/33+H 3160 Spherical Roller Bearings 280mm*500mm*160mm
23164 CACK/W33+H 3164 Spherical Roller Bearings 300mm*540mm*176mm
23168 CACK/W33+H 3168 Spherical Roller Bearings 320mm*580mm*190mm
23172 CACK/W33+H 3172 Spherical Roller Bearings 340mm*600mm*192mm
23180 CACK/W33+H 3180 Spherical Roller Bearings 380mm*650mm*200mm
23184 CACK/W33+H 3184 Spherical Roller Bearings 400mm*700mm*224mm
22208 CCK/W33+H 308 Spherical Roller Bearings 35mm*80mm*23mm
22209 CCK/W33+H 309 Spherical Roller Bearings 40mm*85mm*23mm
22210 CCK/W33+H 310 Spherical Roller Bearings 45mm*90mm*23mm
22211 CCK/W33+H 311 Spherical Roller Bearings 50mm*100mm*25mm
22212 CCK/W33+H 312 Spherical Roller Bearings 55mm*110mm*28mm
22213 CCK/W33+H 313 Spherical Roller Bearings 60mm*120mm*31mm
22214 CCK/W33+H 314 Spherical Roller Bearings 60mm*125mm*31mm
22215 CCK/W33+H 315 Spherical Roller Bearings 65mm*130mm*31mm
22216 CCK/W33+H 316 Spherical Roller Bearings 70mm*140mm*33mm
22217 CCK/W33+H 317 Spherical Roller Bearings 75mm*150mm*36mm
22218 CCK/W33+H 318 Spherical Roller Bearings 80mm*160mm*40mm
22219 CCK/W33+H 319 Spherical Roller Bearings 85mm*170mm*43mm
22220 CCK/W33+H 320 Spherical Roller Bearings 90mm*180mm*46mm
22222 CCK/W33+H 322 Spherical Roller Bearings 100mm*200mm*53mm



Suffix:

CA: Integral brass cage, double row symmetrical roller, inner ring ride

CC: Two window-type steel cages, double row symmetrical roller, inner ring ride

MA: Machined brass cage, outer ring ride

MB: Machined brass cage, inner ring ride



K: Tapered bore, taper 1:12
K30: Tapered bore, taper 1:30
S: With a groove, lubrication holes in out rings.
W: Without annular groove and lubrication holes in outer ring
W20: Three lubrication holes in outer ring
W26: Six lubrication holes in inner ring
W33: Annular groove and three lubrication holes in outer ring
W77: Plugged W33 lubrication holes





Type

New Model

Old Model

ID
(mm)

OD
(mm)

Width
(mm)

Weight
(kg)

Spherical roller bearing

23244CCK/W33+H2344

3253240

200

400

144

-

Spherical roller bearing

23244/W33

3003244Y

200

400

144

94.2

Spherical roller bearing

23244K/C3W33

3G3113244Y

200

400

144

91.8

Spherical roller bearing

23244CC/W33

3053244

220

400

144

78.5

Spherical roller bearing

23244CCK/W33

3153244

220

400

144

78.5

Spherical roller bearing

23244K/W33

3113244Y

220.0000

400.0000

144.0000

91.800

Spherical roller bearing

23244K

3113244

220.0000

400.0000

144.0000

92.200

Spherical roller bearing

23244CAK/W33

3153244HK

220.0000

400.0000

144.0000

79.500

Spherical roller bearing

23244CAK

3153244H

220.0000

400.0000

144.0000

79.500

Spherical roller bearing

23244CA/W33

3053244HK

220.0000

400.0000

144.0000

78.795

Spherical roller bearing

23244CA

3053244H

220.0000

400.0000

144.0000

79.500
