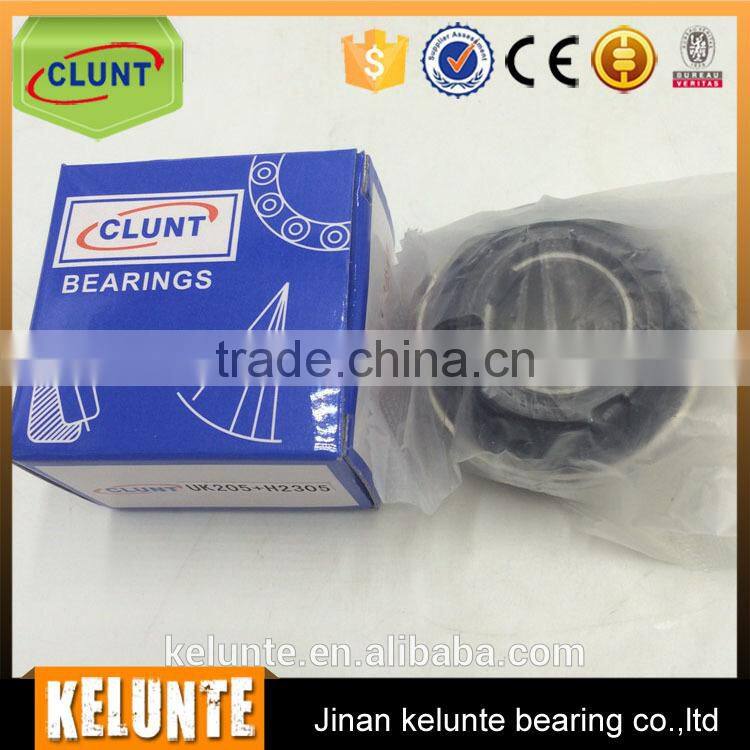

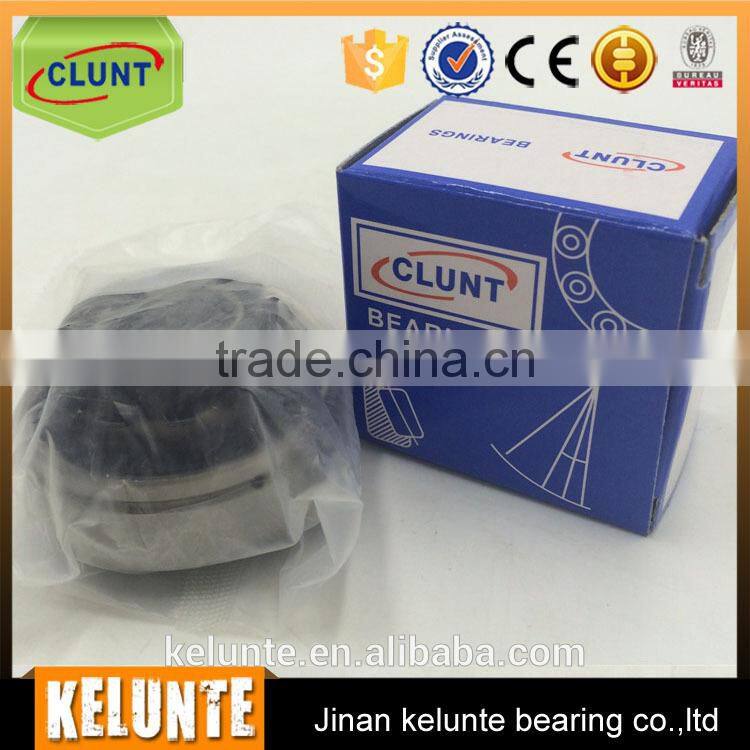

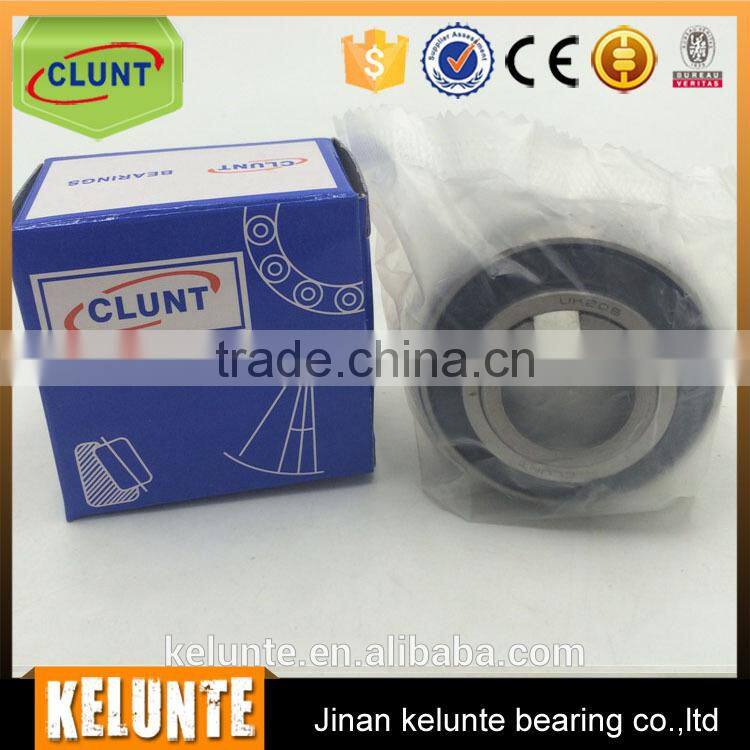

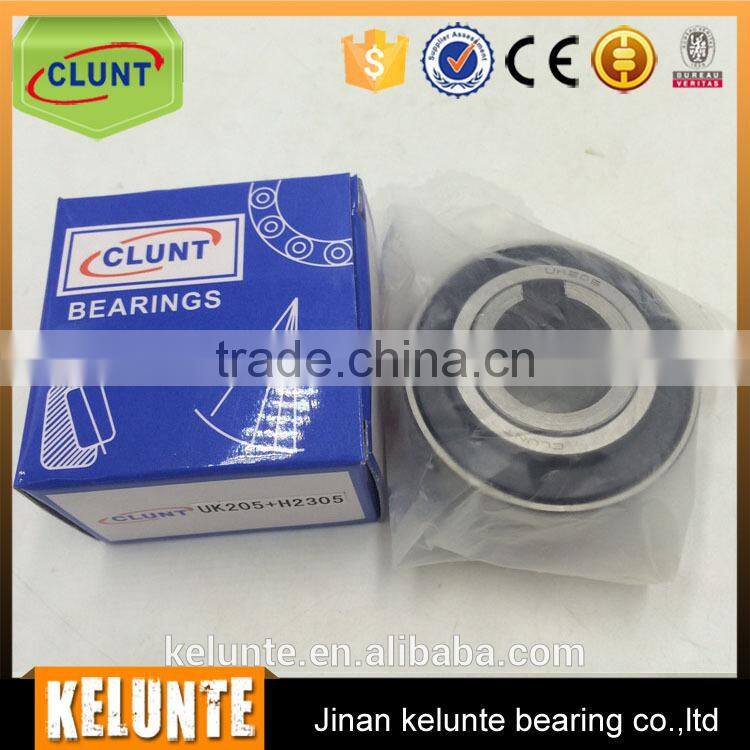

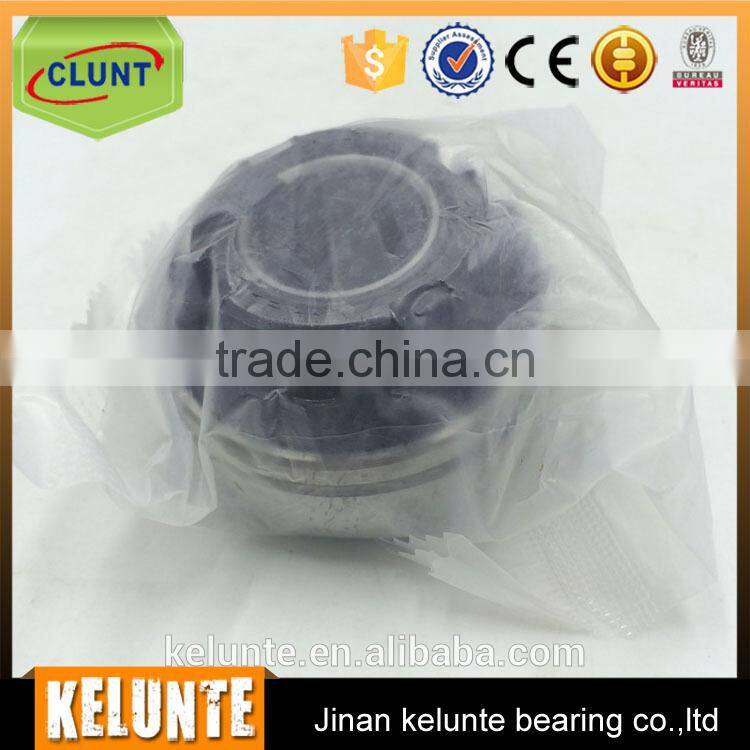

Adapter Sleeve Locking Pillow block Bearing UK205
Specifications of Adapter Sleeve bearing UK205
| Bearing No | UK205 |
| dz | 25 |
| D | 2.0472 |
| B | 0.906 |
| S | 0.4527 |
| C | 0.669 |
| Mass(kg) | 0.16 |
| Basic Dynamic Load Rating | 10780 |
| Basic Static Load Rating | 8980 |
| Limiting Speed | 3400 |
Drawings of Adapter Sleeve bearing UK205
Brif introduction of Adapter Sleeve bearing
Adapter Sleeve Locking Bearing is one kind of mechanical parts that specially assorted with bearings, it comprises of lock nut, locking
device and shaft sleeve. From screwing the lock nut, to make the shaft sleeve closely connected
between the shaft and bearing inner ring.
The use of adapter sleeve effectively decrease the machines' volume, simplify the internal structure.
They are applicable to tapered bore selfaligning ball bearings, tapered bore spherical roller bearings, etc.
1-Construction: Insert Bearing is the deep groove ball bearing with wide inner ring,it insert in housing works as a unit bearing..
2-Production Range:
| Bearing No. | Dimensions | mm | ratings | ratings | Weight | |||||||
| in. | N | N | (kg) | |||||||||
| d | D | B | C | d1 | B1 | B2 | d2 | F | ||||
| UK205;H2305 | 25 | 52 | 23 | 17 | 20 | 35 | 8 | 38 | 3.9 | 10780 | 6980 | 0.25 |
| UK205;HE2305 | 0.9843 | 2.0472 | 0.9055 | 0.6693 | 3/4 | 1.378 | 0.315 | 1.496 | 0.154 | |||
| UK206;H2306 | 30 | 62 | 26 | 19 | 25 | 38 | 8 | 45 | 5 | 14970 | 10040 | 0.36 |
| UK206;HS2306 | 1.1811 | 2.4409 | 1.0236 | 0.7483 | 1 | 1.496 | 0.315 | 1.772 | 0.197 | |||
| UK206;HE2306 | ||||||||||||
| UK207;H2307 | 35 | 72 | 29 | 20 | 30 | 43 | 9 | 52 | 5.7 | 19750 | 13670 | 0.57 |
| UK207;HS2307 | 1.378 | 2.8346 | 1.1417 | 0.7874 | 1-1/8 | 1.693 | 0.354 | 2.047 | 0.224 | |||
| UK208;H2308 | 40 | 80 | 31 | 21 | 35 | 46 | 10 | 58 | 6.2 | 22710 | 15940 | 0.74 |
| UK208;HE2308 | 1.5748 | 3.1496 | 1.2205 | 0.8268 | 1-1/4 | 1.811 | 0.394 | 2.283 | 0.244 | |||
| UK208;HS2308 | 1-3/8 | |||||||||||
| UK209;H2309 | 45 | 85 | 31 | 22 | 40 | 50 | 11 | 65 | 6.4 | 24360 | 17710 | 0.83 |
| UK209;HA2309 | 1.7717 | 3.3465 | 1.2205 | 0.8661 | 1-7/16 | 1.969 | 0.433 | 2.559 | 0.252 | |||
| UK209;HE2309 | 1-1/2 | |||||||||||
| UK209;HS2309 | 1-5/8 | |||||||||||
Send your inquiry for more product details and free samples, click "send" now!
