insert ball bearing uc208
Pillow block bearings and bearing housings are used in motors, chain belts, automobiles, chain wheels, mining, metallurgy, mechanical transmission dyeing, chemical industry, textile machinery, agricultural machinery, and machines for food processing and packing.
| Bearing Name | UC206 |
| New Model | UC206 |
| Old Model | 90506 Bearing |
| product Model | UC206 |
| Category | Insert Ball Bearings With a Seat |
| Brand | CLUNT |
| Inner Diameter d ( mm ) | 30 |
| Outer Diameter D ( mm ) | 62 |
| Thickness B ( mm ) | 38.1 |
Model: UC206
Keyword: Pillow Block Bearings, ASAHI pillow block bearings, auto pillow block bearings
Brand: CLUNT
Dimension: 30X62X38, 1mm
Bore Size: 30mm
Outside Diameter: 62mm
Height: 38, 1mm
Mass: 0.34kg
Precision Rating: P0 P6 P5
Package: Plastic tube+anti-rust paper+individual box+carton+plastic pallet
Delivery Time: 7-35days, according to the order quantity
Applications of Pillow Block Bearings
UC204 UCP204 UCF204 UCFL204 UCT204 UK204 UKP204
UC205 UCP205 UCF205 UCFL205 UCT205 UK205 UKP205
UC206 UCP206 UCF206 UCFL206 UCT206 UK206 UKP206
UC207 UCP207 UCF207 UCFL207 UCT207 UK207 UKP207
UC208 UCP208 UCF208 UCFL208 UCT208 UK208 UKP208
UC209 UCP209 UCF209 UCFL209 UCT209 UK209 UKP209
UC210 UCP210 UCF210 UCFL210 UCT210 UK210 UKP210
UC211 UCP211 UCF211 UCFL211 UCT211 UK211 UKP211
UC212 UCP212 UCF212 UCFL212 UCT212 UK212 UKP212
UC213 UCP213 UCF213 UCFL213 UCT213 UK213 UKP213
UC214 UCP214 UCF214 UCFL214 UCT214 UK214 UKP214
UC215 UCP215 UCF215 UCFL215 UCT215 UK215 UKP215
UC216 UCP216 UCF216 UCFL216 UCT216 UK216 UKP216
insert ball bearing uc208 catalog:
| Unit No. | Shaft | Dimensions(mm) | Basic dynamic Load ratings | Basic static Load ratings | ||||||
| d | ||||||||||
| (mm) | D | Bi | Be | n | m | G | ds | (KN) | (KN) | |
| (mm) | ||||||||||
| UCW201 | 12 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4.5 | M5*0.8 | 7.36 | 4.79 |
| UCW201-8 | ||||||||||
| UCW202 | 15 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4.5 | M5*0.8 | 7.36 | 4.79 |
| UCW202-9 | ||||||||||
| UCW202-10 | ||||||||||
| UCW203 | 17 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4.5 | M5*0.8 | 7.36 | 4.79 |
| UCW203-11 | ||||||||||
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6*1 | 9.88 | 6.65 |
| UC201-8 | ||||||||||
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6*1 | 9.88 | 6.65 |
| UC202-9 | ||||||||||
| UC202-10 | ||||||||||
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6*1 | 9.88 | 6.65 |
| UC203-11 | ||||||||||
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6*1 | 9.88 | 6.65 |
| UC204-12 | ||||||||||
| UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | M6*1 | 7.36 | 4.79 |
| UC205-14 | 10.78 | 9.93 | ||||||||
| UC205-15 | ||||||||||
| UC205-16 | ||||||||||
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | M6*1 | 14.97 | 11.31 |
| UC206-17 | ||||||||||
| UC206-18 | ||||||||||
| UC206-19 | ||||||||||
| UC206-20 | ||||||||||

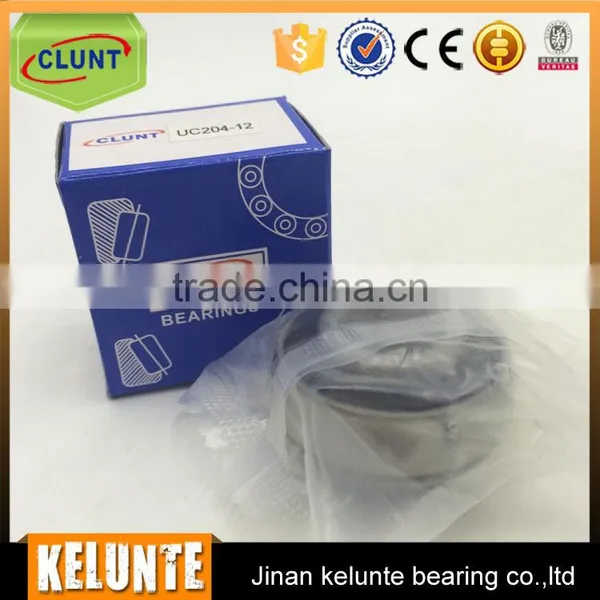

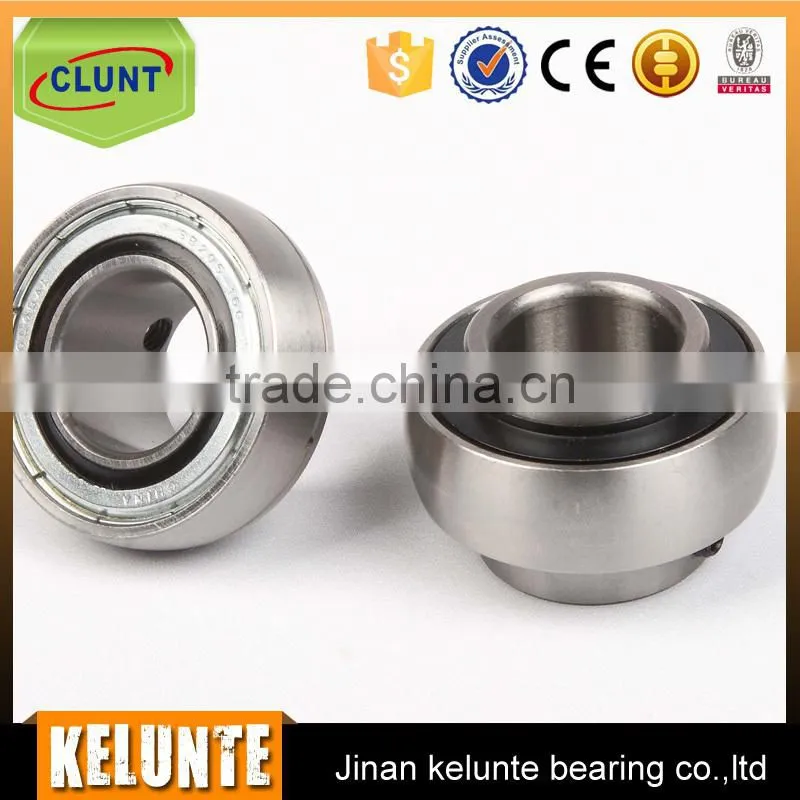

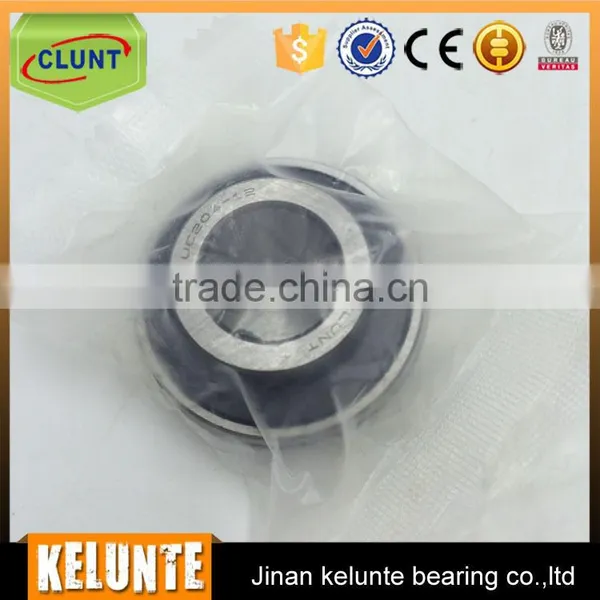

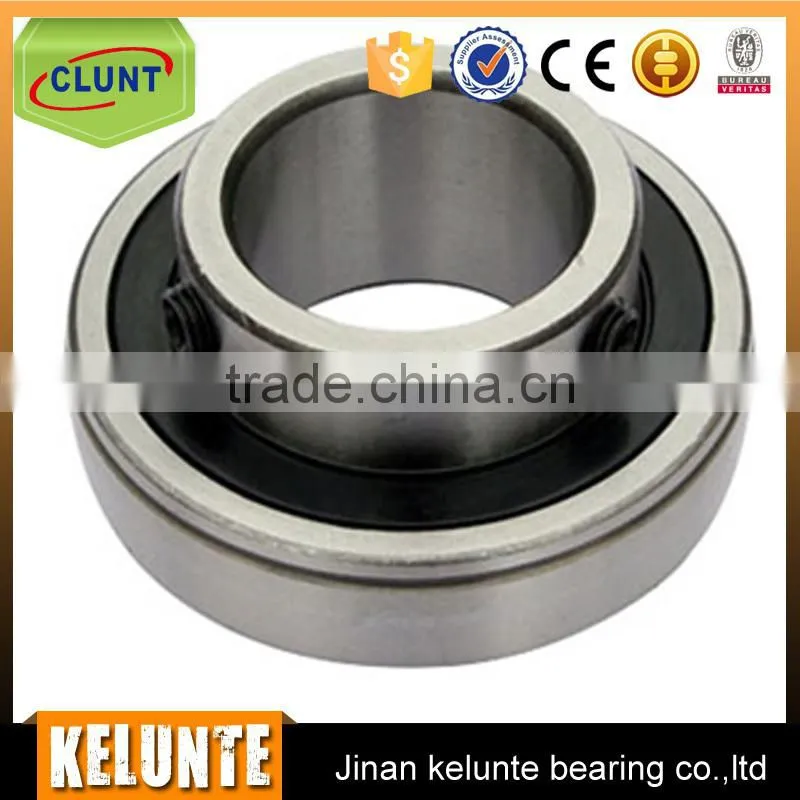

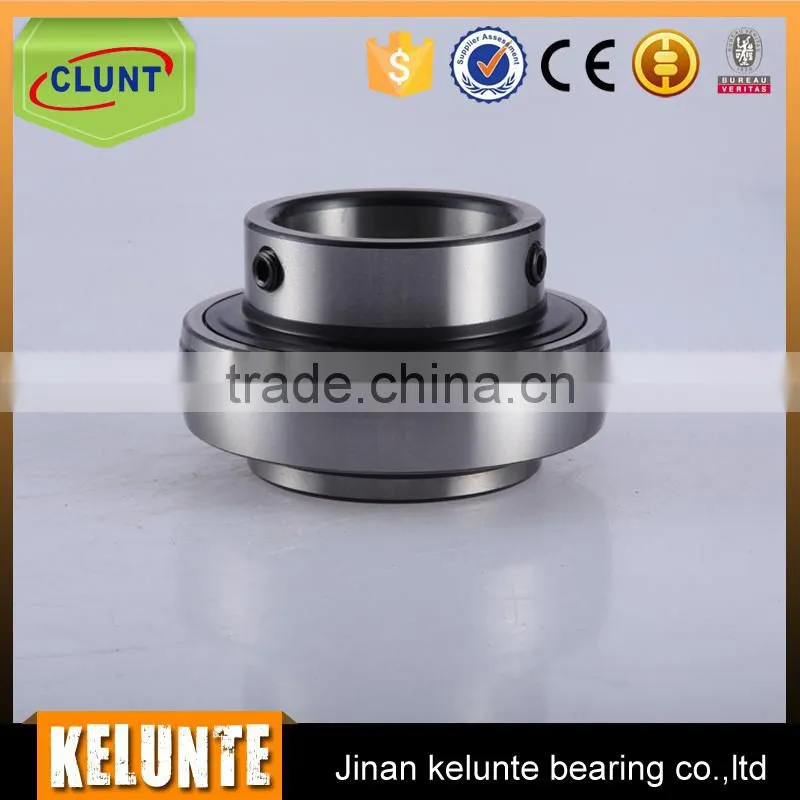

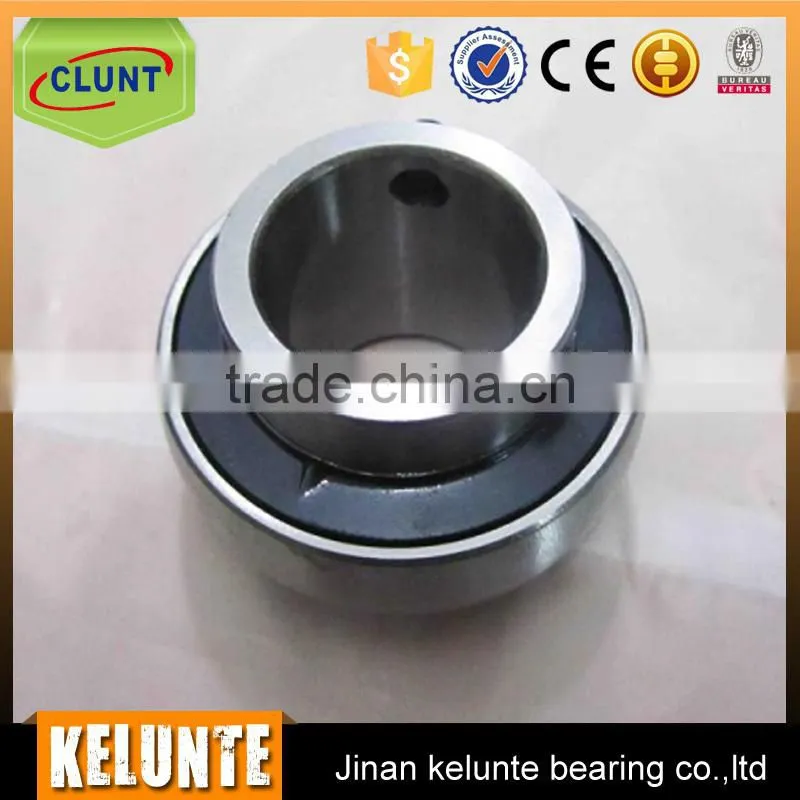

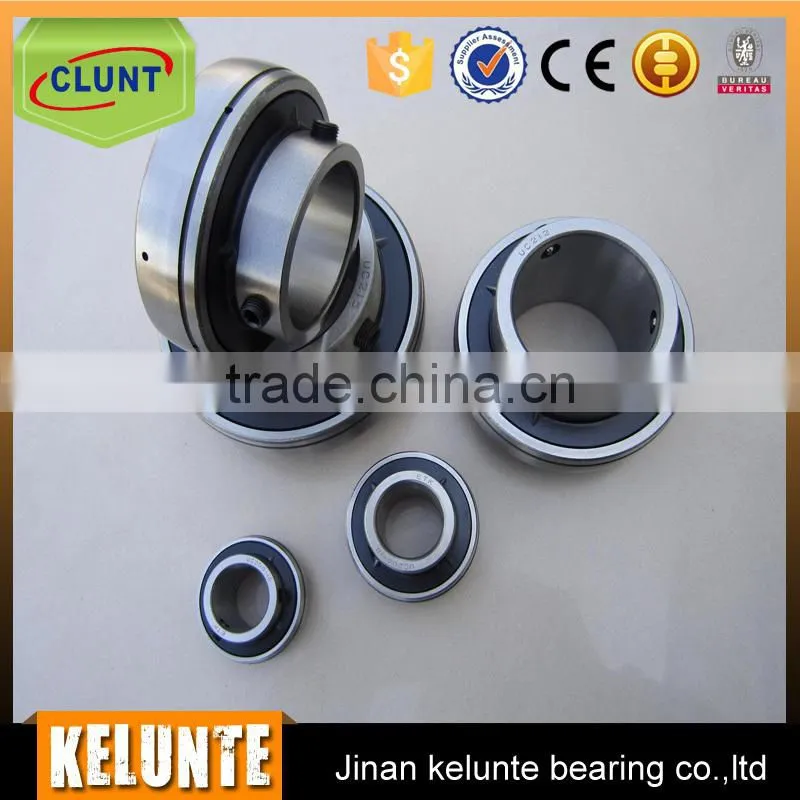

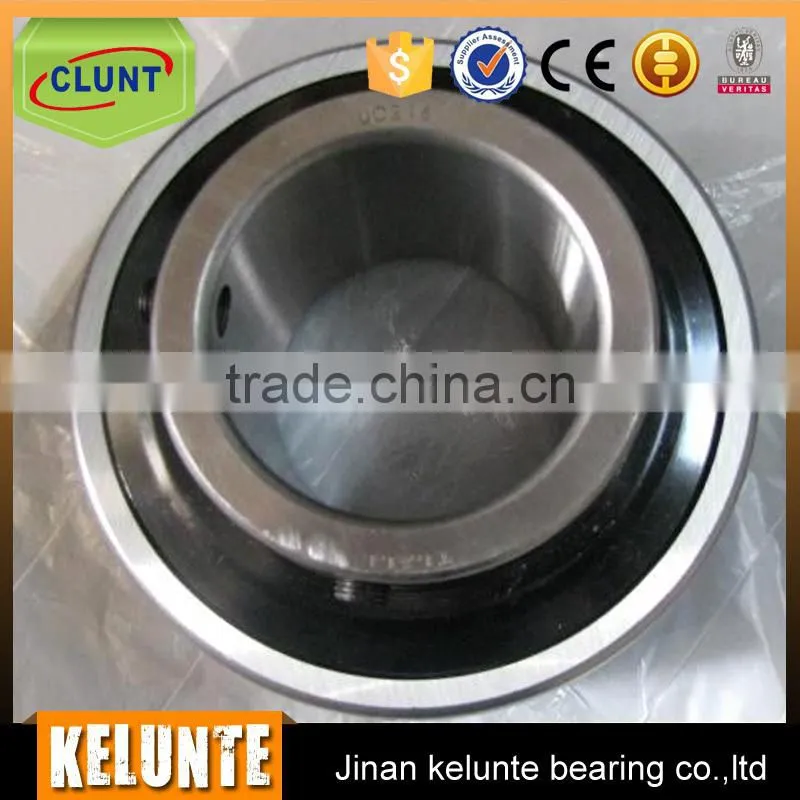

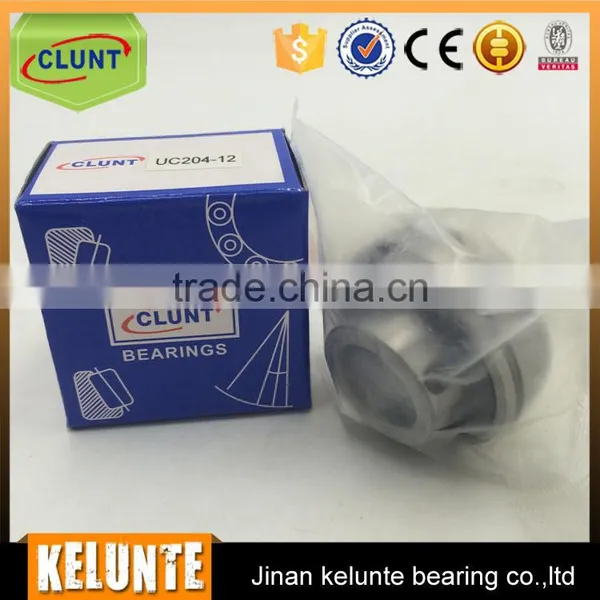

insert ball bearing uc208 pictures:
