Mcgill Inch Cam Follower Bearing CFH 1-1/4
US$ 10.05 - 10.05
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
0.75,
Outside Diameter:
1.25,
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Inch Size Cam Follower Bearing CF12US$ 10.28 - 10.28MOQ: 100 Pieces -
CF6 Cam Follower Bearing Screwdrive Slot Sealed Bearing CF6US$ 1.25 - 1.3MOQ: 100 Pieces
-
McGill Cam Follower Needle Bearing PWKR90-2RSUS$ 155 - 155MOQ: 5 Pieces
-
Cam Follower Rocker Bearing PWKR35-2RSUS$ 55 - 55MOQ: 10 Pieces
-
McGill Cam Follower Bearings for Textile Machinery KR52US$ 70 - 70MOQ: 10 Pieces
Brand Name
CLUNT
Bore Size
0.75,
Outside Diameter
1.25,
Model Number
CFH 1-1/4
Precision Rating
P0 P6 P5 P4
Seals Type
2RS
Place of Origin
Shandong, China
Specifications
Inch cam follower bearing CFH 1-1/41.Gcr15 material
2.Used in machinery
3.Less frictions
4.ISO:9001:2000
Mcgill Inch cam follower bearing CFH 1-1/4
Introductions of Inch cam follower bearing CFH 1-1/4
Cam Follower is a bearing having thick outer ring and a stud to which needle-type rollers are built into, and it is a bearing having small friction coefficient and excellent rotational performance designed for outer ring revolution.
With the purpose of increasing the load area effectively, this bearing is designed so that the radial gap is smaller than the general needle roller bearings. Therefore, it alleviates the impact load, and a stable long-life is gained. Since the stud undergoes screw processing and stepped processing, they can be attached easily.
Cam Followers have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery, and OA (Office Automation) equipment.
Cam Followers made of stainless steel excel in corrosion resistance, and they are suitable for use in places that are easily affected by oil, environment in which water is scattered as well as clean rooms.
Specifications of Inch cam follower bearing CFH 1-1/4
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features of Inch cam follower bearing CFH 1-1/4
- Designed with large internal grease storage capacity for applications where relubrication is infrequent
- Cage guided rollers permit operation at high speeds
- Unsealed for reduced rolling resistance
- Considerably heavier cross section outer ring to reduce deformation under load
- Yoke style design allows for clevis mounting which provides support on both sides of the cam follower and permits use of a high strength pin
Internal structure and shape
Guiding system of rollers
Cam Followers come in types with cages as well as full complement. Bearings with cages are suitable for places having small friction resistance and high-speed revolution, and bearings having full complement are suitable for places having low-speed revolution and places where heavy load is added.

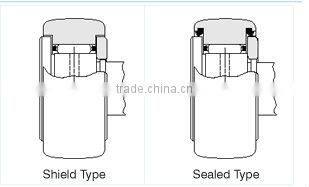

Structure of seal portion
Cam Followers come in shield type and sealed type. The shield-type bearings make the gaps between the outer ring and the stud collar portion as well as the outer ring and the side plate portion small and form labyrinths. Sealed-type bearings have a hermetic seal built into the labyrinth portion of the shield type, and entry of foreign matters can be prevented.

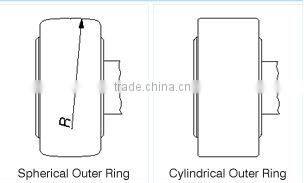

Shape of outer ring outside Diameter Surface
Since the outer ring of the Cam Follower is used by letting it come into contact directly with the opposing track surface, there are spherical surface and cylindrical surface for the outside diameter of the outer ring. Bearings of spherical outer rings are effective in alleviating the end load based on attachment errors. Furthermore, bearings of cylindrical outer rings have large contact area with the opposing track surface so it is suitable for cases in which the load is large or the hardness of the track surface is low.

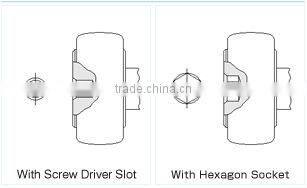

Shape of stude head portion
As for the shape of the stud head portion of the Cam Follower, there are ones with screw driver slots and ones with hexagon sockets for which hexagonal bar wrenches can be used in the attachment. Model numbers
| Part | D | CR | S | B | L | L1 | L2 | |
|---|---|---|---|---|---|---|---|---|
| Cylindrical | Crowned OD | inches | inches | inches | inches | inches | inches | inches |
| CFH 0.5-SB | CCFH 0.5-SB | 0.5000 | 7.0000 | 1/4-28 | 0.3750 | 1.0312 | 0.6250 | 0.2500 |
| CFH 0.5625-SB | CCFH 0.5625-SB | 0.5625 | 7.0000 | 1/4-28 | 0.3750 | 1.0312 | 0.6250 | 0.2500 |
| CFH 0.625-SB | CCFH 0.625-SB | 0.6250 | 8.0000 | 5/16-24 | 0.4380 | 1.2192 | 0.7500 | 0.3130 |
| CFH 0.6875-SB | CCFH 0.6875-SB | 0.6875 | 8.0000 | 5/16-24 | 0.4380 | 1.2192 | 0.7500 | 0.3130 |
| CFH 0.75-SB | CCFH 0.75-SB | 0.7500 | 10.0000 | 7/16-20 | 0.5000 | 1.4062 | 0.8750 | 0.3750 |
| CFH 0.875-SB | CCFH 0.875-SB | 0.8750 | 10.0000 | 7/16-20 | 0.5000 | 1.4062 | 0.8750 | 0.3750 |
| CFH 1-SB | CCFH 1-SB | 1.0000 | 12.0000 | 5/8-18 | 0.6250 | 1.6562 | 1.0000 | 0.5000 |
| CFH 1.125-SB | CCFH 1.125-SB | 1.1250 | 12.0000 | 5/8-18 | 0.6250 | 1.6562 | 1.0000 | 0.5000 |
| CFH 1.25-SB | CCFH 1.25-SB | 1.2500 | 14.0000 | 3/4-16 | 0.7500 | 2.0312 | 1.2500 | 0.6250 |
| CFH 1.375-SB | CCFH 1.375-SB | 1.3750 | 14.0000 | 3/4-16 | 0.7500 | 2.0312 | 1.2500 | 0.6250 |
