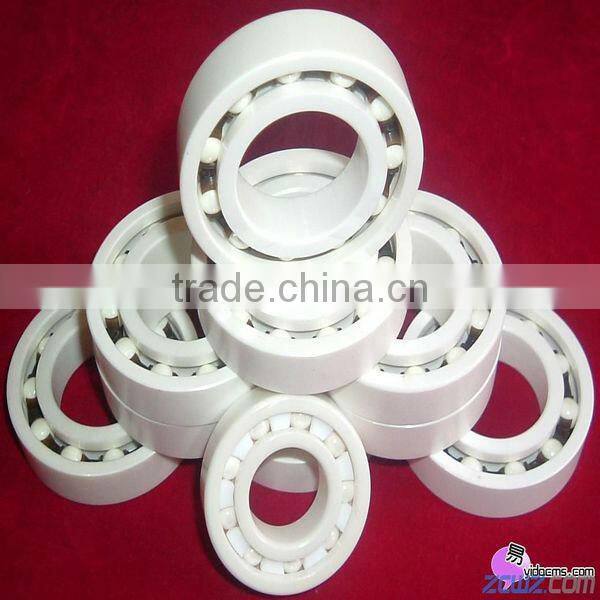

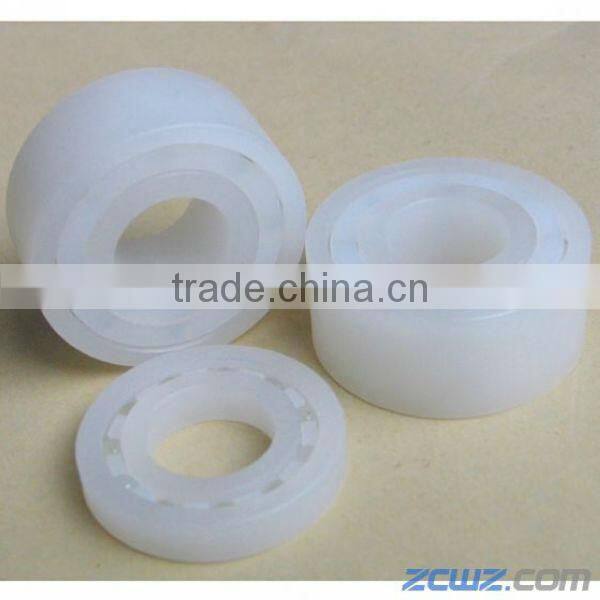

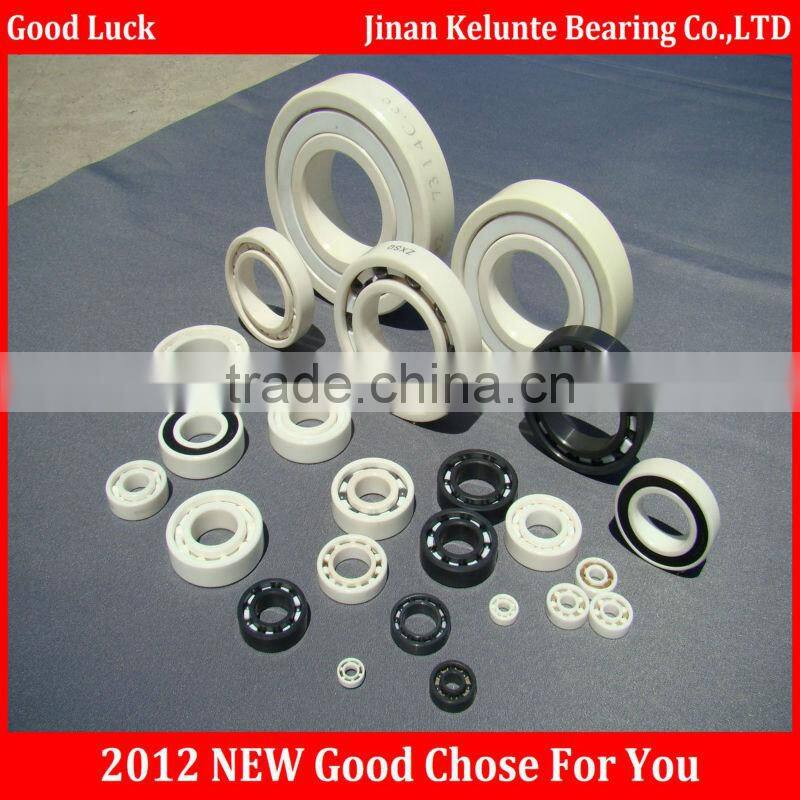

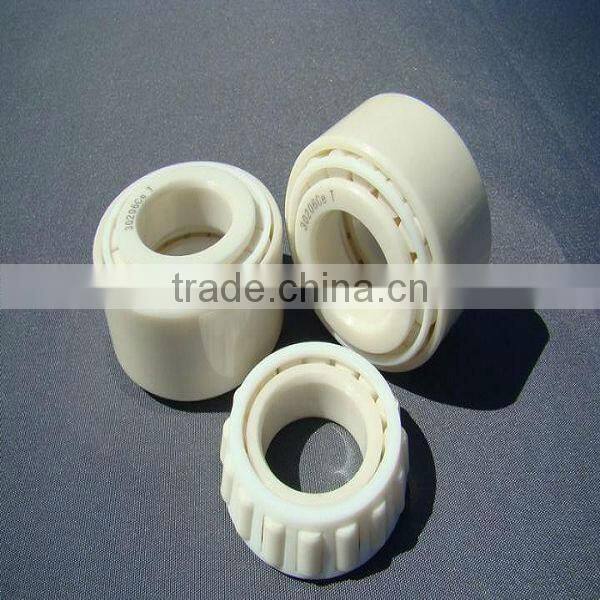

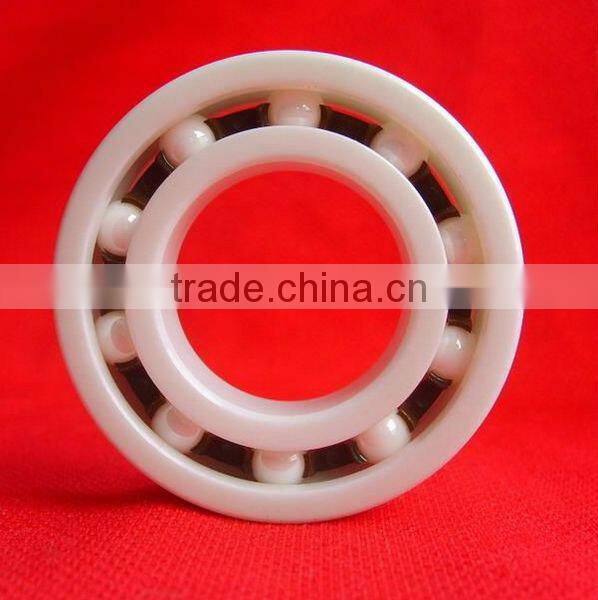

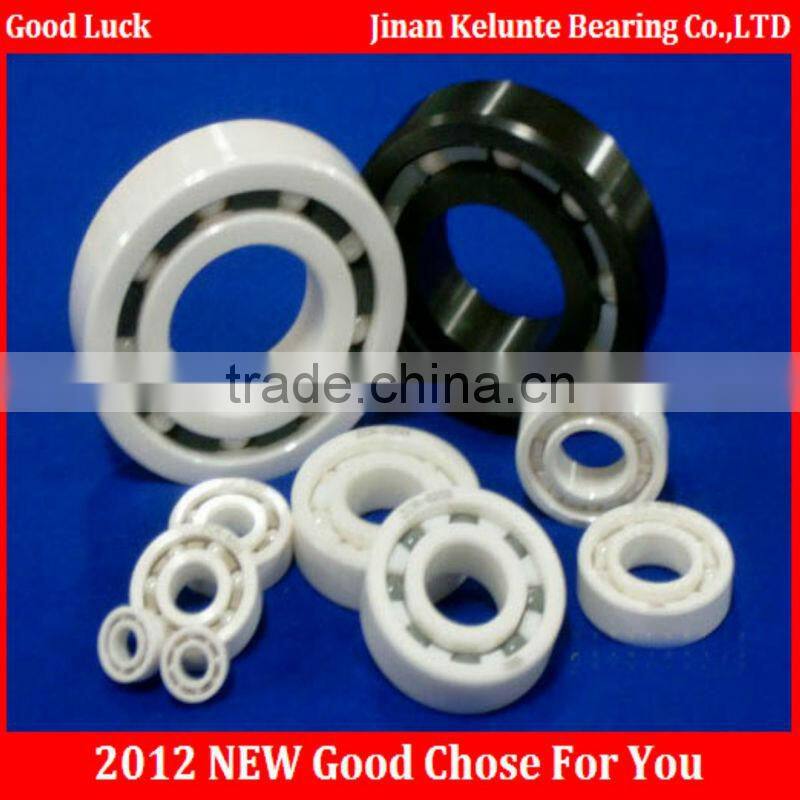

Help CenterPrinting Machinery KOYO Bearing 6004 Series Ceramic Ball Bearing
Related Products
-
Distributor Required KOYO Needle Roller Bearing NA4828AUS$ 21 - 36MOQ: 20 Pieces -
Suitable for Heavy Machinery Koyo Engine Bearing 6202 & Deep Groove Ball BearingUS$ 0.5 - 0.5MOQ: 100 Pieces
-
Suitable for Rolling Mill KOYO Japan High Speed NN3012K Cylindrical Roller BearingUS$ 11 - 18MOQ: 50 Pieces
-
KOYO Light KG Bearing NJ203 Cylinderical Bearing With High SpeedUS$ 2.5 - 4.6MOQ: 10 Pieces
-
Rodamientos Koyo Spherical Roller Bearing 24034C/W33US$ 55 - 58MOQ: 1 Piece
Specifications
KOYO bearing 60041.high temperature
2.ultrastregth material
rrosion resisting
4.ISO:9001:2000
skateboard bearings 6005 Full Ceramic Ball Bearing 25x47x12 ZrO2 Ball Bearings
Brief introduction
Ceramic ball bearings have quickly proven themselves far superior to their steel counterparts. Increased demands for more efficient and quicker production have uncovered many weaknesses in the use of steel bearings. Faster production speeds mean more loads and negative forces are being applied to the steel parts. As temperatures and friction increase with the higher production speeds the steel rolling elements and their surrounding rings will show small imperfections that can shorten the life span of the bearing. Lubrication for the bearings will also wear out quickly causing the parts to seize possibly causing more damage to the machine than just needing to replace the bearing.
Certain applications for bearings are not conducive to using traditional steel. Corrosive elements such as water and salt will break down steel very quickly and where electricity or magnetic fields are created the steel will act as a conductor damaging the bearing over time. Ceramic ball bearings are pretty much immune to all of these factors making them the product of choice for all bearing applications.
The ceramic ball bearings are made of either silicon nitride or zirconium oxide that is much stronger than steel, but at the same time up to 60% lighter. These bearings have a much smoother finish that allows them to run at much higher speeds and as temperatures increase with the higher speeds the ceramics will run cooler. Ceramic can withstand heat up to 1800 degrees Fahrenheit where steel will start to break down at around 572 degrees. The cooler running temperatures will prolong the life of their lubrication which will save money by not having to replace it as often or possibly eliminating the need for a lubrication system all together in certain applications.
The perfectly smooth surface of the ceramic rolling elements will prevent the microscopic imperfections that cause failure in steel bearings. Ceramic ball bearings are also non conductive so they are perfect for use in applications where electricity or magnetic fields are created, and they are non corrosive so they can be submerged in water or salt and not break down.
Specifications:

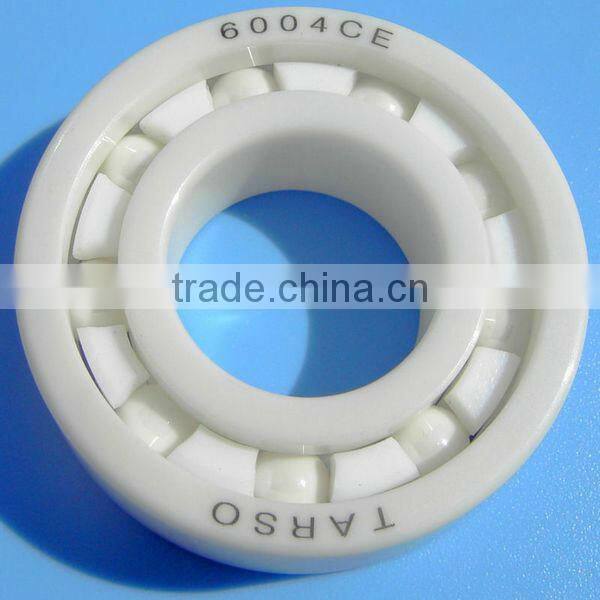

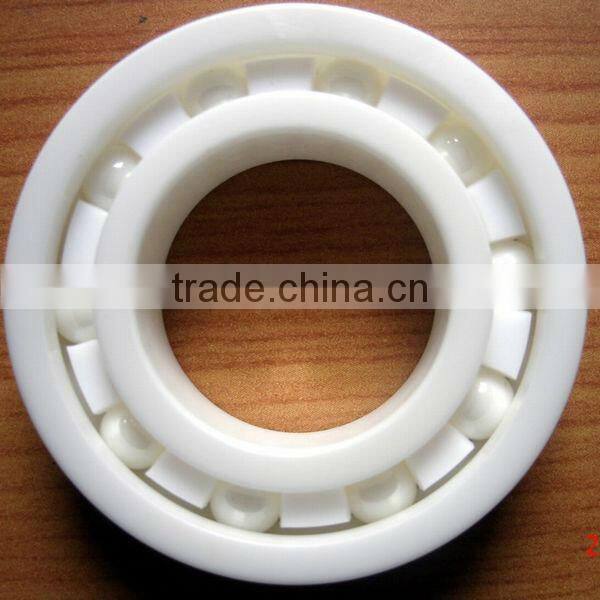

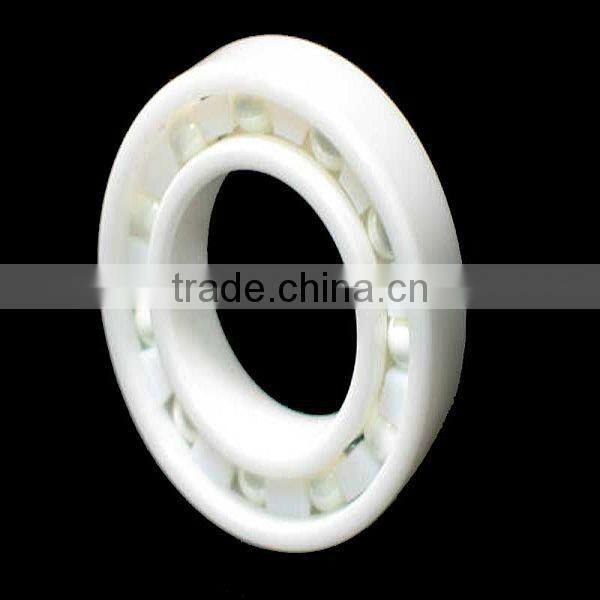

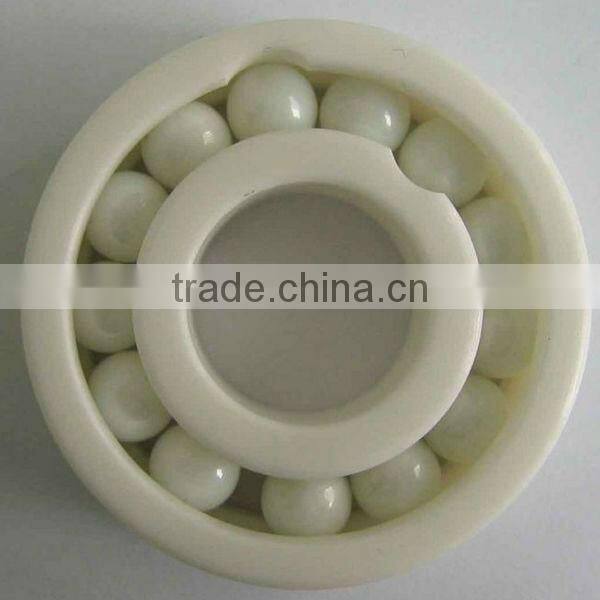

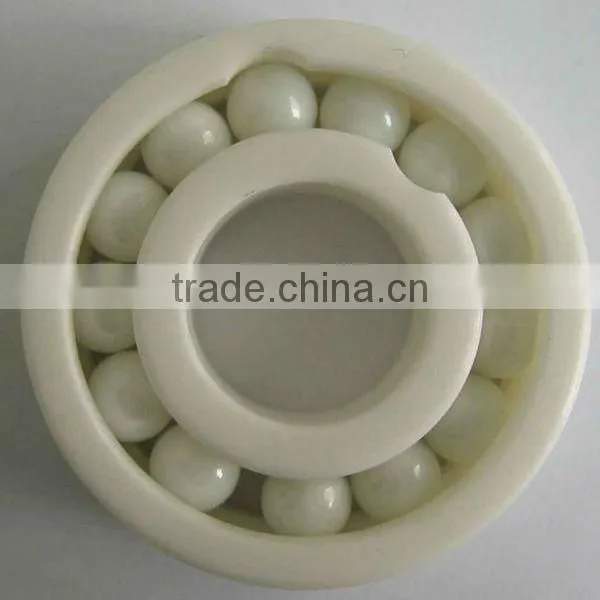

6004 Full Ceramic Ball Bearing
20 x 42 x 12 mm
Full Ceramic 6004 Ball Bearing, the inner diameter is 20mm, outer diameter is 42mm and the width is 12mm, this is a popular size that could be used in many applications, Bearing is made of Ceramic.
- Item: 6004 Ball Bearing
- Type: Full Ceramic Ball Bearing
- Cage: PTFE
- Balls: ZrO2 Ceramic
- Inner/outer races: ZrO2 Ceramic
- Dimensions: 20mm x 42mm x 12mm/Metric
- ID (inner diameter)/Bore: 20mm
- OD (outer diameter): 42mm
- Width/Height/thickness: 12mm
- Size: 20 x 42 x 12 mm
- Quantity: One Bearing
- Highest Temperature: 356 (degrees fahrenheit) = 180 (degrees Celsius)
Parts of models:
|
Bearing No |
Bore d(mm) |
O.d D(mm) |
Width B(mm) |
Load Rating |
Weight (kg) |
|
Dynamic |
Static |
|||||
625 |
Deep Groove Ball Bearing 5 |
16 |
5 |
1.13 |
0.56 |
0.005 |
626 |
6 |
19 |
6 |
2.01 |
1.05 |
0.008 |
627 |
7 |
22 |
7 |
2.53 |
1.36 |
0.014 |
628 |
8 |
24 |
8 |
2.57 |
1.36 |
0.016 |
629 |
9 |
26 |
8 |
3.52 |
1.95 |
0.019 |
6200 |
10 |
30 |
9 |
3.93 |
2.23 |
0.032 |
6201 |
12 |
32 |
10 |
5.25 |
3.05 |
0.035 |
6202 |
15 |
35 |
11 |
5.88 |
3.49 |
0.045 |
6203 |
17 |
40 |
12 |
7.36 |
4.48 |
0.064 |
6204 |
20 |
47 |
14 |
9.88 |
6.20 |
0.103 |
62/22 |
22 |
50 |
14 |
13.35 |
7.25 |
0.121 |
6205 |
25 |
52 |
15 |
10.78 |
6.98 |
0.127 |
62/28 |
28 |
58 |
16 |
15.52 |
8.56 |
0.171 |
6206 |
30 |
62 |
16 |
19.97 |
11.2 |
0.199 |
62/32 |
32 |
65 |
17 |
23.5 |
13.1 |
0.240 |
6207 |
35 |
72 |
17 |
25.7 |
15.4 |
0.287 |
6208 |
40 |
80 |
18 |
29.1 |
17.8 |
0.367 |
6209 |
45 |
85 |
19 |
32.7 |
20.3 |
0.416 |
6210 |
50 |
90 |
20 |
35.1 |
23.3 |
0.462 |
6211 |
55 |
100 |
21 |
43.4 |
29.4 |
0.602 |
6212 |
60 |
110 |
22 |
52.4 |
36.2 |
0.789 |
Company introduction:
Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings.
Our company is engaged in the imported bearings, bearings made of specialized companies, company's main imported brands, Domestic brands: Harbin HRB bearings, Wafangdian ZWZ bearings, Luoyang LYC bearings, and other major brands. Our products are widely used in automotive, electrical, petroleum, chemical machinery, engineering machinery, mine machinery, steel, railways, textile machinery and agricultural machinery, and other fields, the company adequate supply, inventory rich. Transportation is convenient, welcome new customers to visit us !
These products are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries.
With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept.
