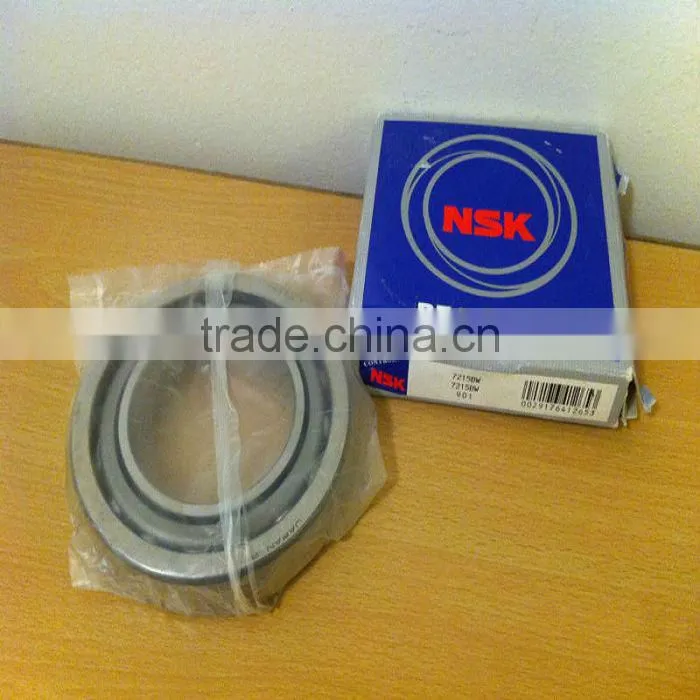

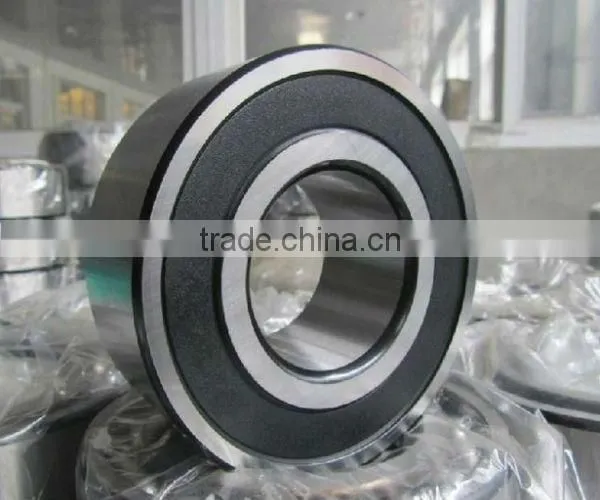

Help Center5317 Bearing Angular Contact ABEC7 Ball Bearing 3317
Related Products
-
Sweden Angular Contact Ball Bearing 7212 BearingUS$ 9.083 - 9.083MOQ: 1 Piece -
3200 Series Double Row Angular Contact Ball Bearing 3206US$ 6.7 - 8.34MOQ: 100 Pieces
-
Angular Contact Ball Bearing 7001 With Nylon CageUS$ 1 - 1MOQ: 10 Sets
-
Chrome Steel Double Row Angular Contact Ball Bearing 5205US$ 2.45 - 3.69MOQ: 100 Pieces
-
Sliding Contact Bearing 7320 Suitable in Home AppliancesUS$ 45 - 45MOQ: 1 Set
Specifications
5317Angular Contact Ball Bearing1.long life
2.Wide range of use
3.Delivery in time
fessional technology
ABEC9 5317 Bearing Angular Contact Ball Bearing 3317
What is mean Angle of angular contact ball bearing?
Angle is bearing stress direction and the vertical Angle.
Angle is smaller, bearing of the radial force is bigger, the smaller the axial force
Commonly used 15 degree is high precision, high speed, which mainly bear radial force and a small number of axial force of angular contact ball bearing
25 degrees and 30 degrees Angle bear radial force relative is big
Forty degrees Angle of the bearing of the axial force is the largest, suitable for axial load and equipment installed in a vertical occasions
Angular contact ball bearing types:
single row angular contact ball bearing:only bear a direction of the axial load. In bear radial load, can cause additional axial force must be applied to the corresponding reverse load, therefore, the bearings are generally used in pairs
double row angular contact ball bearing: Can bear larger in radial direction load primarily radial, axial two-way joint load and torque load, it can restrict shaft or shell two-way axial displacement, the contact Angle is 30 degrees.
four point angular contact ball bearing: also withstand torque load, with the single row angular contact ball bearing and double row angular contact ball bearing function
5317 3317 ball bearing dimensions:
| Inner diameter | 85mm |
| Outer diameter | 180mm |
| Width | 73mm |
| Dynamic | 462KN |
| Static | 655KN |
| Fatigue load limit | 15.6KN |
| Reference speed | 1800r/min |
| Limiting speed | 1800r/min |
| Weight | 52.8kg |
Paired configuration of angular contact ball bearing have three kinds of different configuration pattern:
(1) Back-to-back configuration,rear code is DB, The configuration of the rigid good, bear overturning moment performance good, bearing can be subject to bi-directional load
(2) Face to face configuration,rear code is DF, This configuration rigidity and the ability to withstand overturning moment as DB configuration form, the bearing can be subject to bi-directional load
(3) Series configuration,rear code is DT, This configuration also available in the same bearing place series three or more bearing, but only under single direction of the axial load
Prducts name |
Angular contact ball bearing |
Bra0nd name |
CLUNT |
Series |
7000 series,7200 series ,7300 series ,7405 series,71800 series,71900- series |
ID size |
5 mm - 1350 mm |
Cage material |
Steel , brass , Iron , plastic |
Precision |
P0,P6,P5, P4(ABEC- 1,ABEC- 3,ABEC- 5, ABEC-7) |
Material Used |
GCr15-China, (AISI)52100-American, (Din)100Cr6-Germany |
Quality standard |
ISO9001:2000 standard |
Service |
OEM service |
Delivery date |
Normally ready goods and stock winthin 7 days |
Payment terms |
A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L Western Union,Paypal |
Fields Used In |
Motor, Automobile, Precision Machinery, Electric Tools, Power Tools, Sports. |
Package |
single color box |
| d(mm) | D(mm) | B(mm) | Weight(kg) | Brand | |
| 7303 | 17 | 47 | 14 | 0.21 | NSK |
| 7304 | 20 | 52 | 15 | 0.15 | NSK |
| 7305 | 25 | 62 | 17 | 0.23 | NSK |
| 7306 | 30 | 72 | 19 | 0.35 | NSK |
| 7307 | 35 | 80 | 21 | 0.47 | NSK |
| 7308 | 40 | 90 | 23 | 0.69 | NSK |
| 7309 | 45 | 100 | 25 | 0.89 | NSK |
| 7310 | 50 | 110 | 27 | 1.08 | NSK |
| 7311 | 55 | 120 | 29 | 1.39 | NSK |
| 7312 | 60 | 130 | 31 | 1.71 | NSK |
| 7313 | 65 | 140 | 33 | 2.09 | NSK |
| 7314 | 70 | 150 | 35 | 2.67 | NSK |
| 7315 | 75 | 160 | 37 | 3.1 | NSK |
| 7316 | 80 | 170 | 39 | 3.97 | NSK |
| 7317 | 85 | 180 | 41 | 4.84 | NSK |
| 7318 | 90 | 190 | 43 | 5 | NSK |
| 7319 | 95 | 200 | 45 | 5.7 | NSK |
| 7320 | 100 | 215 | 47 | 8 | NSK |
| 7321 | 105 | 225 | 49 | 8.46 | NSK |
| 7322 | 110 | 240 | 50 | 9.69 | NSK |
| 7324 | 120 | 260 | 55 | 13.8 | NSK |
| 7328 | 140 | 300 | 62 | 21.3 | NSK |
| 7330 | 150 | 320 | 65 | 25 | NSK |
| 7332 | 160 | 340 | 68 | 30.3 | NSK |
| 7336 | 180 | 380 | 75 | 40 | NSK |
| 7340 | 200 | 420 | 80 | 52.8 | NSK |
