Container Handler Tire 1200-24
- Qingdao
- T/T
You May Like
Product Details
| Brand Name | Haulmax | Model Number | E-4 1200-24 |
Product Description
Container Handler Tire 1200-24
Tire Pattern Description:
The harbor tyre is applicable for harbor equipment. The tyre body is tight, the tyre bead is specially treated, the support capability is reinforced, the generation of heat is low, and the tread of tyre has wide running area, massive and deepened patterns, as a result, the tyre has excellent gripping power and braking performance and also has extremely good stability and operating safety under a heavy load condition.
E-4
Specification:
| Size | PR | Pattern NO. | Type | T.D.(mm) | STD.Rim | Inflation Pressure | S.W. (mm) | O.D (mm) | Load Capacity at various Speed | ||||||||
| (psi) | (kpa) | 0km/h | Creep | 5km/h | 10km/h | 15km/h | 20km/h | 25km/h | 30km/h | ||||||||
| S/D | S/D | Static | Creep | 3mph | 5mph | 9mph | 12mph | 15mph | 19mph | ||||||||
| (kpa) | (kpa) | (kpa) | (kpa) | (kpa) | (kpa) | (kpa) | (kpa) | ||||||||||
| 18.00-25 | 40 | E-4 | TL | 69 | 13.00/2.5 | 145 | 1000 | 526 | 1673 | 30600 | 27200 | 24650 | 22950 | 22100 | 21590 | 21250 | 21080 |
| 16.00-25 | 36 | E-4 | TL | 62 | 11.25/2.0 | 160 | 1100 | 432 | 1548 | 24090 | 21415 | 19470 | 18060 | 17400 | 16980 | 16705 | 16535 |
| 16.00-25 | 32 | E-4 | TL | 62 | 1125/2.0 | 145 | 1000 | 432 | 1548 | 22100 | 19650 | 17800 | 16600 | 16000 | 15600 | 15350 | 15195 |
| 16.00-25 | 28 | E-4 | TL | 62 | 11.25/2.0 | 130 | 900 | 432 | 1548 | 20700 | 18400 | 16675 | 15525 | 14950 | 14605 | 14375 | 14260 |
| 14.00-25 | 28 | E-4 | TT | 57 | 10.00/1.5 | 145 | 1000 | 386 | 1417 | 18000 | 16000 | 14500 | 13500 | 13000 | 12700 | 12500 | 12400 |
| 14.00-24 | 32 | E-4 | TL | 57 | 10 | 160 | 1100 | 386 | 1417 | 19605 | 17430 | 15845 | 14700 | 14160 | 13820 | 13600 | 13460 |
| 14.00-24 | 28 | E-4 | TT/TL | 57 | 10 | 145 | 1000 | 386 | 1417 | 18000 | 16000 | 14500 | 13500 | 13000 | 12700 | 12500 | 12400 |
| 12.00-24 | 24 | E-4 | TT | 54 | 8.5 | 145 | 1000 | 333 | 1300 | 13600 | 12150 | 11000 | 10250 | 9850 | 9650 | 9500 | 9400 |
| 12.00-20 | 24 | E-4 | TT | 45 | 8.5 | 145 | 1000 | 340 | 1173 | 14260 | 12700 | 11510 | 9800 | 9440 | 9230 | 8250 | 8180 |
| 10.00-20 | 18 | E-4 | TT | 40 | 7.5 | 145 | 1000 | 300 | 1097 | 9630 | 8560 | 7780 | 7255 | 6990 | 5520 | 5520 | 5480 |

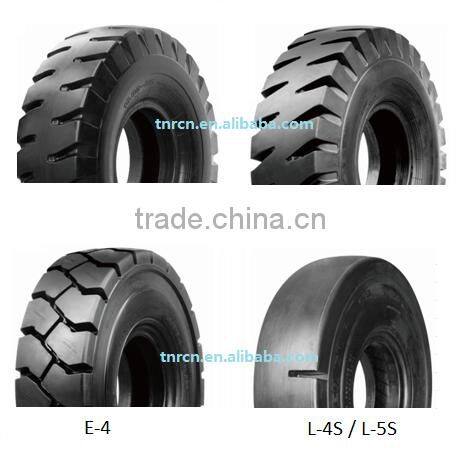

Other patterns available:

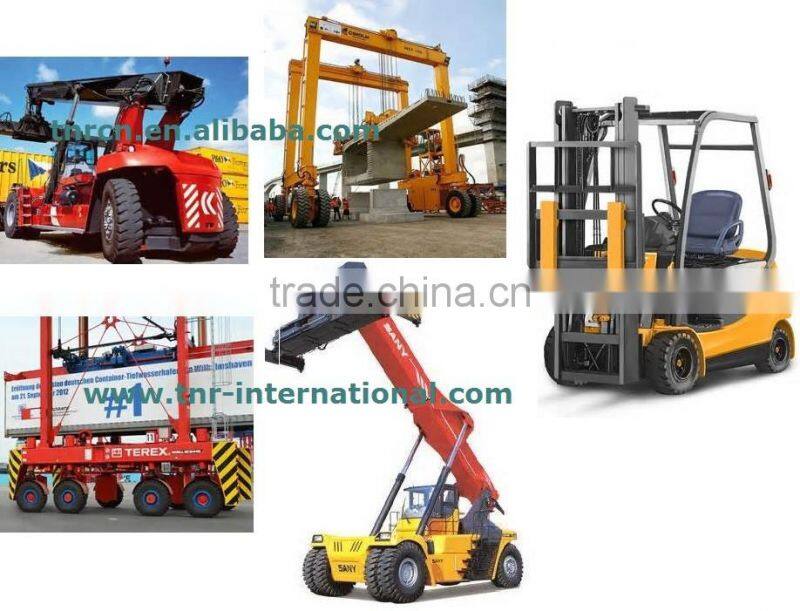

Application:
We are dedicated to offering ON/Off Road tire/wheel applied to:
- Construction Machinery (Loader, ADT, Skid-Steer, Grader)
- Transportation (Truck, Bus, Trailer)
- Agricultural/Irrigation Equipment (Tractor, Combine Harvester, Trailer)
- Forestry Machine (Harvester, Forwarder, Skidder)
- Material Handling (Reach stacker, Forklift)
1. How to gurantee the tires quality?
We have different warranty for different tyres. We Shuanglun tires warrants that every new tire purchased from Shuanglun , is free from any manufacturing defects for a period of 1 year minimum(consult our sales representatives for other situations ) , from the date of shipment
from Shuanglun tires.
2. What is the payment?
T/T: the most effective payment which can insure the delivery time of your tires.
L/C: L/C at sight from good credit bank is acceptable.
3. What is the delivery time?
within 30 days upon receipt of your deposit.
For tyres with enough stock, we can delivery them immediately upon receipt of your deposit.
We are ready to answer your questions 24/7.
If need more information, please contact us freely.
