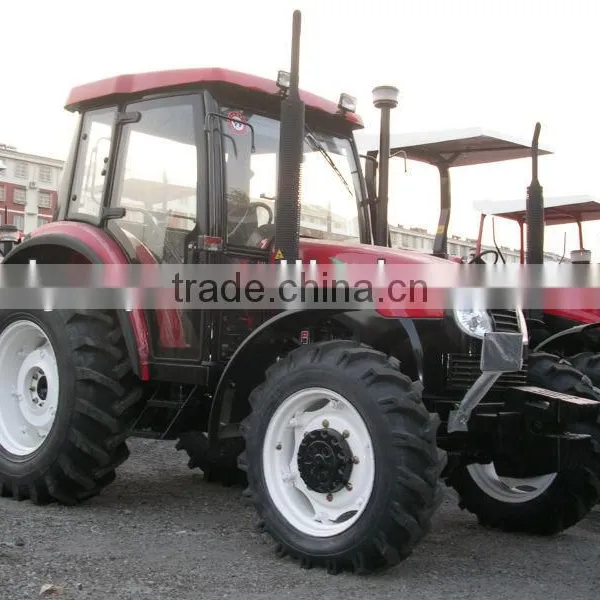

2013 New Chinese Cheap Tractor YTO X704 for Sale

2013 New Chinese Cheap Tractor YTO X704 for Sale thumbnail-1
2013 New Chinese Cheap Tractor YTO X704 for Sale photo-1
US$ 14,800 - 17,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Chunqiu Imp/Exp Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 51kw
Certificate EPA
Brand Name YTO
Model Number X704
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

Specifications

cheap tractor
1.Powerfull YTO diesel engine.
2.High quality and excellent performance.
3.Competitive price.

The characteristic of YTO-X704 wheel tractor

  1. YTO engine, the engine has the strong power and high quality.
  2. Gearbox has 12 forward shifts and 4 reverse shifts.
  3. Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
  4. Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
  5. 1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.



Specification:



Model

YTO-X704

Tractor

Type

4×4

Overall dimensions (LxWxH)(mm)

4350×2170×2740

Wheelbase(mm)

2314

Min. ground clearance(mm)

430

Min. operating mass(with safety stand)(Kg)

3675

Tire spec., front /rear

11.2-28/13.6-38

Wheel tread, front/rear

1630~1960/
1500~2100

Steering

Full hydraulic

Brake

Oil immersed, disk type

Diesel engine

Model

LR4B5-23

Type

Four cylinder, vertical, water cooled, four stroke, direct injection combustion

Displacement (L)

4.95

Rated power/speed(Kw)/(r/min)

58.8/2300

Max. torque (N.m)/speed (r/min)

270/1500-1700

Bore x stroke (mm)

108x125

Transmission

Gear shift, forward/backward

12/4

Speed range (Km/h), forward/backward

1.63~26.82/
4.230~12.69

PTO power (Kw)

50

PTO rotation speed (r/min)

540/720 or 540/1000

Clutch

11-inch, dry, double action

Implement

Three-point linkage category

Three-point linkage category Ⅱ

Tilling depth control mode

Combined draft, position control and floating control

Lifting force(KN)

16

Options

OECD anti-turnover bar

OECD certified anti-turnover bar or anti-turnover bar with awning

Transmission with shuttle-type gear

12+12

Transmission with creeper gear

24+8

Hydraulic output

2 or 3 group

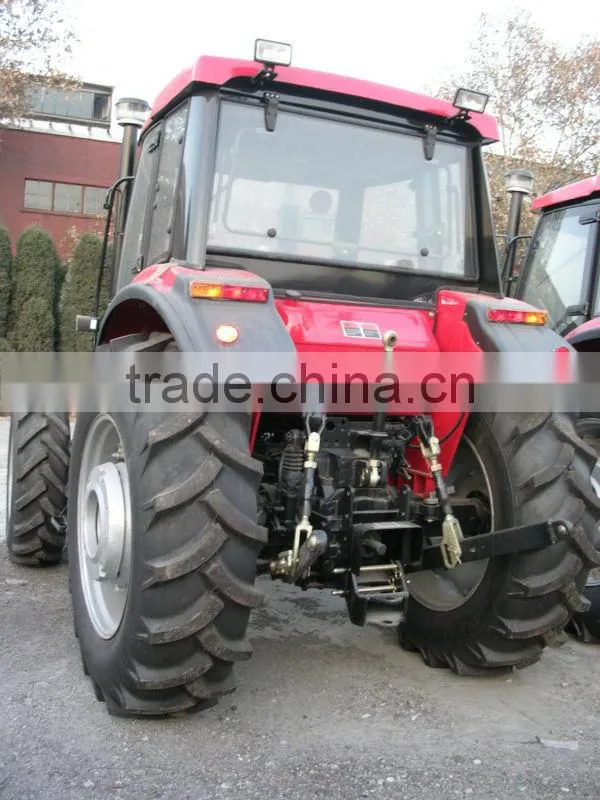

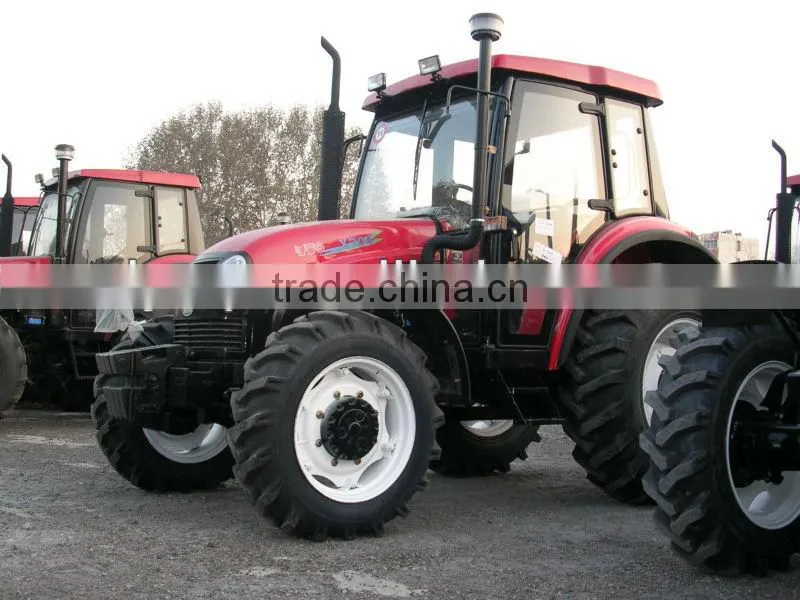

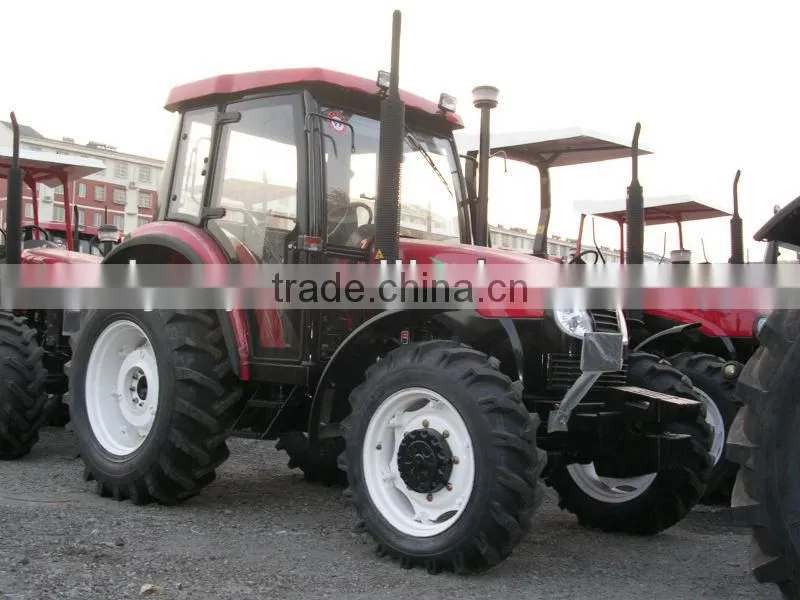

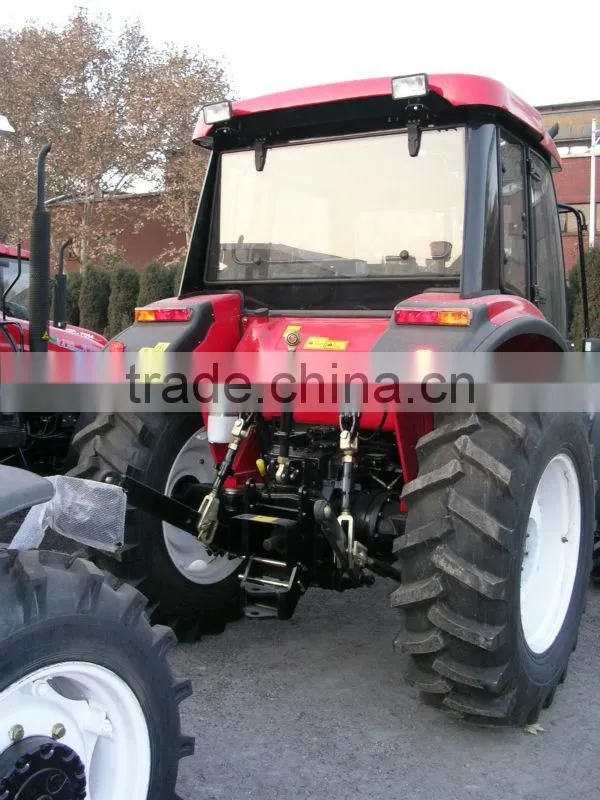

The pictures of YTO wheel tractor:

 2013 new chinese cheap tractor YTO X704 for sale2013 new chinese cheap tractor YTO X704 for sale2013 new chinese cheap tractor YTO X704 for sale



2013 new chinese cheap tractor YTO X704 for sale

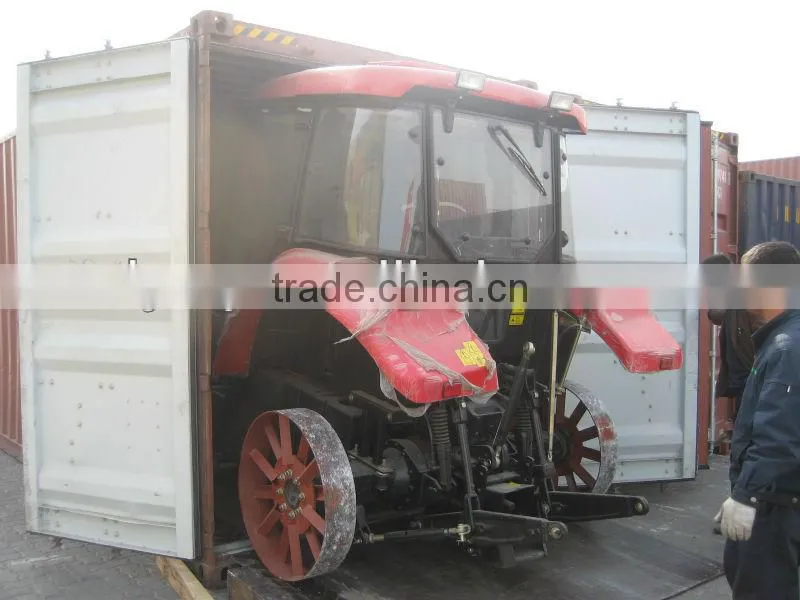

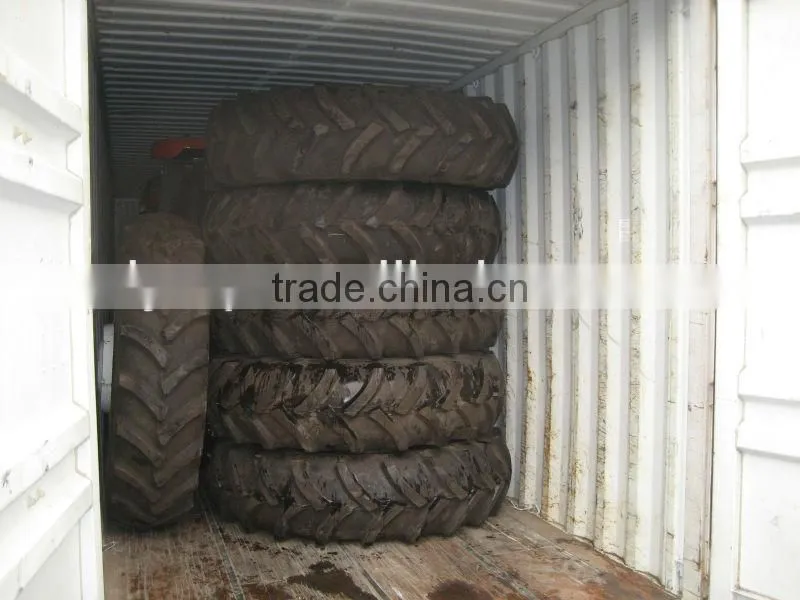

 The pictues of loading container:

2013 new chinese cheap tractor YTO X704 for sale2013 new chinese cheap tractor YTO X704 for sale

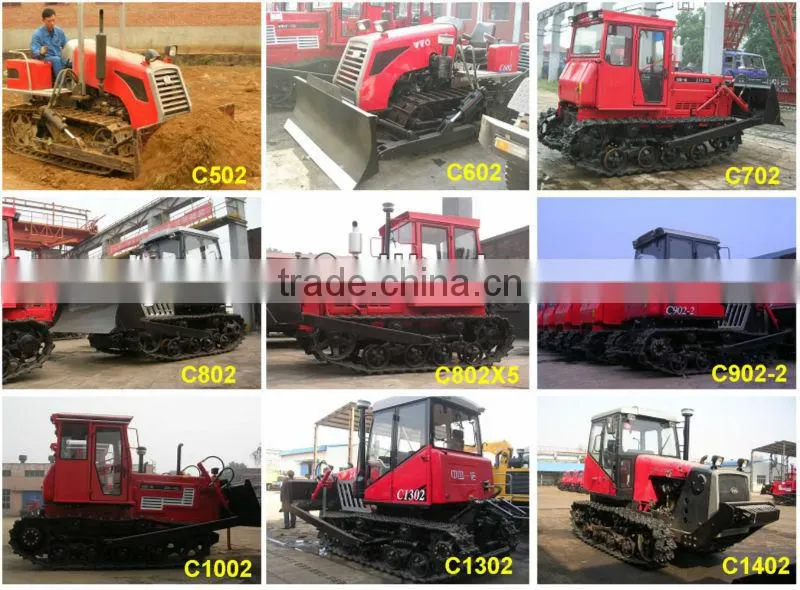

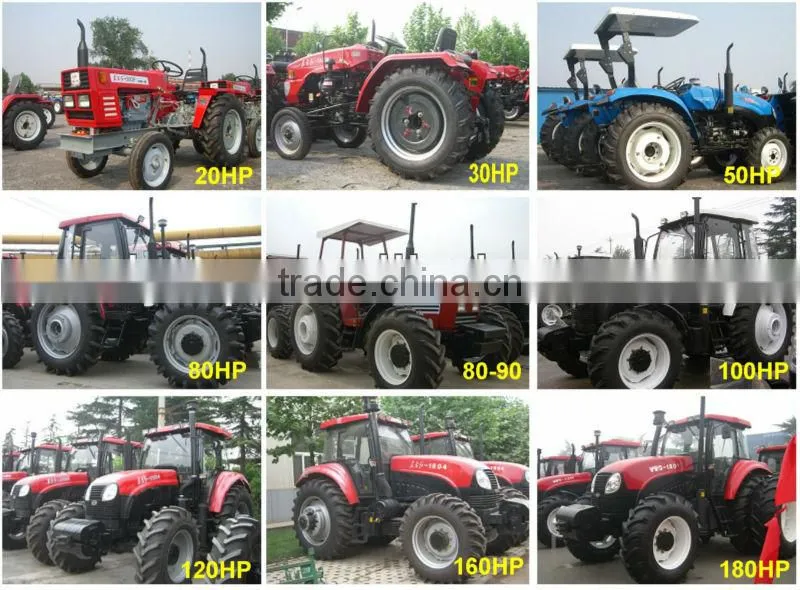

our other mode tractors pictures:

2013 new chinese cheap tractor YTO X704 for sale

2013 new chinese cheap tractor YTO X704 for sale







    Thanks for your attention to our product, If you are interested in our wheel loader or you need more other products, please contact me!
