Home > Products > wheel loader > 5ton Wheel Loader ZL50F With Big Capacity
5ton Wheel Loader ZL50F With Big Capacity
- Shanghai/Tianjin/Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Brand Name | YTO | |
| Model Number | ZL50F/ZL30F | Place of Origin | Henan, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7840x2950x3450mm | Rated Load | 5000kg | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Advanced diesel engine provide strong power.2.Reliable and stable working quality.
3.Meritor axle and hangzhou gear box.
Our company mainly product the construction machineries and heavy equipment. Such as road roller, wheel loader, bulldozer, motor grader and so on. We also can supply series spare parts of these machineries such as hydraulic pump, diesel engine, casting parts and so on. The more details please contact us.
5ton wheel loader ZL50F with big capacity

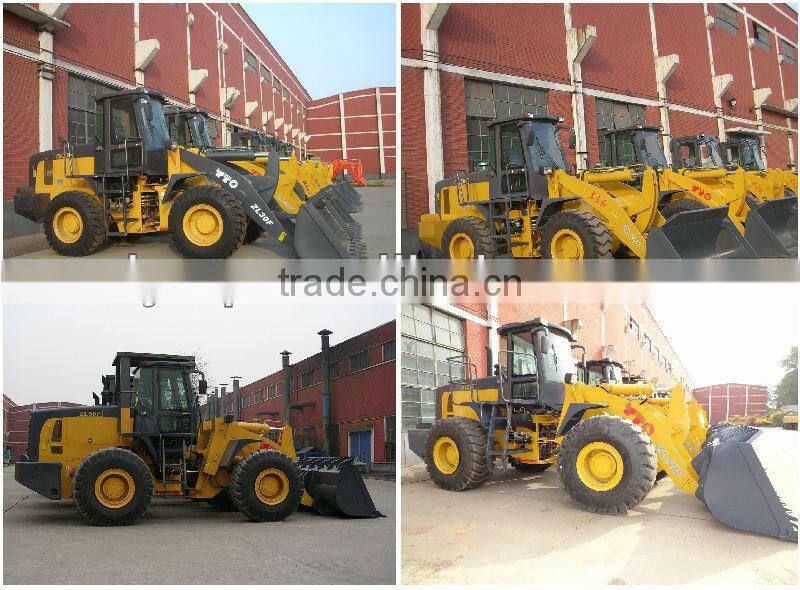

1.The pictures of wheel loaders
2.The picture of product line and diesel engine.

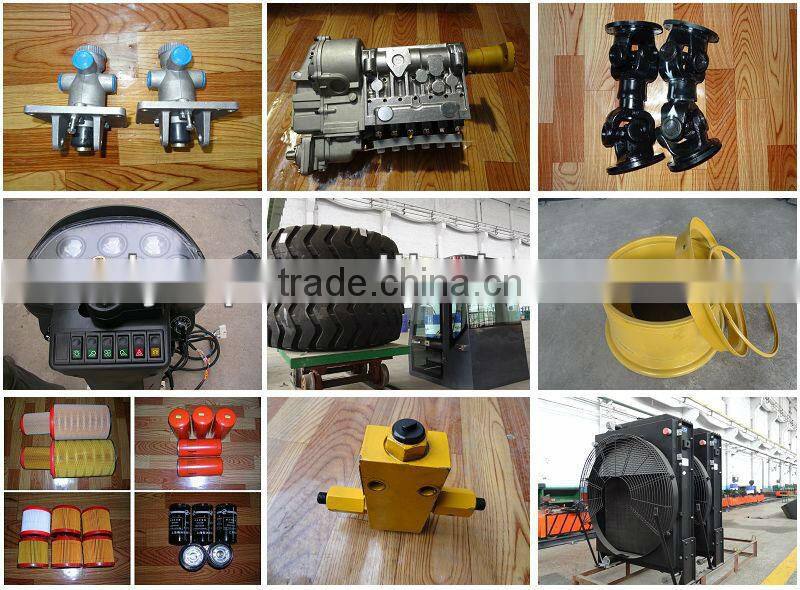

3.Other parts of wheel loader

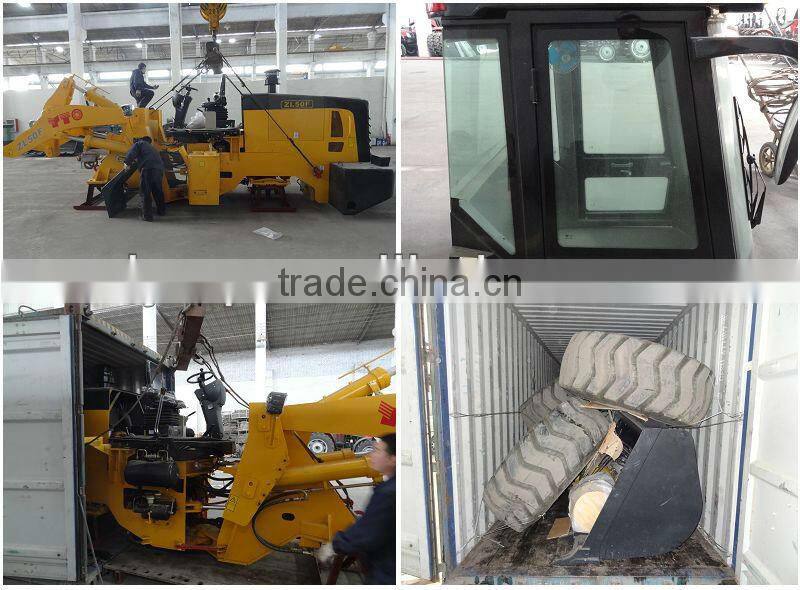

4.The pictures of wheel loader for container
5.Main features and specifications of wheel loader
1.YTO LR6B3-22 ( Deutz diesel engine is optional) diesel engine is applied as it features bigger power reserve, stronger power, bigger torque reserve coefficient ,and fuel features economical and environmentally protected.
2.Torque-varied device features high efficiency and big torque-varied coefficient ; as it equips
with higher reliable gear-box and drive axis , it comes with bigger traction and longer life.
3.As rear car rack is applied to single-plate T-shaped girder, so it features more stability, higher
reliability, bigger interior space and easier maintenance.
4.As fully hydraulic turning system equips with equidistant hinged car rack , frontal and rear
wheel have the same track , eliminating hermit power loss while turning , and it features easier
and more flexible operation , and has more stable performance.
5. Expand torque-varied oil heat radiator and water one. Make it high efficiently radiated, so as to suit for heavy load and high temperature operation environment.
6. Several devices are optional according to the customer and different working condition, such as the joystick, FOPS/ROPS , coal bucket, rocket bucket and log grapple.
Model |
| ZL30F | ZL50F |
Total weight | kg | 10200 | 16500 |
Bucket capacity | m3 | 1.7 | 3 |
Rated load | kg | 3000 | 5000 |
Movable arm lifting time | s | ≤5.5 | ≤6.5 |
Three item time | s | ≤10.5 | ≤11.5 |
Min turning radius | mm | 5110 | 6770 |
Forward 1-4gear | km/h | 7.7~33.6 | 11.5~38 |
Reverse1-2 gear | km/h | 9.5~28 | 10~29 |
Dumping height | mm | 3200 | 3200 |
Dumping reach | mm | 970 | 1180 |
Overall dimension(L×W×H) | mm | 7000×2425×3300 | 7840×2950×3450 |
Engine model |
| LR6B3-22 | WD10G220E21 |
Engine rated power | kW | 92 | 162 |
Fuel capacity | L | 140 | 280 |
Thanks for your attention to our product, If you are interested in our wheel loader or you need more other products, please contact me!
