Specifications
1.YTO brand tractor2.Transmission system using Italian technology
3.Adopts double action clutch
4.LxWxH 4350x2170x2740mm

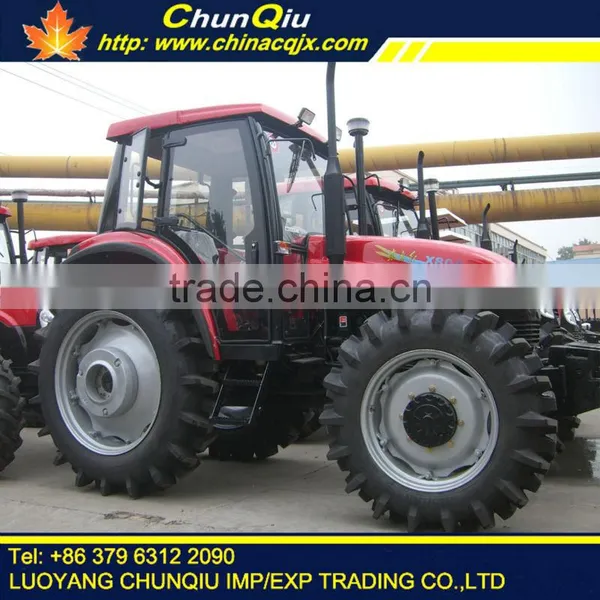

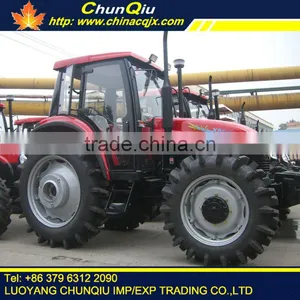

YTO brand model X804 agricultural tractor for sale
Main Features:
1.The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission .
2.The transmission system is made on the basis of Italian technology .The top speed can be more than 35km/h.
3.The full hydraulic steering system is utilized for easy operation.
4.High safety ensured due to the use of the wet disc brake.
5.Optional new can is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.
6.In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30KN).
7.Our wheel tractor adopts double action clutch. German LUK clutch is available for your choice.
Main technological parameters:
Model |
YTO-X804 |
Tractor |
|
Drive type |
4x4 |
Overall dimensions (LxWxH)(mm) |
4350x2170x2740 |
Wheelbase(mm) |
2314 |
Min. ground clearance (mm) |
430 |
Min.operating mass (with safety stand)(Kg) |
3675 |
Tyre spec, front/rear |
11.2-28/13.6-38 |
Wheel tread, front/rear |
1630-1960/1500-2100 |
Steering |
Full hydraulic |
Brake |
Oil immersed, disc type |
Diesel engine |
|
Model |
LR4B5-23 |
Type |
Four cylinder,vertical,water cooled,four stroke,direct injection combustion |
Displacement(L) |
4.59 |
Rated power/speed (Kw)(r/min) |
58.8/2300 |
Max. torque (N.m)/speed(r/min) |
270/1500-1700 |
Bore x stroke(mm) |
108x125 |
Transmission |
|
Gear shift, forward/backward |
12/4 |
Speed range(Km/h), forward/backward |
1.63-26.82/4.23-12.69 |
PTO power(Kw) |
50 |
PTO rotation speed(r/min) |
540/720 or 540/1000 |
Clutch |
11-inch,dry,double action |
Implement |
|
Three-point linkage category |
three-point linkage category II |
Tilling depth control mode |
Combined draft,position control and floating control |
Lifting force(KN) |
16 |
Options |
|
OECD anti-turnover bar |
OECD certified anti-turnover bar or anti-turnover bar with awning |
Transmission with shuttle-type gear |
12+12 |
Transmission with creeper gear |
24+8 |
Hydraulic output |
2 or 3 group |
