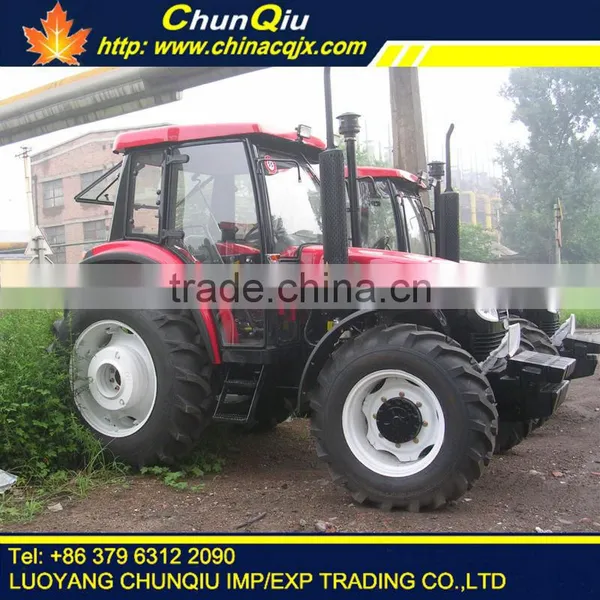

YTO brand model X904 90hp tractor for sale

Specifications

1.YTO brand tractor
2.Transmission system using Italian technology
3.Full hydraulic steering system
4.LxWxH 4400x2120x2765mm



  YTO brand model X904 90hp tractor for sale





Main Features:



1.The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission . PERKINS engine is also optional.

2.The transmission system is made on the basis of Italian technology .The top speed can be more than 35km/h.

3.The full hydraulic steering system is utilized for easy operation.

4.High safety ensured due to the use of the wet disc brake.

5.Optional new can is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.

6.In addition to built-in master cylinder., two auxiliary cylinders can also be used, resulting in increased lift force (30KN).

7.Our wheel tractor adopts double action clutch. German LUK clutch is available for your choice.



Main technological parameters:



Model	YTO-X904
Tractor
Drive type	4x4
Overall dimensions (LxWxH)(mm)	4400x2120x2765
Wheelbase(mm)	2314
Min.ground clearance (mm)	440
Min.operating mass (with cabin)(Kg)	4130
Tyre spec,front/rear	13.6-24/16.9-34
Wheel tread,front/rear	1562-2000/1520-2120
Steering	Full hydraulic
Brake	disc type,oil bath, controlled by hydraulic power with pedal
Diesel engine
Model	YTO-LR4A3L-T10
Gear box
Gears (forward/reverse)	12/4
Speed range(Km/h), forward/backward	2.11-35.7/5.48-16.9
PTO power(Kw)	55
PTO rotation speed(r/min)	540/1000
Clutch	11-inch,dry,double action
Working device
Kind of three-point suspension	Postposition three-point suspension, category II
Tilling depth control mode	Combined draft, position control and floating control
Control mode of tilling depth	Force adjusting, position adjusting, force and position combination adjusting, floating adjusting
Lifting force(KN)	17
