Specifications
1.Use SHANGCHAI engine2.service brakes on the front & rear axles and central parking brake
3.Dozer blade HxW 1650x3000mm

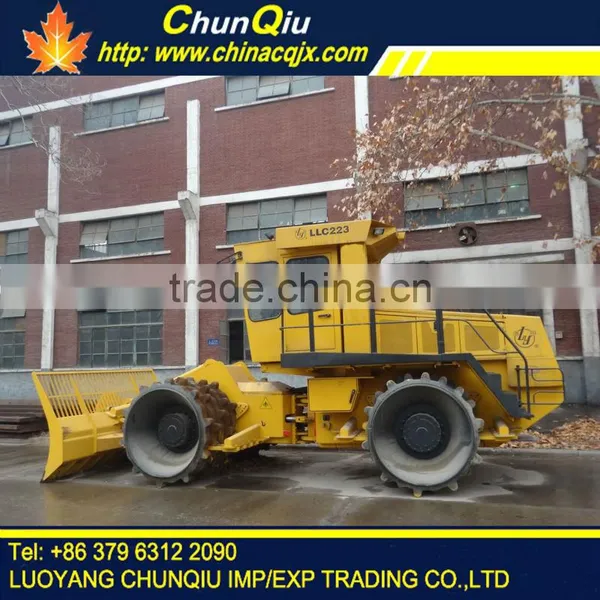

YTO 23 ton compactor LLC223 refuse compactor truck for sale
The refuse compactors are essential equipments for refuse landfill site. It has the functions of pushing, spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site.
Main features:
1.SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
2.Torque converter and power gearshift transmission are applied on four wheels.
3.The high wear life teeth are arranged specially, two scraper bars and two wire cutters on
four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
4.Hydraulic system is driven by a piston pump with load sensing system, provides smooth
and light control,high efficiency and energy economy.
5.The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
6.The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
7.Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
8.Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
Main technological parameters:
Model |
LLC223 |
|
Operating mass |
kg |
23000 |
Rolling width |
mm |
2910 |
Travel speed |
km/h |
10 |
Gradeability |
% |
100 |
Dozer blade heightxwidth |
mm |
1650×3000 |
Wheelbase |
mm |
3350 |
Clearance |
mm |
435 |
wheel width (front/rear) |
mm |
1040/835 |
wheel diameter (front/rear) |
mm |
1500/1500 |
Teeth No.per wheel (front/rear) |
mm |
50/40 |
Diesel engine model |
SC8D200/SC11CB255 |
|
Diesel engine power |
kW |
147/187 |
Overall dimensions at dozer blade |
mm |
7355×3000×3600 |
Overall dimensions at front wheel |
mm |
7355×2910×3600 |
