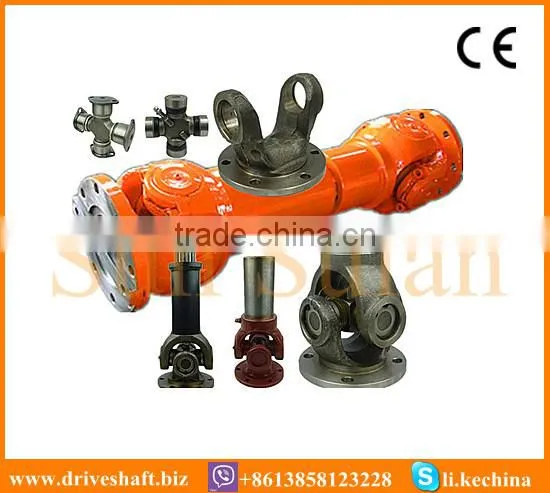

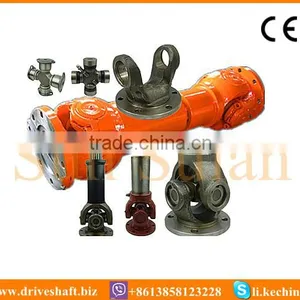

shaft coupling with CE certifation
A: Welded shaft type with length compensation / expansion joint
B: Short type with length compensation / expansion joint
C: Short type without length compensation / expansion joint
D: Long type without length compensation / expansion joint
E: Double flange with length compensation / expansion joint
F: Long type with big length compensation / big expansion joint
G: Super Short type with length compensation / expansion joint
shaft coupling advantage :
1.Excellent performance, long using life and competitive price.
2.Heat resistant&Distortion resistant
3.High intensity and rigidity.
4.Meet Iso9001: 2008 quality system
5.Your sample request are welcomed
6.With own R&D dept., OEM orders are available
shaft coupling Quality Control:
1.Chemical Composition confirm after Ingot
2.Hardness after Heat Treatment
3.Final Dimension Check
Quality Assurance Document:
1.Item Testing Plan will be submit to customer in 1 day after contract signed.
2.All the Q.A Document as per Client Requirement will be submitted before final product shipped out.
Packing and shipping:
1 Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Delivery : As per contract delivery on time
4. Shipping : As per client request. We can accept CIF, Door to Door etc. or client authorized agent we supply all the necessary assistant
4. shaft coupling Drawings
02_ shaft coupling
| Model | Rotary Diameter D | Nominal Torque Tn Kn.m | Fatigue Torque Tf Kn.m | Axial Angle? α ≤? | Flexible S |
| SWP160 | 160 | 16 | 8 | 10° | 50 |
| SWP180 | 180 | 20 | 10 | 10° | 60 |
| SWP200 | 200 | 31.5 | 16 | 10° | 70 |
| SWP225 | 225 | 40 | 20 | 10° | 75 |
| SWP250 | 250 | 63 | 31.5 | 10° | 80 |
| SWP285 | 285 | 90 | 45 | 10° | 100 |
| SWP315 | 315 | 126 | 63 | 10° | 110 |
| SWP350 | 350 | 180 | 90 | 10° | 120 |
| SWP390 | 390 | 250 | 120 | 10° | 120 |
| SWP435 | 435 | 355 | 160 | 10° | 150 |
| SWP480 | 480 | 450 | 224 | 10° | 170 |
| SWP550 | 550 | 710 | 355 | 10° | 190 |
| SWP600 | 600 | 1000 | 500 | 10° | 210 |
| SWP640 | 640 | 1250 | 630 | 10° | 230 |
| Model | Rotary Diameter D | Nominal Torque Tn KN.m | Fatigue Torque Tf KN.m | Axial Angle α ≤ |
| SWC100 | 100 | 1.6 | 0.8 | 25o |
| SWC120 | 120 | 4.5 | 2.25 | 25o |
| SWC150 | 150 | 10 | 5 | 25o |
| SWC180 | 180 | 20 | 10 | 25o |
| SWC200 | 200 | 36 | 18 | 15o |
| SWC225 | 225 | 50 | 25 | 15o |
| SWC250 | 250 | 71 | 35.5 | 15o |
| SWC285 | 285 | 100 | 50 | 15o |
| SWC315 | 315 | 140 | 70 | 15o |
| SWC350 | 350 | 200 | 100 | 15o |
| SWC390 | 390 | 280 | 140 | 15o |
| SWC440 | 440 | 400 | 200 | 15o |
| SWC490 | 490 | 560 | 280 | 15o |
| SWC550 | 550 | 800 | 400 | 15o |
| SWC620 | 620 | 1120 | 560 | 15o |
5 shaft coupling .Advantages / Features:
1. Materials:
Our company has purchased steel from several large steel groups , such as Hangzhou Steel Mill, Shanghai Bashan Steel Mill, Beijing Shrugging Steel Mill whose steel have good mechanical properties and stability of chemical component. it keep the shaft to be of high quality.
2. Manufacture Procession
First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.
The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
The third, in heat treatment: We use the Controlled-atmosphere Automatic heat treatment Furnace, we also have four mesh belt convey furnaces, Can deal with the products in different sizes keeping the non-oxidation surface
3. Quality Control:
The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing. 100% inspection during production .
6. shaft coupling CE
7. shaft coupling Packing and Containr Loading
