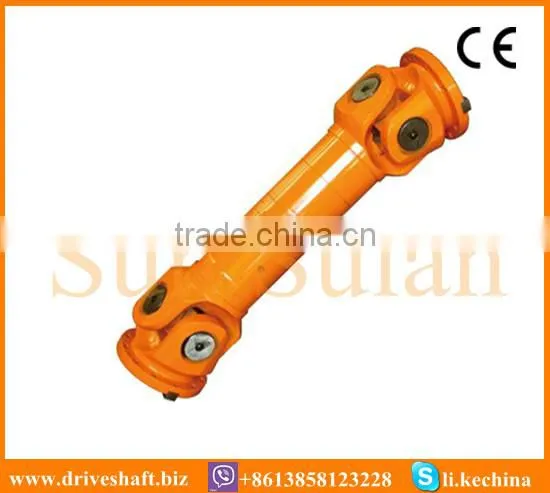

SWP-WD without flex short cardan shaft
- 50000 Piece / Pieces per Month
- SHANGHAI OR NINGBO PORT
- T/T L/C D/P D/A
- coupling CZ50-250 for power station
- screw pump coupling HSNH280-54A for power plant
- Customized flexible steel motor shaft coupling pump coupling
- China manufacturer Motor side coupling DTPD30FM002 for power generation
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
- Made in China Type 03 Coupling U238/2ZT(DY) for thermal power plant
Product Details
Structure: | Universal | Flexible or Rigid: | Rigid | Standard or Nonstandard: | Standard |
Material: | Steel | Brand Name: | PAPAYA | Place of Origin: | Zhejiang, China |
Model Number: | SWC,SWP |
Product Description
Specifications
short cardan shaft1.two year Warranty
2.long service life
3.CE
4.Material:20Cr2Ni4A and 35CrMo
SWP,SWC,WSD,WS universal coupling (with split bearing pedestal) with CE certifation
A: Welded shaft type with length compensation / expansion joint
B: Short type with length compensation / expansion joint
C: Short type without length compensation / expansion joint
D: Long type without length compensation / expansion joint
E: Double flange with length compensation / expansion joint
F: Long type with big length compensation / big expansion joint
G: Super Short type with length compensation / expansion joint
SWC Cardan shaft coupling advantage :
1.Excellent performance, long using life and competitive price.
2.Heat resistant&Distortion resistant
3.High intensity and rigidity.
4.Meet Iso9001: 2008 quality system
5.Your sample request are welcomed
6.With own R&D dept., OEM orders are available
Quality Control:
1.Chemical Composition confirm after Ingot
2.Hardness after Heat Treatment
3.Final Dimension Check
Quality Assurance Document:
1.Item Testing Plan will be submit to customer in 1 day after contract signed.
2.All the Q.A Document as per Client Requirement will be submitted before final product shipped out.
Packing and shipping:
1 Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Delivery : As per contract delivery on time
4. Shipping : As per client request. We can accept CIF, Door to Door etc. or client authorized agent we supply all the necessary assistant

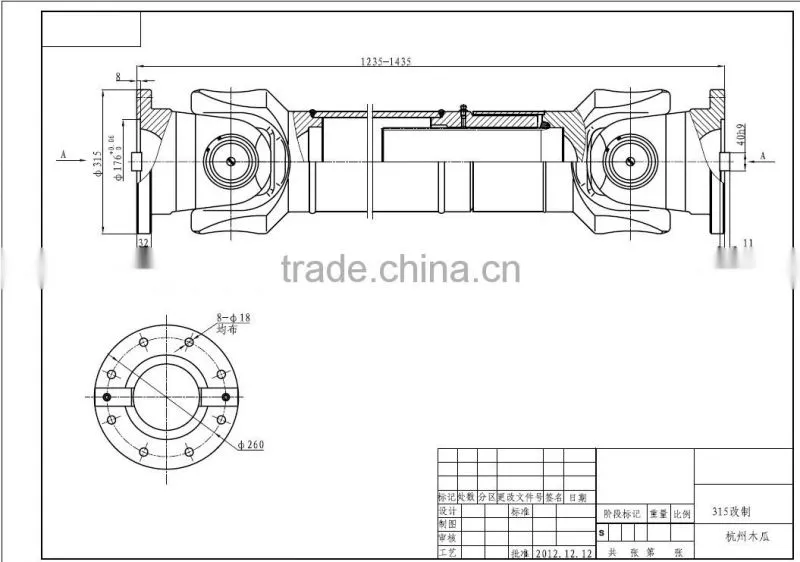

4.Drawings
02_
Model | Rotary Diameter D | Nominal Torque Tn Kn.m | Fatigue Torque Tf Kn.m | Axial Angle? α ≤? | Flexible S |
SWP160 | 160 | 16 | 8 | 10° | 50 |
SWP180 | 180 | 20 | 10 | 10° | 60 |
SWP200 | 200 | 31.5 | 16 | 10° | 70 |
SWP225 | 225 | 40 | 20 | 10° | 75 |
SWP250 | 250 | 63 | 31.5 | 10° | 80 |
SWP285 | 285 | 90 | 45 | 10° | 100 |
SWP315 | 315 | 126 | 63 | 10° | 110 |
SWP350 | 350 | 180 | 90 | 10° | 120 |
SWP390 | 390 | 250 | 120 | 10° | 120 |
SWP435 | 435 | 355 | 160 | 10° | 150 |
SWP480 | 480 | 450 | 224 | 10° | 170 |
SWP550 | 550 | 710 | 355 | 10° | 190 |
SWP600 | 600 | 1000 | 500 | 10° | 210 |
SWP640 | 640 | 1250 | 630 | 10° | 230 |
5 .Advantages / Features:
1. Materials:
Our company has purchased steel from several large steel groups , such as Hangzhou Steel Mill, Shanghai Bashan Steel Mill, Beijing Shrugging Steel Mill whose steel have good mechanical properties and stability of chemical component. it keep the shaft to be of high quality.
2. Manufacture Procession
First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.
The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
The third, in heat treatment: We use the Controlled-atmosphere Automatic heat treatment Furnace, we also have four mesh belt convey furnaces, Can deal with the products in different sizes keeping the non-oxidation surface
3. Quality Control:
The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing. 100% inspection during production .

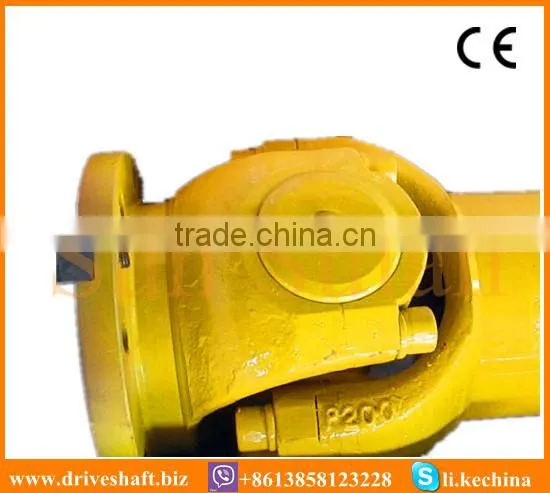

6.CE

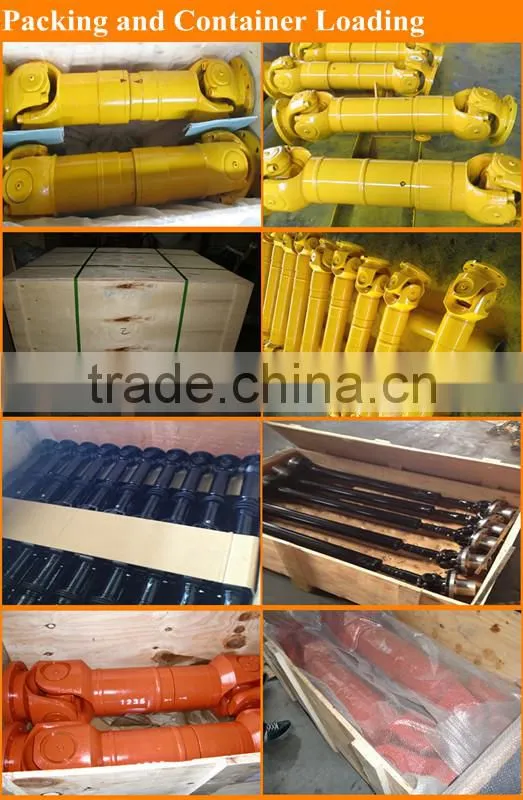

7.Packing and Containr Loading
