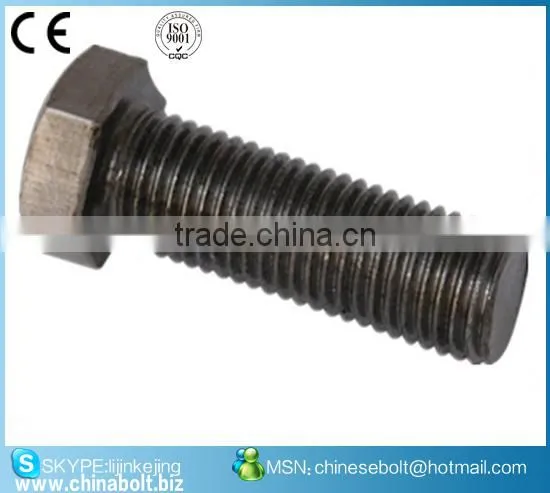

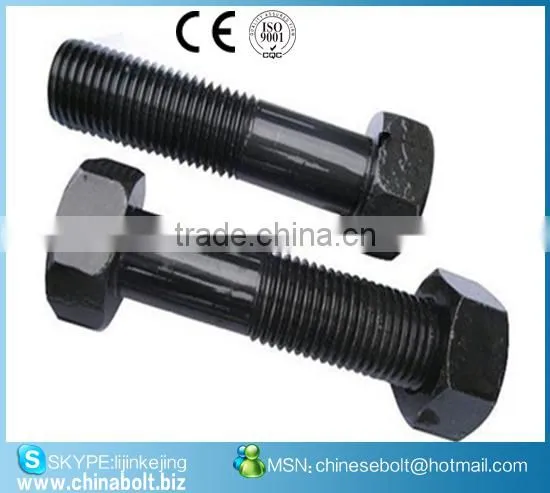

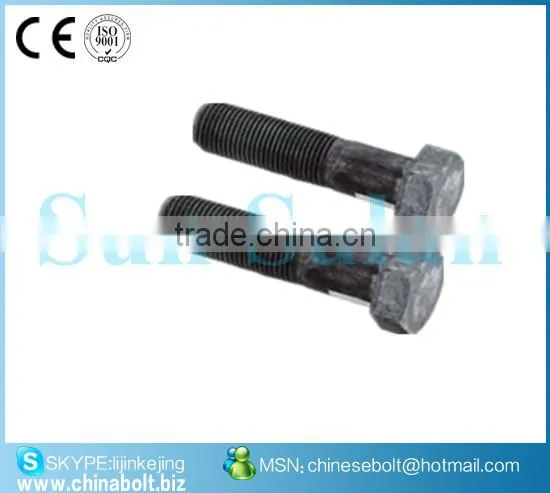

ASTM A307 - Carbon Steel Externally Threaded Fasteners
US$ 0.1 - 1.5
MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
PAPAY
Model Number:
M6-M100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM F1554 Grade 36/Grade 55 High Quality Anchor Bolts / Foundation BoltUS$ 1 - 1.2MOQ: 1 Ton -
Heavy Hex Structural Bolt,7/8"-8 UNC * 3 1/2"L Grade A325US$ 0.1 - 1.5MOQ: 1 Ton
-
Rod ASTM A320 L7 / Full Threaded Stud RodsUS$ 1 - 1.2MOQ: 1 Ton
-
ASTM A320 L7 All Thread Stud Bolt / Galvanized Thread RodUS$ 1 - 1.2MOQ: 1 Ton
-
Metric Hex Head Bolt Class 8.8 ASTM A325M M22US$ 1 - 1.2MOQ: 1 Ton
Place of Origin
Zhejiang, China
Brand Name
PAPAY
Model Number
M6-M100
Specifications
Hex bolt1.use for General Electric Company
2.Size: M12-M36
3.Finish:plain, zinc plated, hot dip galvanized, dacroment
Mechanical Properties
| Grade | Tensile, ksi | Yield, min, ksi | Elong %, min |
|---|---|---|---|
| A | 60 min | -- | 18 |
| B | 60 - 100 | -- | 18 |
| C* | 58 - 80 | 36 | 23 |
Chemical Properties
| Element | Grade A | Grade B |
|---|---|---|
| Carbon, max | 0.29% | 0.29% |
| Manganese, max | 1.20% | 1.20% |
| Phosphorus, max | 0.04% | 0.04% |
| Sulfur, max | 0.15% | 0.05% |
Dimensions
| Bolt Diameter | D | F | C | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
| Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 3/8 | 0.388 | 9/16 | 0.562 | 0.544 | 0.650 | 0.620 | 1/4 | 0.268 | 0.226 |
| 1/2 | 0.515 | 3/4 | 0.750 | 0.725 | 0.866 | 0.826 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 15/16 | 0.938 | 0.906 | 1.083 | 1.033 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-3/8 | 3.375 | 3.262 | 3.897 | 3.719 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 1-21/32 | 1.708 | 1.479 |
