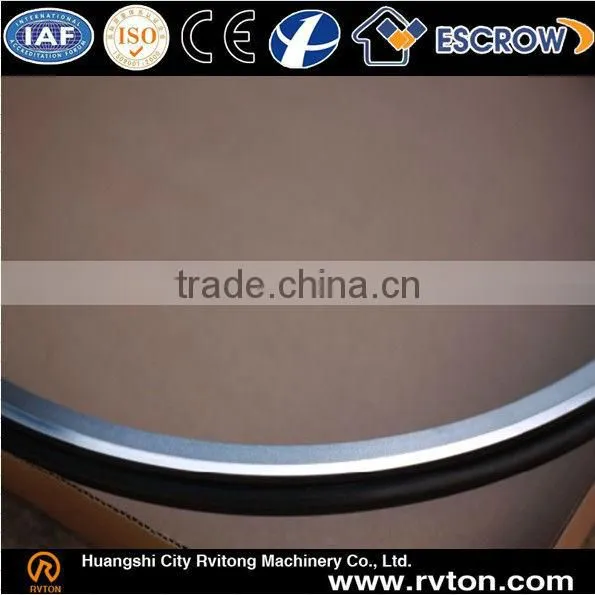

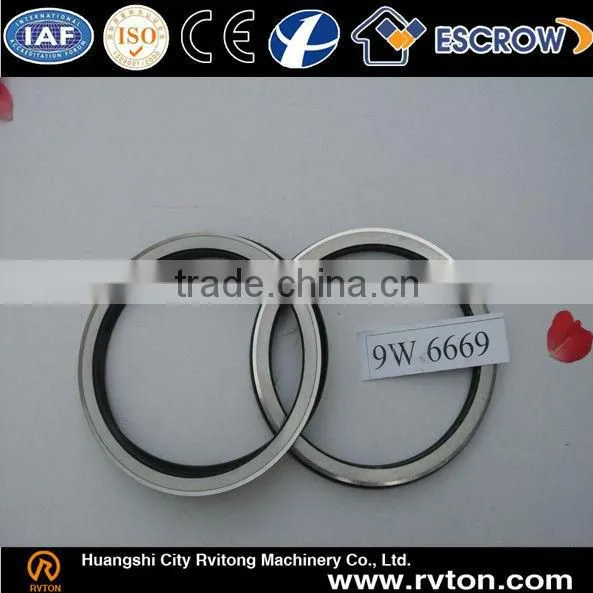

Floating Seal imported bulldozers
1.Size: 50-1000MM
2.Material:534A99&SUJ2
3.Apply For Excavator &Bulldozer
4.Certificate:ISO&CE
METHOD OF INSTALLATION
1.Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.

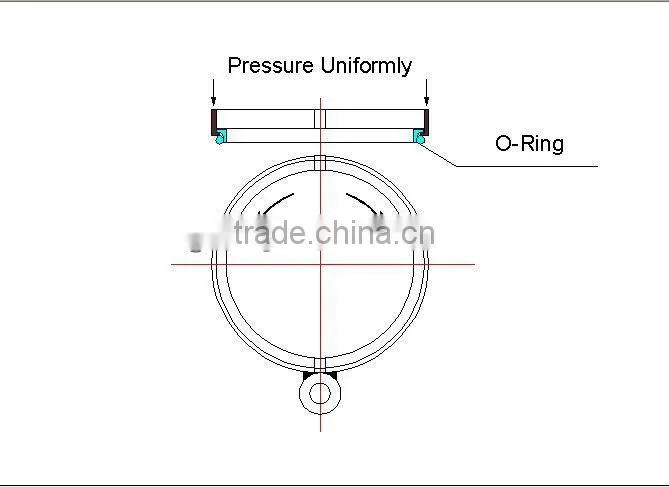

2.Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.
WORKFLOW
original product
grinding
Semi-Finished Goods
Finished product
Packing
Shipment
COMPANY INTRODUCTION
Huangshi Rvitong Machinery Ltd. is a professional factory on floating seal, founded in 2004.
Our factory absorb the Italian GNL advanced technology of production as many years and
research and experience, we have a special system to reach different customers
requirement.
The inner diameter of floating seal is from 50-1400mm. Now my factory have two production
line: one is for forgeable piece, hardness is HRC58-62, worktime is 4000HRS; the other is
for cast, hardness is HRC65-72, worktime is 6000HRS. There are four different types:
stander type, XY type, L type and iron plate type.
Customers Design and Small Quantity Trial Orders are welcomed. We are doing my best to
reach your requirement in good service, reputation and faith for long and strong
relationship.
We sincerely welcome you to join us.
GROUP PHOTO WITH FRENCH CUSTOMER
