Specifications
1.Lower price2.Take less time on batching process
3.Long working life
4.High performance
HZS180 concrete batching plant is composed of batching and measuring system of aggregate, cement ,water ,additive ,mixing system ,electrical control system, image monitoring system, communication system and steal frame. It applies to large scale construction projects of road, bridge, dam, airport, sea port...and other places having large demand of concrete, like commercial ready-mixed concrete of city.
Main Feature
1 ,Adopting module combined structure, can have many organizing styles according to actual situation.
Showing

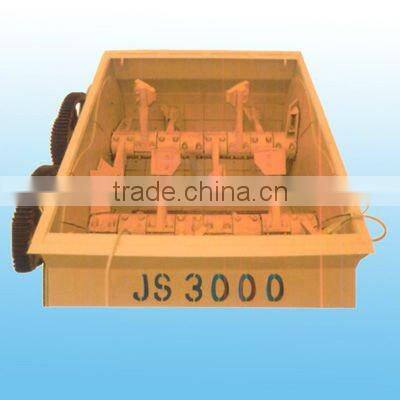

2The mixing system adopts MAO3000 dual-axial compulsive mixer, with good quality and high efficiency.

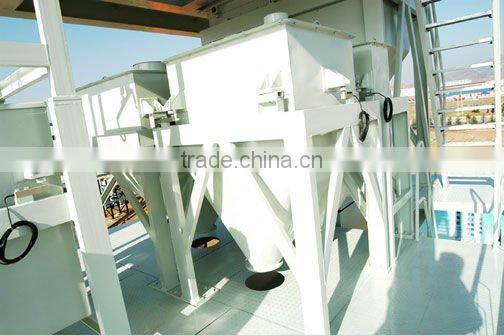

3,The dosing of aggregate, cement, water and additive measures by electronic scale.
4,The electrical control system mainly adopts imported elements, functional, reliable, and convenient.
5,The design manly adopts national newest standard<GB/T9142-2000concrete mixer>,<GB10171-2005 concrete batching plant>and enterprise standard<Q/FJ011-1999HZS series concrete batching plant verification regulations> and so on. The design, production and managing procedure are correspond with<ISO9001-2000:qualitycertification>and<ISO14001-1996:environmental management system>.
|
Item |
Parameter |
Item |
Parameter |
||
|
Model |
HZS180 |
Screw conveyor |
Model |
3 × LSY300-12m |
|
|
Productivity |
180m3/H |
Model |
1×LSY250-12m |
||
|
Mixer |
Model |
MAO3000 |
Model |
1 × LSY160-12m |
|
Discharging volume |
3000L |
Silo |
5 × 100t(or according to the customers) |
||
Charging volume |
4800L |
Compressor |
Model |
W2.0/7 |
|
|
Motor power |
2 × 55kW |
Power |
11kW |
||
Batching machine |
Storage hopper capacity |
4 × 25m3 |
Electronic control system |
Full-automatic control by computer |
|
Weighing hopper capacity |
4 × 1.6m3 |
Trends color display and chinese captions |
|||
Feeding belt power |
11kW |
Print the record of production as requested |
|||
Feeding belt speed |
1.6m/s |
Monitoring system with Multipoint camera |
|||
Water and admixtures tank |
water tank |
1 × 10m3 |
Sand/water ratio hygrometric machine(option)
|
||
Admixtures tank |
2 × 1.5m3 |
Total power
|
290kW |
||
|
10 sets of weighing system |
4 aggregate weigher |
4 × 3000kg |
Total mass |
105t |
|
cement weigher |
1 × 1500kg |
Discharge height |
3.8m |
||
fly ash weigher |
1 × 600kg |
Demission |
57.5 × 27.3 × 19.4m |
||
powdery admixtures weigher |
1 × 200kg |
Weighing precision |
aggregate(sand, stone) |
± 2% |
|
water weighter |
1 × 800kg |
Water and liquid admixtures |
± 1% |
||
Liquid admixtures weighter |
2 × 50kg |
cement |
± 1% |
||
|
Belt conveyor |
Belt width |
1000mm |
fly ash |
± 1% |
|
|
speed |
2m/s |
powdery admixtures |
± 1% |
||
power |
37kW |
|
|
||
