Specifications
1. Rotary airlock valve with Structure is simple,small volume.
2. Convenient install and maintain.
3. Long use life.
4. ISO,TUV,SEW.FLENDER

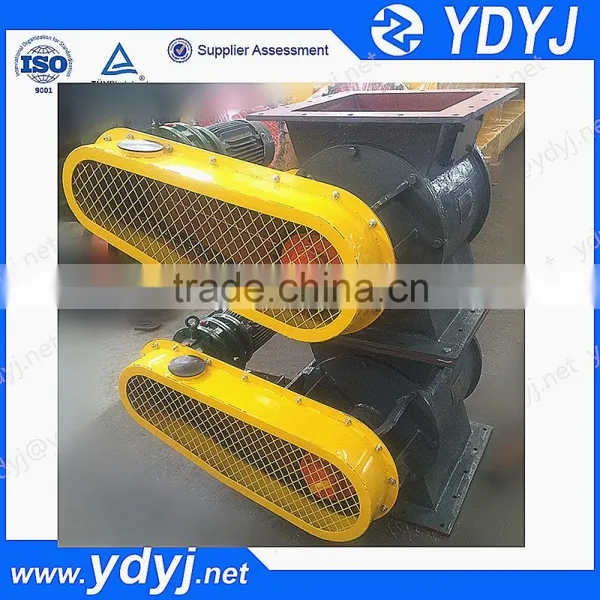

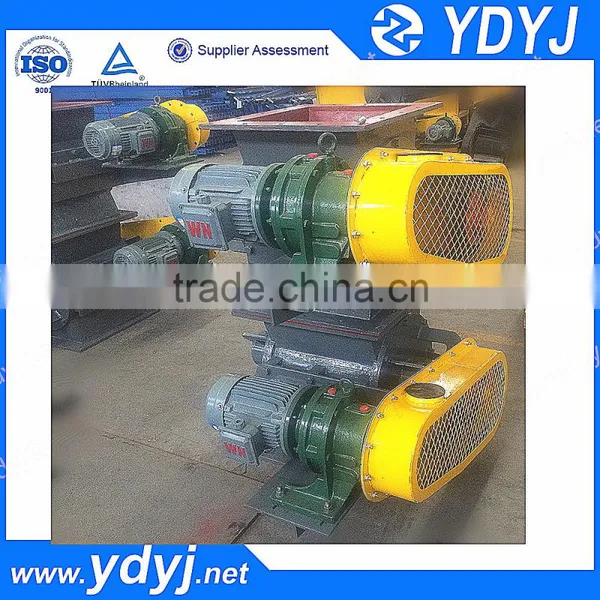

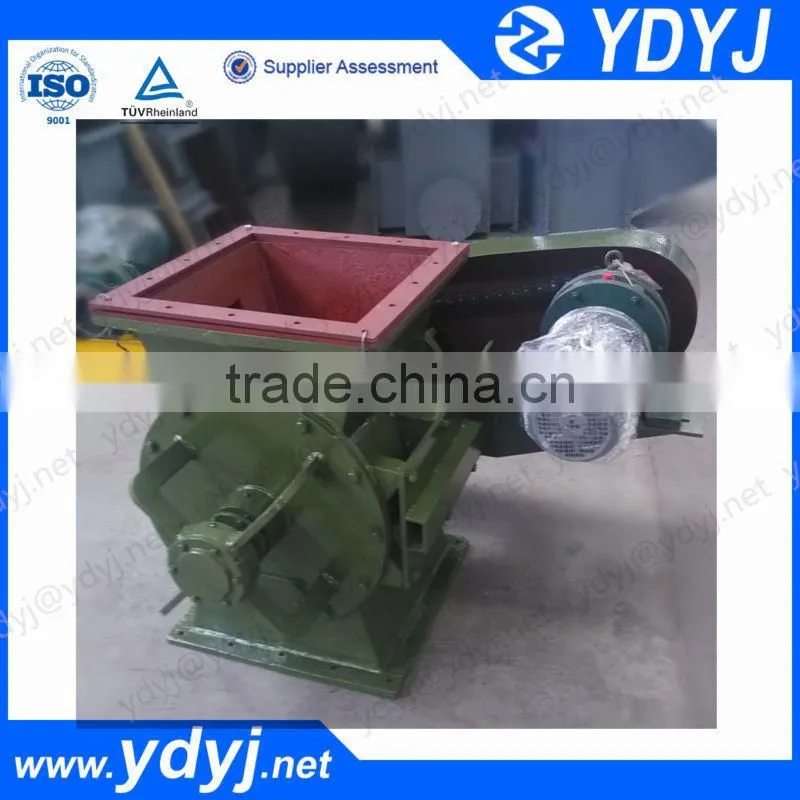

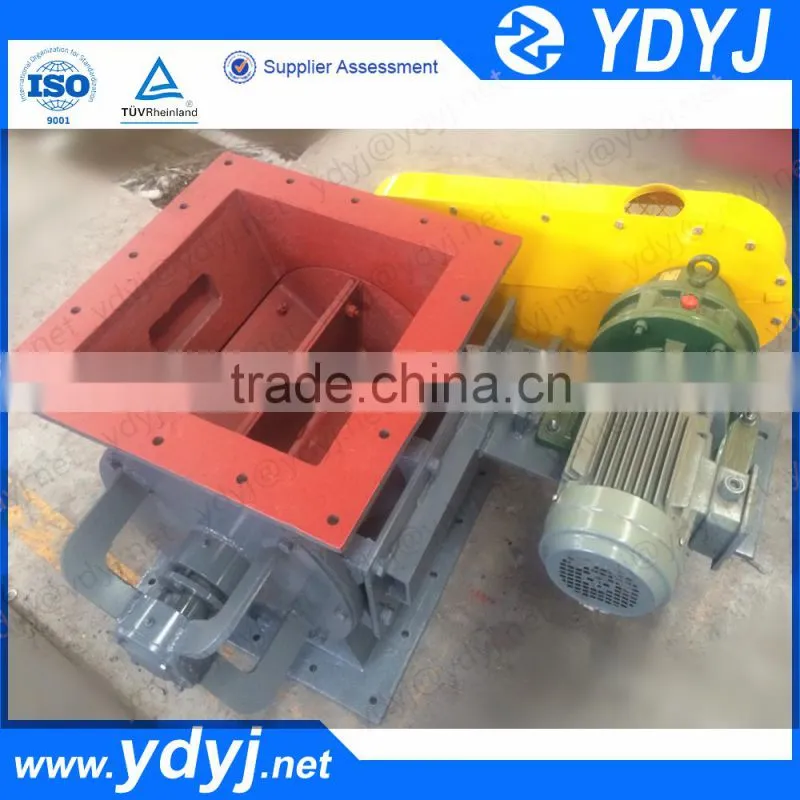

China TX Series Air Lock/rotary airlock valve manufacturer
Operating Principle
Rotary airlock valve is also known as the rotary valve, star feeder, star discharging valve material, star unloader, star valve, rotary valve, ash discharge valve and so on. For uniform discharge or uniform feeding device in a variety of occasions, It is mostly installed under the Silo to discharge.
Main Feature
*It has excellent performance through the pressure seal.
*Rotary airlock feeder (rotary valve) has the function of quantitative feeding.
*We provide 50 ~ 750mm of various size, various materials.
*The various dimensions of the aperture, can provide square or round flanged connection.
*Standard type gear motor drive (or chain driven), can choose frequency controlled .
*Superior performance, durable rotary valve.
Components
Technical parameter
Valve Name |
Rotary airlock Valve |
Model |
TX |
Conveying material |
Powder ,granule or particle |
Volume/ rotation |
5 ~120 |
Capacity(m3/h) |
2 ~150 |
Rotor Speed(r/min) |
20~50 |
Temperature(℃) |
≤500 |
Rotor vane quantity |
6 |
Use condition |
Pneumatic conveying system |
Air tightness |
According to process condition, |
Clearance |
≥0.06mm |
Material |
Stainless steel, carbon steel or cast iron |
Flange shape |
Square or round |
Flange dimension |
Our standard or customized |
Motor |
SEW or China brand |
Power (KW) |
0.55-7.5 |
Drive arrangement |
Straight connected / Chain drive |
Voltage(V) |
380V or customized |
Paint color |
Green, yellow, grey or customized |
Advantage |
Low noise, clog-free, easy installation and remove, small volume. |
Application |
Food, cement construction materials , agriculture, feed industry ,chemical industry ,iron and steel industry ,gypsum factories ,environmental protection ,waste water treatment , plastics PVC PP PE industry, pulp and paper, dams, hydroelectric plant sand pumping stations ,mining/slurry, air separation, etc. |
Site picture
Please tell us the following technical parameters before inquiry:
Q: What 's the material will be conveyed?please tell us more material features.
Q: What's the up and lower flange dimension of rotary valve?
Q:What's the conveying capacity do you want?
