Description
2.Low noise, strong adaptability and easy operation.
3. Easy for maintenance and long service life.
4.ISO,TUV

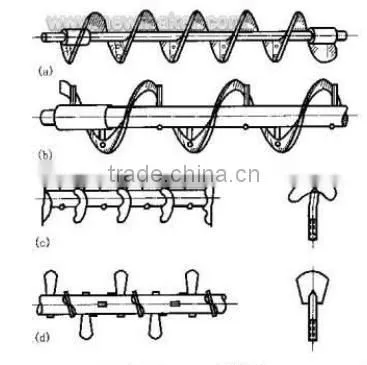

1.Full face type spiral auger
Full face type spiral auger is suitable for loose material, this type is fixed device and can't easily be adjusted.
2.many headed banded spiral auger
This type of screw is composed of two or more different diameter banded screw blade, banded screw blade has the left blade and the right blade, a blade set in another, connected with a tube or shaft through a rigid hanger. A banded blade makes the material moves forward, another banded blade makes the material moving backward, so that the material can be absolute and fully mixed.

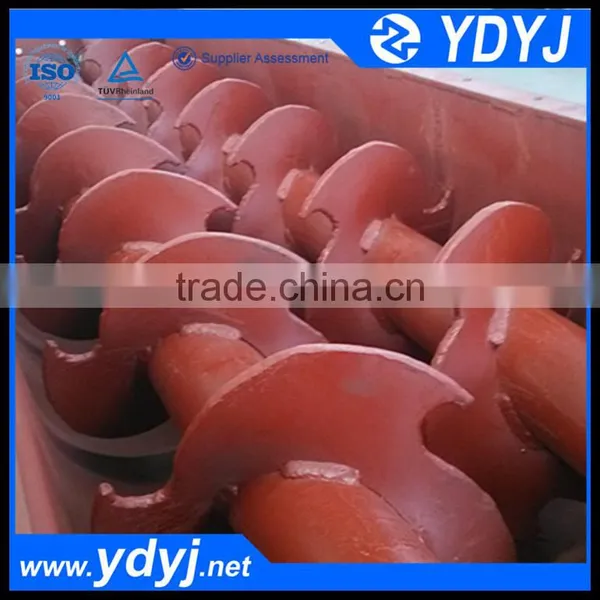

3.Crescent moon spiral auger
Crescent type spiral auger has a strong function of stirring and loose material, it is suitable for conveying powder and agglomerate material.
4.Leaf screw blade
Leaf spiral auger can be adjusted to a certain angle so that the material can be mixed completely, and can control the flow of material.
spiral auger function
Spiral auger is used for conveying dry cement to solve, ore, coal, chemical fertilizers and other easily flying powdery material surrounding environment seriously affect has an absolute advantage, at the same time spiral feeder in the transportation of materials can also complete mixing, stirring and cooling operations, it is suitable for shipping truck and warehouse of various material and Conveying powder particles, such as industry,Power plant, grain or oil,chemical, metallurgical, paper making and so on.Such as materials,cement, concrete, coal dust, soda ash, flour, grain, paper pulp, etc.
Technical Parameters
Type |
LS100 |
LS160 |
LS200 |
LS250 |
LS315 |
LS400 |
LS500 |
LS630 |
LS800 |
LS1000 |
Screw diameter(mm) |
100 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
Pitch (mm) |
100 |
160 |
200 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
Rotational speed (rpm) |
71-140 |
56-112 |
50-100 |
45-90 |
40-80 |
36-71 |
32-63 |
25-50 |
20-40 |
16-32 |
Capacity (t/h) |
1.1-2.2 |
3.1-7 |
6.31-3 |
11-22 |
16-34 |
31-62 |
50-98 |
77-140 |
126-200 |
140-280 |
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Please tell us the following technical parameters before ordering:
Q: What 's the material will be conveyed?please tell us more material features.
Q:What's the conveying length between the inlet with outlet?
Q:What's the conveying capacity do you want?
