pini kay briquette machine
Application of pini kay briquette machine
pini kay briquette machine is used for making coal fines / ash / dust into briquettes. Also fit for pressing coke fines, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, cast iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder, ferrosilicon powder, and phospho gypsum powder, nickel alloy, blast furnace ash, converter dust, coal gangue, Kaolin clay, MgO, NPK, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc. into briquettes. The briquettes can be designed different shape & size.
Introduction of pini kay briquette machine
The pini kay briquette machine is a kind of moulding equipment which is used for powder materials . As for the mineral power, pini kay briquette machine can press many kinds of mineral power into pillow or oval shape ,and the finished products can be put into the furnace to make mineral. what's more ,the finished balls can drop down for 2 meter's height and won't be broken and enjoys high heat intensity and cold strength .
Working principle of pini kay briquette machine:
This series of pini kay briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

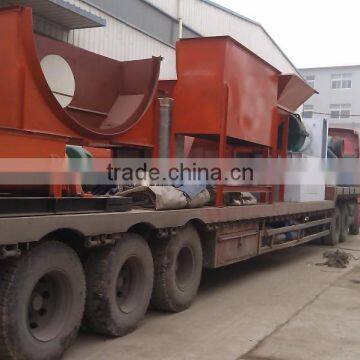

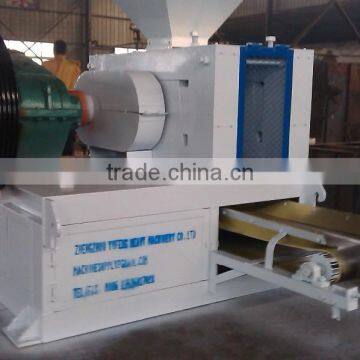

Commissiong photo of pini kay briquette machine
Technical parameters of pini kay briquette machine
| Model | Roller Size(mm) | Rotary Speed of main shaft(r/min) | Power(kw) | Capactiy(t/h) | Roller Material |
| YQ290 | 290*200 | 14-16 | 5.5 | 0.9-1.3 | 65Mn / high-chromium alloy / Nine chromium two molybdenum |
| YQ360 | 360*200 | 14-16 | 7.5 | 1.5-2.5 | |
| YQ400 | 400*250 | 14-16 | 7.5 | 2.8-3.5 | |
| YQ430 | 430*250 | 14-16 | 11 | 3.5-4.0 | |
| YQ500 | 500*300 | 12-14 | 15-22 | 4.5-5.5 | |
| YQ650 | 650*300 | 12-14 | 30-45 | 7.5-8.0 | |
| YQ750 | 750*350 | 10-12 | 55-75 | 10-13 | |
| YQ850 | 850*350 | 9-11 | 90-110 | 14-16 | |
| YQ1000 | 1000*350 | 9-11 | 110-132 | 16-18 | |
| Notes | 1. The capacity designed as material density 1t/m3 | ||||
| 2. We can change the width of roller with different kinds of materials. | |||||
| 3. If you have special requirement for the roller materials please tell us. | |||||
Finished product photos of pini kay briquette machine for your reference:
