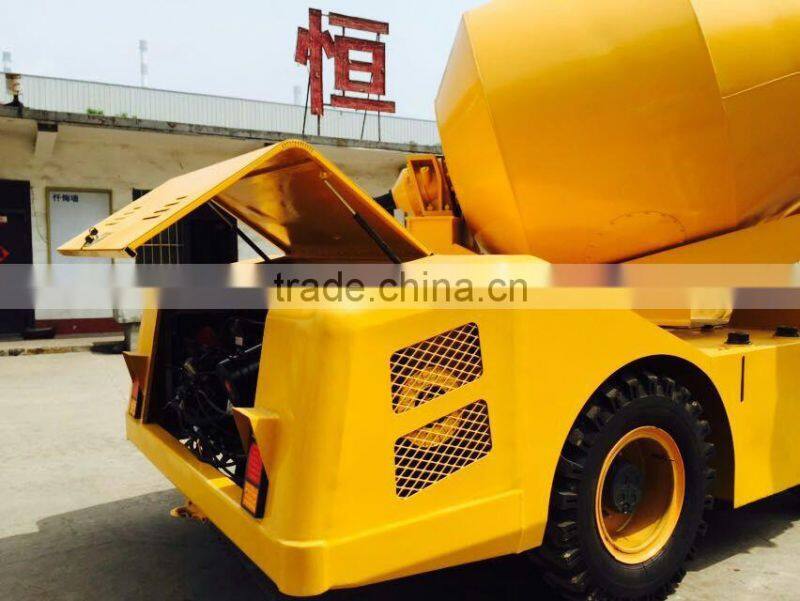

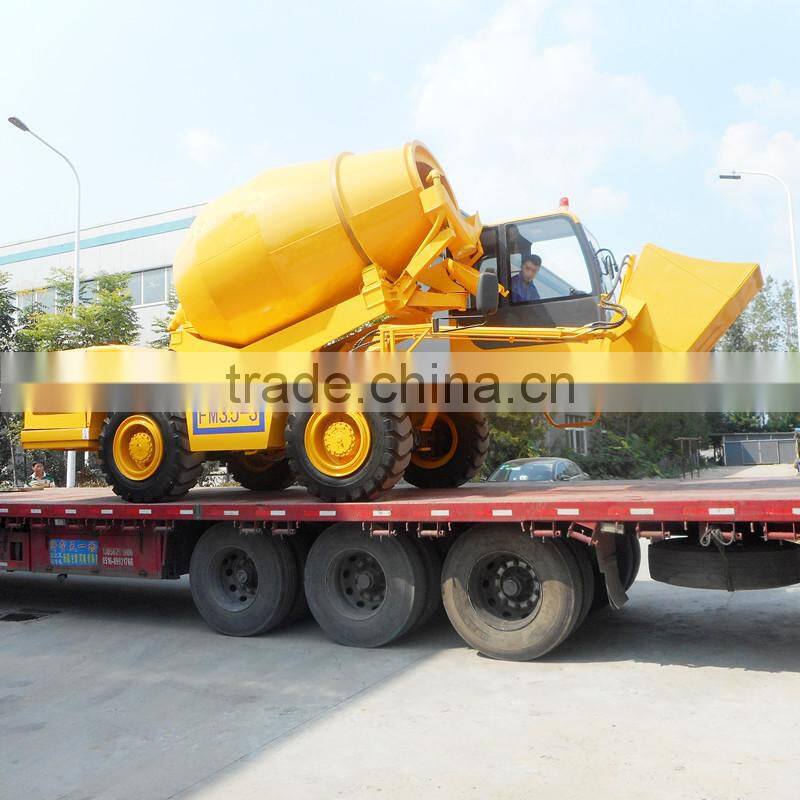

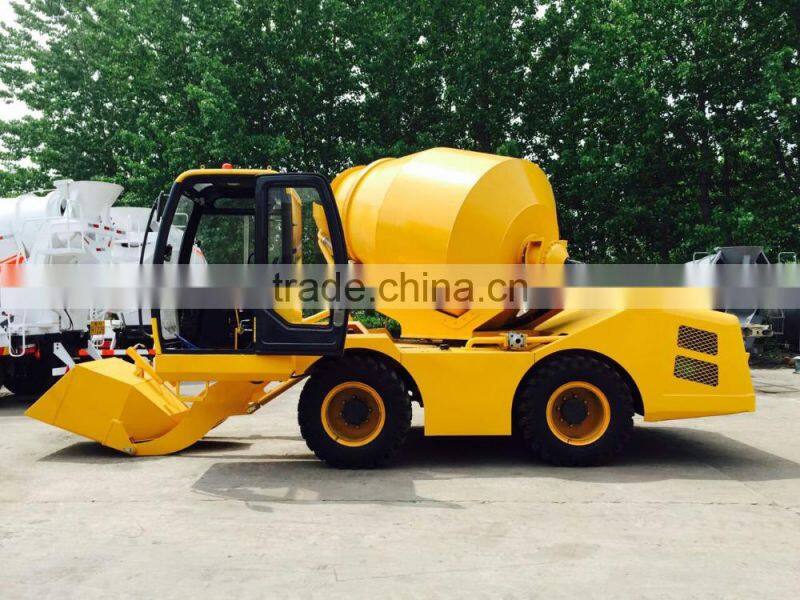

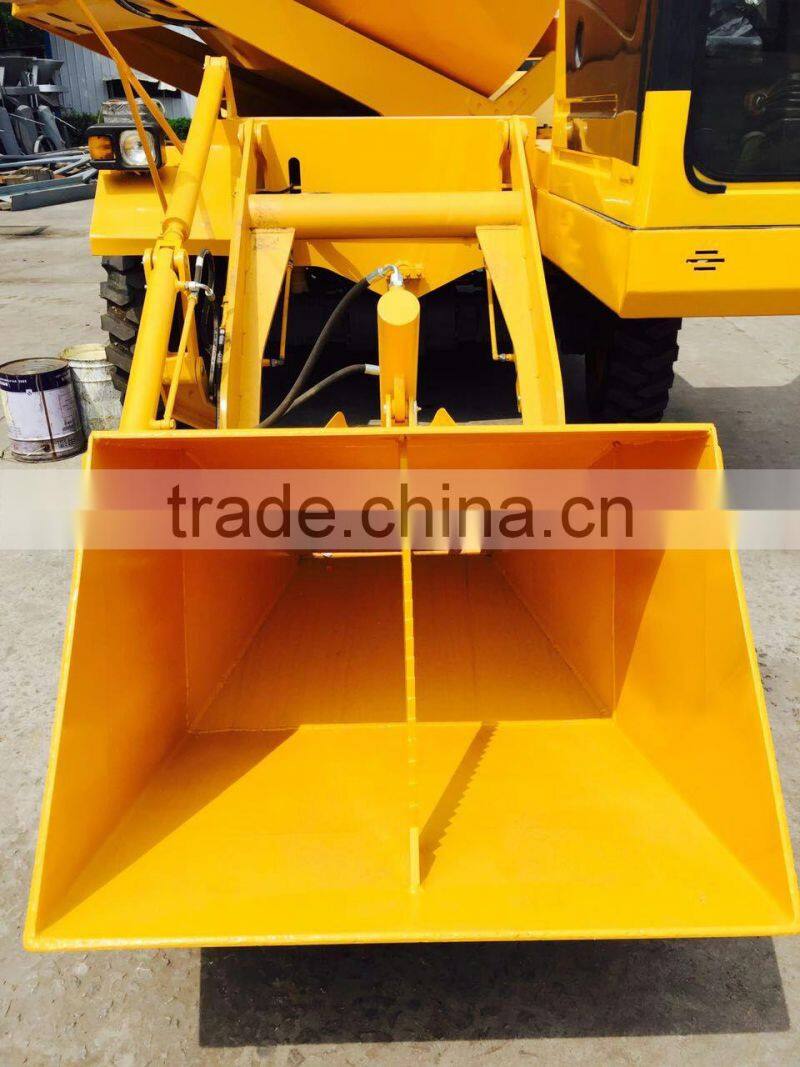

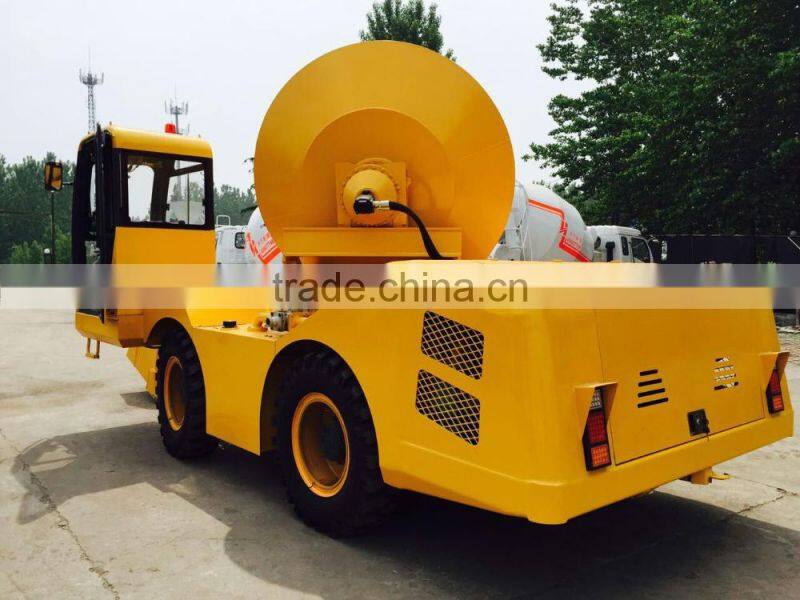

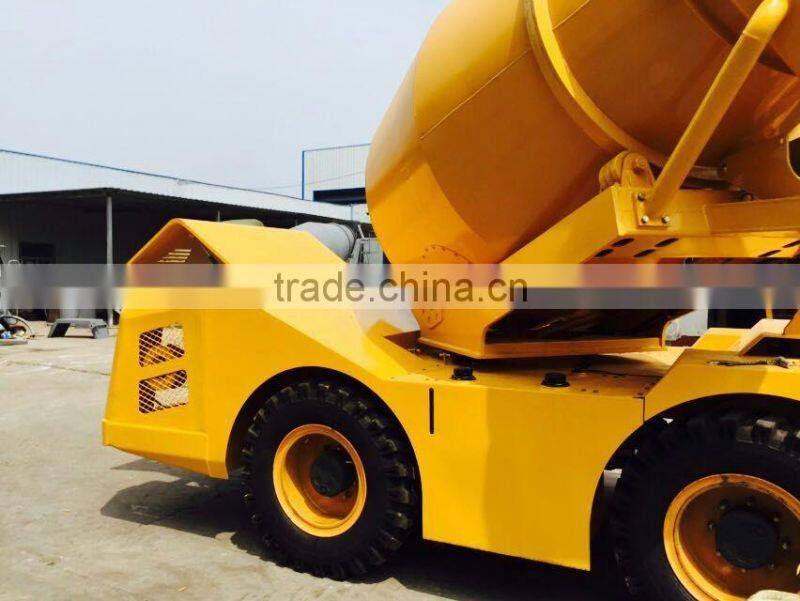

Hot Sale! Mobile Concrete Batching Vehicle with Self-loading Function
3m3 portable concrete mixer with loading device for sale.
Self-loading aggregate, cement and water, mix and transport.
Our product is the top-choice for the concrete transporation for rural construction,urban construction,tunnel,airport,seaport,high-speed rail,beam field,bridge construction projects and so on.
Vehicle | Curb weight | kg | 6250 | |
Drive |
| 4 wheels | ||
Steering | mm | 4 wheel steering | ||
Tyre | mm | 9.00-20 | ||
Working speed | km/h | 0-9 | ||
Gradient | ° | 15 | ||
Dimension | (L*W*H) mm | 6700x2400x3100 | ||
Gradeability | % | 24 | ||
Minimum turning diameter | m | 8 | ||
Maximum travelling speed | km/h | 24 | ||
Maximum torque | N.m/r/min | 450/1500-1700 | ||
Engine | Model | / | Perkins 1104D-44TA | |
Form Direct injection four stroke water cooled turbocharged | ||||
Power | kw/r/min | 81/2300 | ||
Emission | L | 4.58 | ||
Mixing drum | Geometrical volume | m3 | 3.5 | |
Mixing capacity | m3 | 2.5 | ||
Inclined angle | ° | 16 | ||
Feeding speed | m3/min | 1.5 | ||
Discharging speed | m3/min | 1 | ||
Remnant rate | % | ≤1 | ||
Concrete Slump | mm | 70-260 | ||
Hydraulic system | Hydraulic pump |
| CBF-32 | |
Hydraulic motor |
| BMS-100 Rexroth | ||
Speed reducer |
| HJ220 | ||
Water supply | Water tank capacity | L | 450 | |
Supply method |
| Hydraulic driven water pump | ||
- We have our own factory can provide stability quality, and also we can offer the most reasonable prices.
- We have our own professional sales teams who have rich experiences on the international trade and good technical knowledges.
- We have our own engineers who can install the mahines in abroad for the customers.
