Chinese Construction Elevator & Building Equipment Supplier

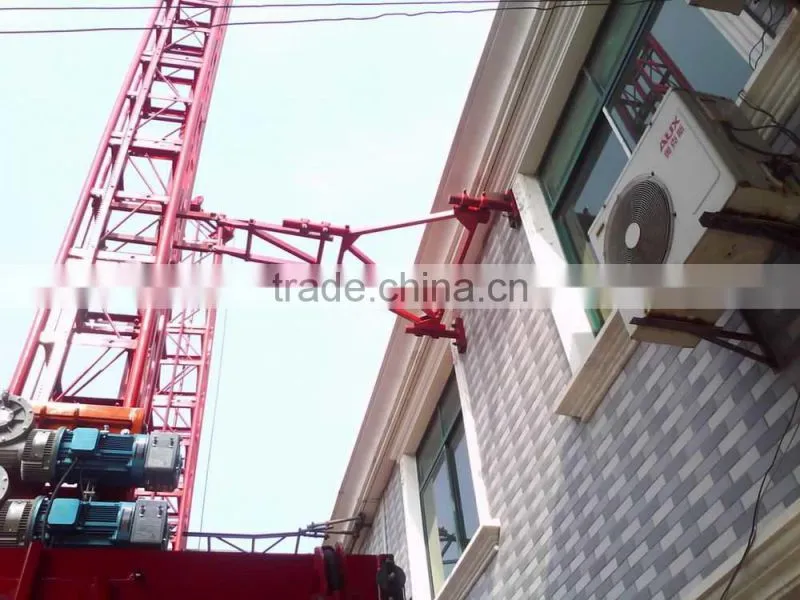

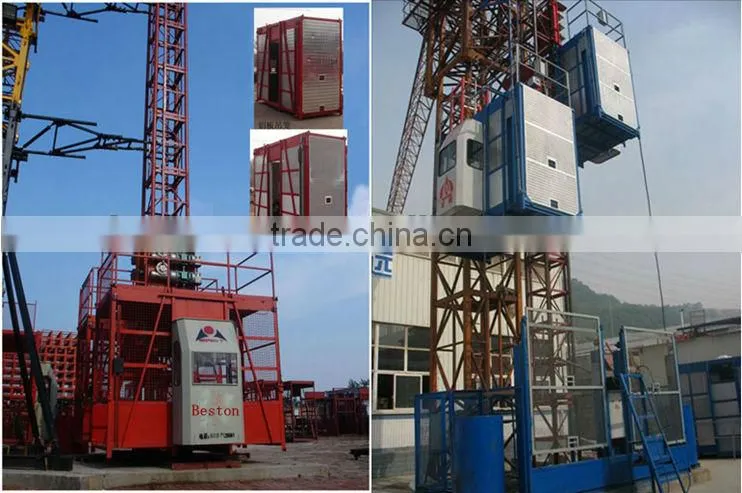

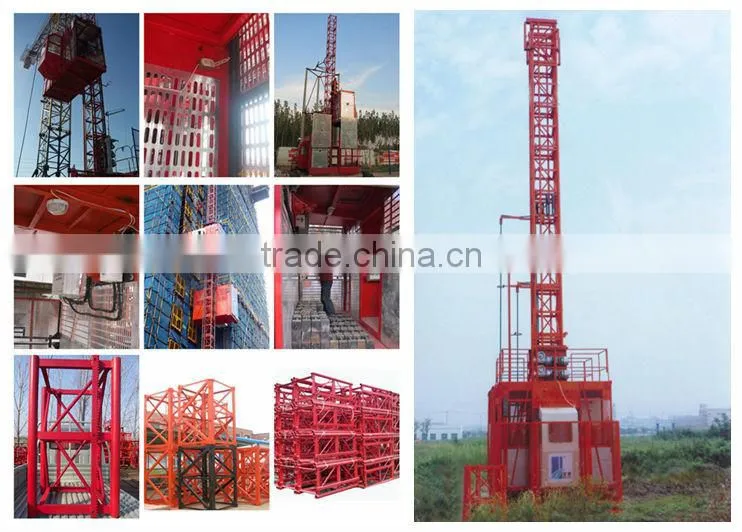

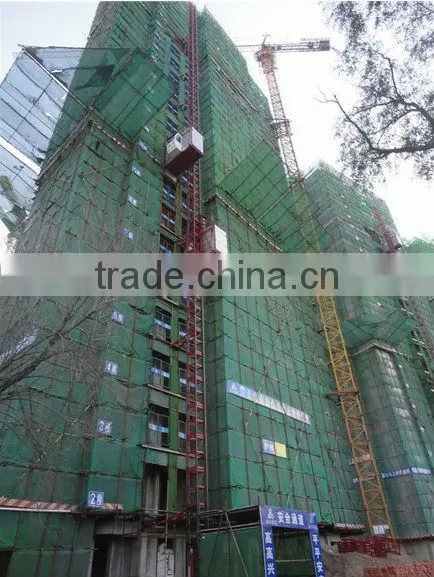

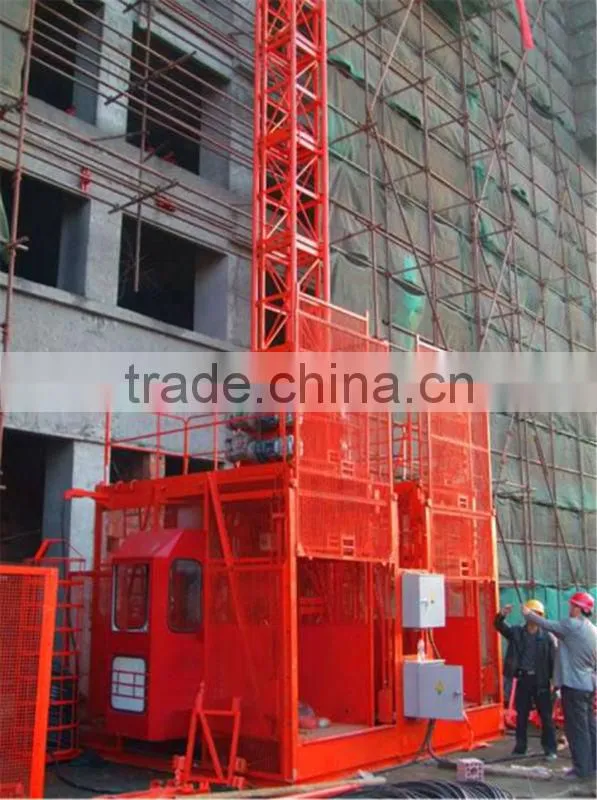

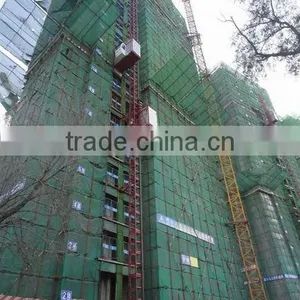

SC series construction elevator , which is widely used to vertical transport personnel and materials .This product is of reasonable design, steady structure, stable performance, complete safe device, easy instillation and convenient maintenance, etc. adjust to meshing gear and rack, external type, three transmission , rated lifting capacity is 2 tons , and biggest hoisting height is 150 meters . This machine is equipped with a national patent technology for safety device, if falling can brake automatically , the top drive unit equipped on the cage, safe and reliable, and it is convenient to maintenance . The machine's hoisting height up to 150 meters. This machine is widely used in construction, such as industrial and civil construction, bridge construction, underground construction, large chimney construction and shipbuilding and other places, suitable for vertical transport materials and personnel, as a permanent or semi-permanent elevator can also be used in warehouses, towers and other places.

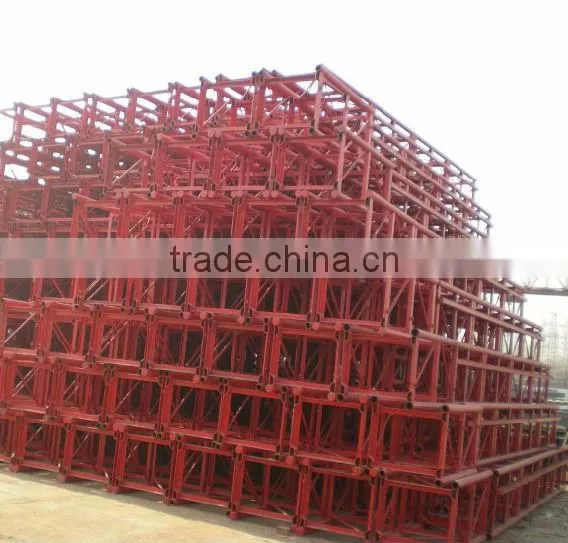

1.Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of
surface painting is outstanding.

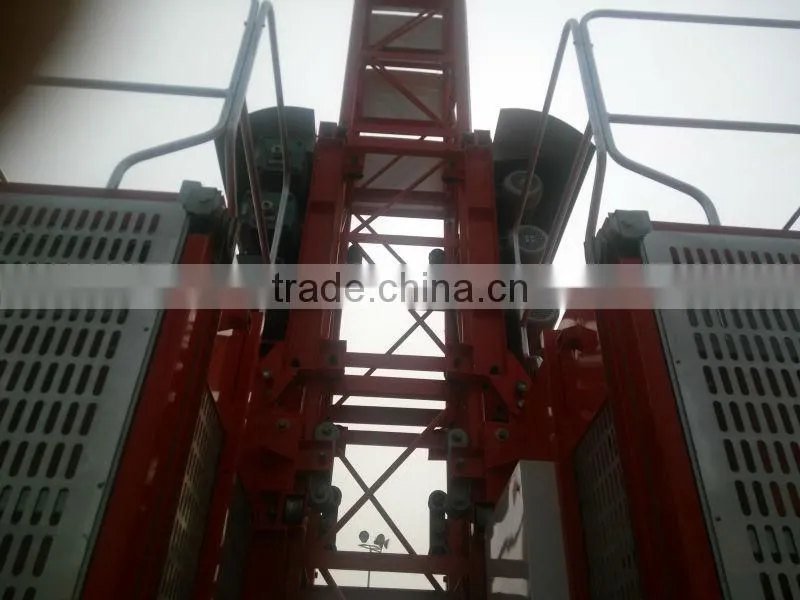

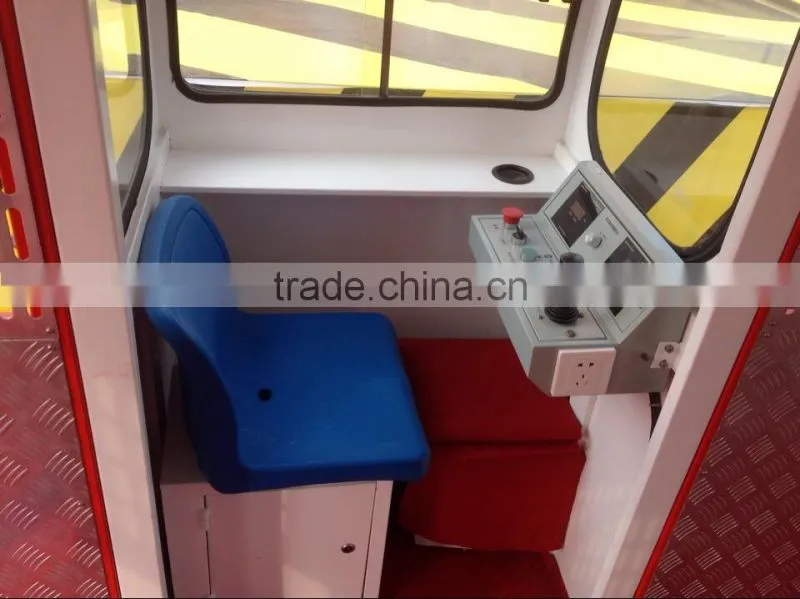

3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched
aluminum plate. The suspension cage is lightweight and artistic in appearance.
4. Transmission mechanism supplied by the professional manufacturer has high efficiency, long
service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices
ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive
downward movement of the cage, preventing and eliminating accidents.
6. Frequency conversional construction elevator is safe, stable and comfortable. Starting electricity
is smaller than working electricity, energy-saving and high efficient.
7. The product can be customized according to customers'requirements (drawing, specifications
and so on )
| haracteristics | Model | Loading capacity | Lifting Speed | Motor Power | |
| Doble Cabin | Low-speed | SC200/200D | 2x2000kg | 0-33m/mim | 2x(3x11kw) |
| SC100/100D | 2x1000kg | 0-33m/mim | 2x(2x11kw) | ||
| Mid-speed | SC200/200Z | 2x2000kg | 0-60m/min | 2x(3x11kw) | |
| SC100/100Z | 2x1000kg | 0-60m/min | 2x(2x11kw) | ||
| Single Cabin | Low-speed | SC200D | 2000kg | 0-33m/mim | 3x11kw |
| SC100D | 1000kg | 0-33m/mim | 2x11kw | ||
| Mid-speed | SC200Z | 2000kg | 0-60m/min | 3x11kw | |
| SC100Z | 1000kg | 0-60m/min | 2x11kw | ||
| Construction hoist without inverter | |||||
| Characteristics | Model | Loading capacity | Lifting Speed | Motor Power | |
| Doble Cabin | SC200/200 | 2x2000kg | 33m/min | 2x(3x11kw) | |
| SC150/150 | 2x1500kg | 33m/min | 2x(2x15kw) | ||
| SC100/100 | 2x1000kg | 33m/min | 2x(2x11kw) | ||
| Single Cabin | SC200 | 2x2000kg | 33m/min | 3x11kw | |
| SC150 | 2x1500kg | 33m/min | 3x15kw | ||
| SC100 | 2x1000kg | 33m/min | 2x11kw | ||
We have professional customer service team 24 hours every day and 7 days every week online to solve questions you may have. We have a professional team of engineers, which will conscientious help you to solve all technical problems and we will send our engineers to your country offer operator training for your workers if you need , machines installing and debugging , spare parts supply ,etc.
We are 24-hours online ,waiting for your consult and questions ,
welcome your suggestions !
