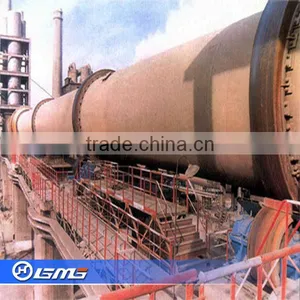

300tpd Cement Plant &factory Calcining Machine 2.5*44M Rotary Kiln
US$ 100,000 - 4,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
GMG rotary kiln
Model Number:
GMG Rotary Kiln
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Calcination Equipment Rotary Kiln Calcining Bauxite,coal, Dolomite and Ceramic ProppantsUS$ 100,000 - 4,000,000MOQ: 1 Set -
600tpd Rotary Kiln/calcining Kiln of Oil Gas Coal BurnerUS$ 100,000 - 4,000,000MOQ: 1 Set
-
6000tpd Rotary Kiln for Cement Production Line Cement Industry Rotary Kiln PriceUS$ 100,000 - 4,000,000MOQ: 1 Set
-
4.8x74m Cement Rotary KilnUS$ 1 - 1,668,650MOQ: 1 Set
-
4.2x60m Cement Rotary KilnUS$ 1 - 1,143,055MOQ: 1 Set
Condition
New
Brand Name
GMG rotary kiln
Model Number
GMG Rotary Kiln
Voltage
440V
Dimension(L*W*H)
2.5*44M
Certification
CE
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. rotary kiln2.easy maintenance, installation
3.high operation rate
4.low heat consumption
Specifications:
1. automatic operation
2. wide usage
3. best after-service and competitive price
4. ce certification
5.turnkey project

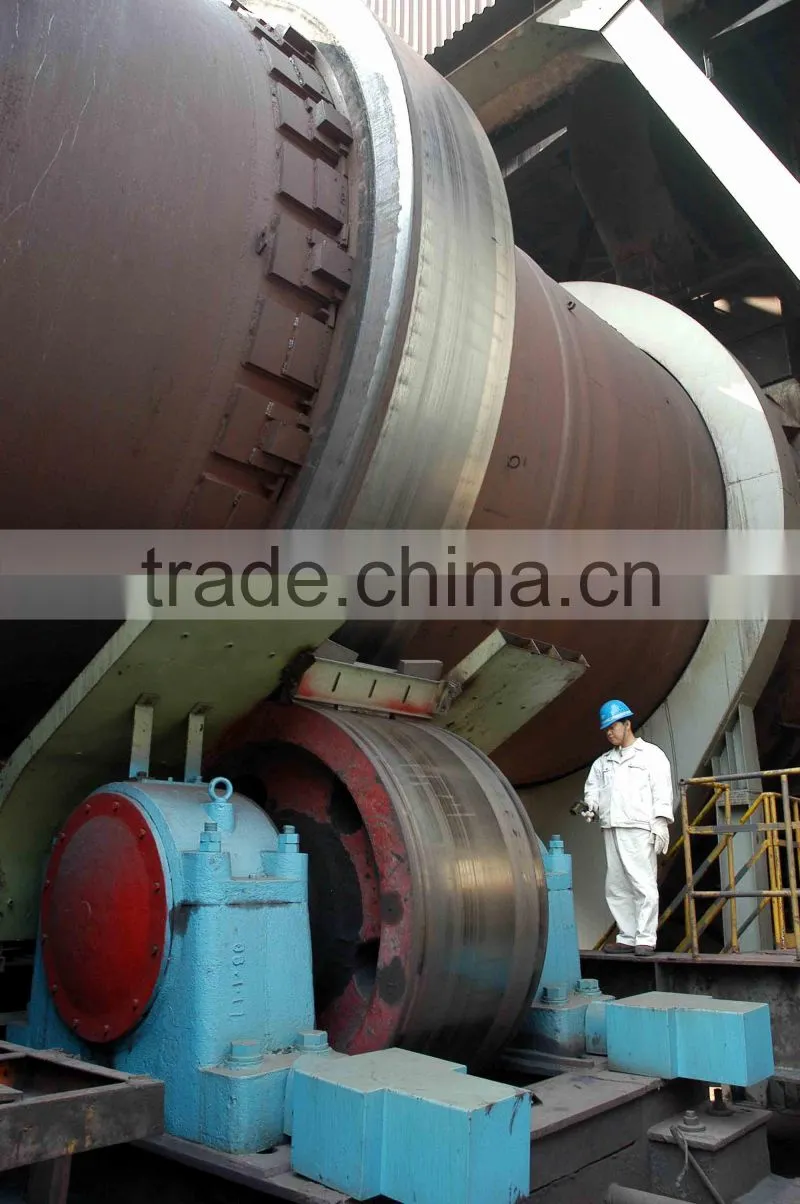

As the main equipment in both of the cement clinker dry and wet process production lines, this cement rotary kiln is widely used in metallurgy field, chemical industry, building refractory material sector, environmental protection field, and so on. It mainly consists of cylinder body, supporting device, supporting device with catch wheel, driving device, movable kiln head, sealing equipment of the kiln end, coal spraying pipe, etc.

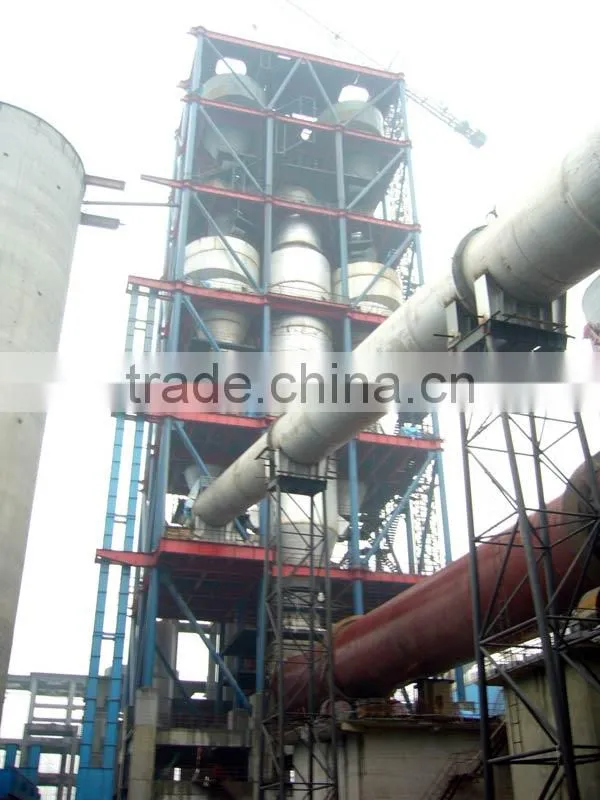

Cement rotary kiln is used in cement plant, cement production line, cement clinker grinding station/plant to calcine the cement clinker, the rotary calcination kiln system includes the burner, fan, preheater, cooler, dust collector and bucket elevator etc.
Technical Data of clinker rotary kiln,cement clinker rotary kilns with burner for cement plant:
| Specification | Capacity(t/d) | Incline of body(°) | Speed(r/min) | Main motor(kw) | Remarks |
| Φ2.5*60 | 168 | 3.5 | 0.516-1.549 | 75 | Alumyte-alumina forge kiln |
| Φ3*48 | 700 | 3.5 | 0.726-3.63 | 110 | Kiln with 5-stage cyclone precalciner |
| Φ3*60 | 3.5 | 0.492-1.476 | 75 | Alumyte-alumina forge kiln |
|
| Φ3*100.94 | 450 | 4 | 0.3-1.503 | 90 | Multiple-drum cooling |
| Φ3.2*46 | 1000 | 3.5 | 0.36-3.57 | 160 | kiln with preheater precalcine |
| Φ3.2*52 | 1200 | 3.5 | 0.343-0.34 | 125 | kiln with preheater |
| Φ3.3*50 | 1300 | 3.5 | 0.676-3.38 | 160 | kiln with plateau suspension preheater |
| Φ3.3*52 | 1300 | 3.5 | 0.266-2.66 | 125 | kiln with preheater precalcine |
| Φ3.5*54 | 1500 | 3.5 | 0.55-3.4 | 220 | kiln with preheater precalcine |
| Φ3.6*70 | 1800 | 3.5 | 0.25-1.25 | 125 | Generating kiln for using ofterheat |
| Φ4*60 | 2500 | 3.5 | 0.396-3.96 | 315 | kiln with preheater precalcine |
| Φ4.15*58 | 5 | 0.35-0.7 | 110 | Zinc leaching(calcine rotary kiln) | |
| Φ4.2*60 | 3000 | 4 | 0.4-3.98 | 375 | |
| Φ4.3*60 | 3500 | 3.5 | 0.396-3.96 | 375 | kiln with preheater precalcine |
| Φ4.5*66 | 4000 | 3.5 | 0.41-4.1 | 560 | kiln with preheater precalcine |
| Φ4.8*74 | 5000 | 4 | 0.396-3.96 | 630 | kiln with preheater precalcine |
| Φ5.0*74 | 6000 | 4 | 0.35-4 | 710 | kiln with preheater precalcine |
| Φ5.6*87 | 8000 | 4 | Max4.23 | 800 | kiln with preheater precalcine |
| Φ6.0*95 | 10000 | 4 | Max5 | 950*2 | kiln with preheater precalcine |
Note: parameters in the form are only for reference, and specific ones should refer to the contract.

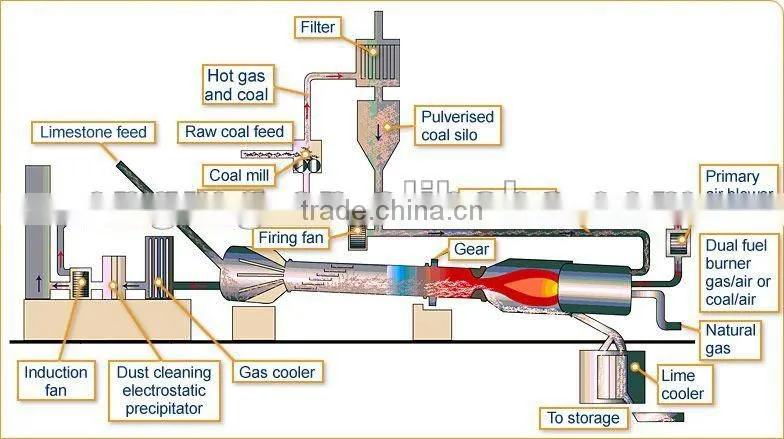

Working principle of rotary kiln:

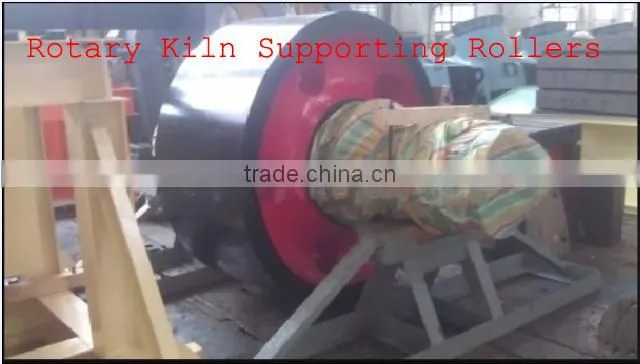

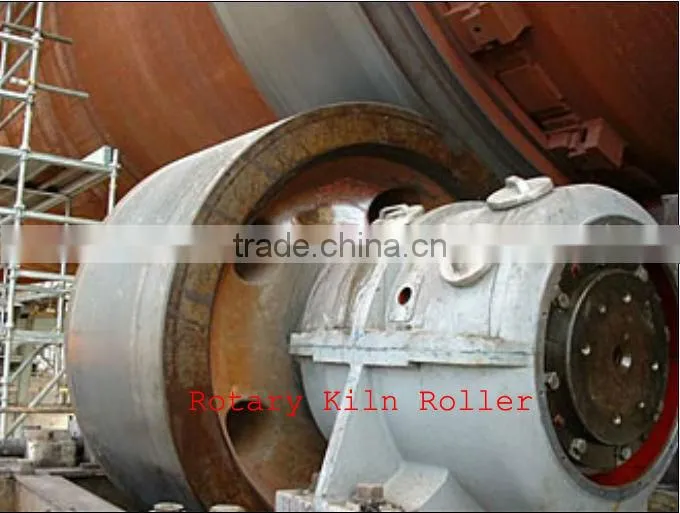

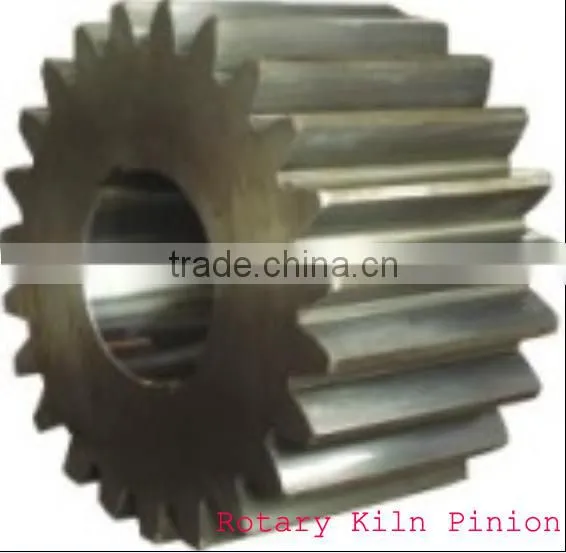

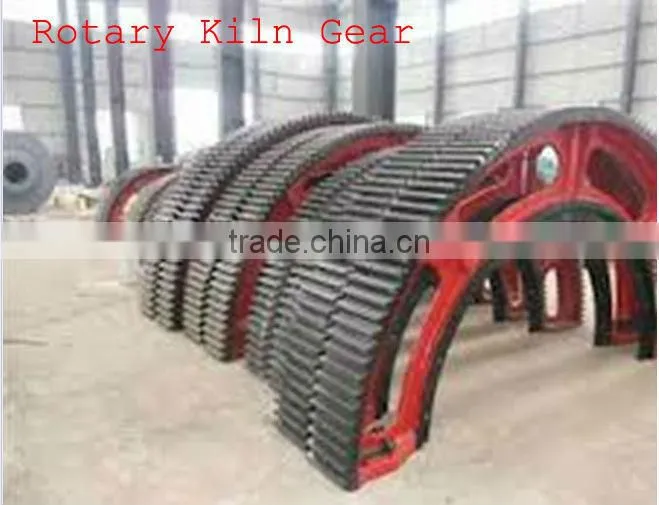

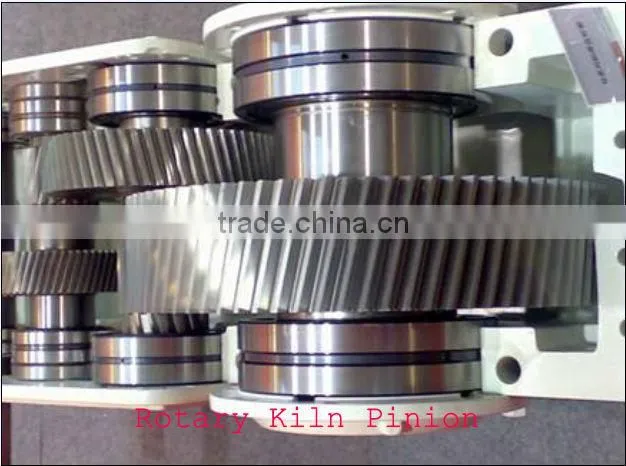

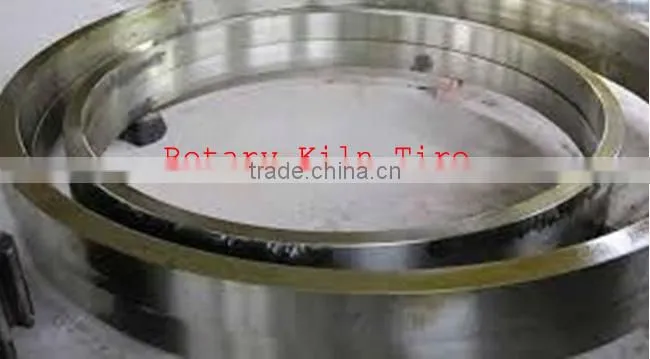

Spare parts of cement rotary calcination kiln :

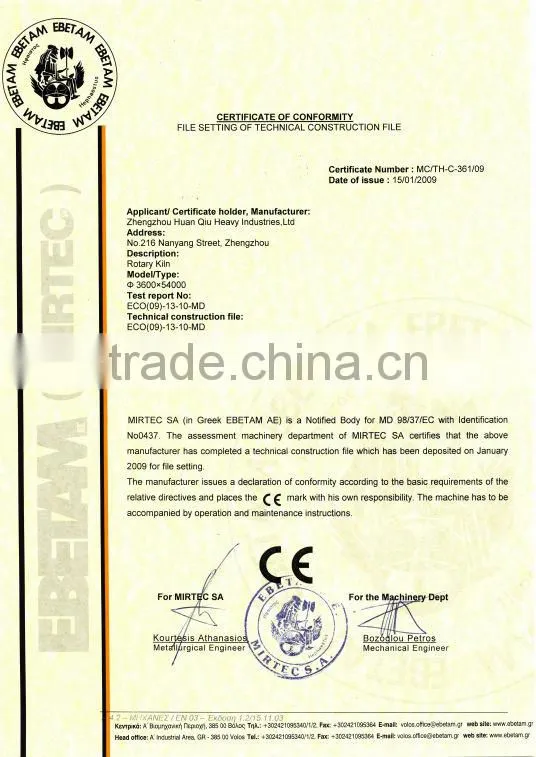

Rotary Kiln Certification:
